3种辅助冲洗方法对离体牙弯曲根管内壁的清洁效果

doi:10.7518/hxkq.2023.2023062

华西口腔医学杂志 ›› 2023, Vol. 41 ›› Issue (5): 554-562.doi: 10.7518/hxkq.2023.2023062

3种辅助冲洗方法对离体牙弯曲根管内壁的清洁效果

温超颖¹^,²(), 左雯鑫³, 罗文¹^,², 何飞²()

^1.暨南大学口腔医学院口腔医学系，广州 510632
^2.深圳市人民医院（暨南大学第二临床医学院，南方科技大学第一附属医院）口腔科，深圳 518020
^3.香港大学深圳医院口腔医学部，深圳 518053

收稿日期:2023-02-25 修回日期:2023-05-26 出版日期:2023-10-01 发布日期:2023-10-08
通讯作者: 何飞 E-mail:1838615987@qq.com;hefeixqkq@aliyun.com
作者简介:温超颖，医师，学士，E-mail：1838615987@qq.com
基金资助:
深圳市自然科学基金(JCYJ20180228164611173)

Effectiveness of three auxiliary irrigation methods for cleaning the internal walls of root canals of curved isolated teeth

Wen Chaoying¹^,²(), Zuo Wenxin³, Luo Wen¹^,², He Fei²()

^1.School of Stomatology, Jinan University, Guangzhou 510632, China
^2.Dept. of Stomatology, Shenzhen People’s Hospital (The Second Clinical Medical College, Jinan University; The First Affiliated Hospital, Southern University of Science and Technology), Shenzhen 518020, China
^3.Dept. of Stomatology, The University of Hong Kong Shenzhen Hospital, Shenzhen 518053, China

Received:2023-02-25 Revised:2023-05-26 Online:2023-10-01 Published:2023-10-08
Contact: He Fei E-mail:1838615987@qq.com;hefeixqkq@aliyun.com
Supported by:
The Science and Technology Project of Shenzhen Municipality(JCYJ20180228164611173)

摘要/Abstract

摘要：

目的比较超声、声波和激光3种辅助冲洗方法对弯曲根管内壁的清洁效果。方法 92颗具有弯曲度为20°~40°独立根管的磨牙，标准化预备至04 25#，龙胆紫溶液染色72 h。52个样本随机分为4组（n=13）：注射器组（对照组）、超声组、声波组及激光组，分别进行终末冲洗。每组10个样本垂直于牙长轴分为弯曲上段、弯曲段及根尖段，体视显微镜及Image J软件测量各部位冲洗液渗入牙本质的深度。每组剩余3个样本沿牙体长轴劈开，扫描电子显微镜检测玷污层情况。SPSS 26.0软件进行统计学分析，筛选促渗透作用最佳的冲洗方法。40个样本使用筛选出的方法进行终末冲洗，根据冲洗时间随机分为4组（n=10）：10、20、30、40 s，检测冲洗液渗入深度。结果弯曲上段，各实验组与对照组冲洗液渗入的平均深度无显著差异（P>0.05）。玷污层评分，激光组显著低于对照组和声波组（P<0.01）。弯曲段，超声组冲洗液渗入平均深度明显大于对照组（P<0.05）；各实验组玷污层评分均低于对照组（P<0.05）。根尖段，超声组和激光组冲洗液渗入平均深度均大于对照组（P<0.05）。玷污层评分，激光组显著低于其他组（P<0.05）。根尖段，冲洗液渗入深度随超声冲洗时间延长而增加。结论弯曲根管内超声和激光辅助方法能很好地促冲洗液渗入牙本质小管，尤其是根尖段。弯曲根管中激光辅助冲洗能有效去除玷污层。

关键词: 渗透, 玷污层, 被动超声, EDDY, 激光, 弯曲根管

Abstract:

Objective This study aimed to compare the effectiveness of ultrasound and acoustic and laser cleaning of curved root canals. Methods A total of 92 molars with independent root canals with a curvature of 20°-40° were prepared and standardized at 04 25# and stained with gentian violet solution for 72 h. Among them, 52 were randomly divi-ded into four groups for final rinsing (n=13): NI group, PUI group, EDDY group, and PIPS group. Ten samples in each group were cut horizontally along the long axis perpendicular to the root and divided into curved upper, curved, and apical segments. Images were taken with a stereomicroscope and Image J measurements were taken to calculate the depth of rinse penetration. The remaining three samples from each group were split along the long axis of the dentin, photographed by scanning electron microscope to record the dentin tubule exposure and staining layer, and scored for staining layer by double-blind method. SPSS 26.0 software was used to perform statistical analysis and select the best flushing method. An extra 40 samples were randomly divided into four groups for detection of flushing fluid penetration depth (n=10): 10, 20, 30, and 40 s. Results In the upper part, the mean depth of infiltration was not significantly different between the experimental and control groups (P>0.05). The PIPS group had a significantly lower smear layer score than the control group and the EDDY group (P<0.01). In the curved segment, the mean depth of infiltration was significantly greater in the PUI group than in the control group (P<0.05); the tarnish layer score was lower in each experimental group than in the control group. At the top, the mean depth of infiltration was greater in the PUI and PIPS groups than in the control group (P<0.05), and the smear layer score was lower in the PIPS group than in the other groups (P<0.05). After the time was changed, the depth of infiltration of PUI increased only in the apical segment as the flushing time increased. Conclusion The PUI and PIPS methods facilitate the penetration of irrigation solution into the dentin canal in curved root canals, especially in the apical segment. The PIPS technique is effective in removing the smear layer in curved root canals.

Key words: permeability, smear layer, passive ultrasound, EDDY, laser, curved root canal

中图分类号:

R 781.05

温超颖, 左雯鑫, 罗文, 何飞. 3种辅助冲洗方法对离体牙弯曲根管内壁的清洁效果[J]. 华西口腔医学杂志, 2023, 41(5): 554-562.

Wen Chaoying, Zuo Wenxin, Luo Wen, He Fei. Effectiveness of three auxiliary irrigation methods for cleaning the internal walls of root canals of curved isolated teeth[J]. West China Journal of Stomatology, 2023, 41(5): 554-562.

图/表 9

图 1

图 2

表 1

图 3

表 2

图 4

图 5

表 3

图 6

参考文献 32

1	王雅丽, 罗丹, 申婷, 等. 不同冲洗方法对粪肠球菌感染根管的抗菌性研究[J]. 中华口腔医学研究杂志(电子版), 2019, 13(4): 204-211.
	Wang YL, Luo D, Shen T, et al. Antibacterial efficacy of different irrigation methods on Enterococcus faecalis infected root canals in vitro [J]. Chin J Stomatol Res Electron Ed, 2019, 13(4): 204-211.
2	Kakoli P, Nandakumar R, Romberg E, et al. The effect of age on bacterial penetration of radicular dentin[J]. J Endod, 2009, 35(1): 78-81.
3	Haupt F, Meinel M, Gunawardana A, et al. Effectiveness of different activated irrigation techniques on debris and smear layer removal from curved root canals: a SEM evaluation[J]. Aust Endod J, 2020, 46(1): 40-46.
4	Violich DR, Chandler NP. The smear layer in endodontics—a review[J]. Int Endod J, 2010, 43(1): 2-15.
5	Chubb DWR. A review of the prognostic value of irrigation on root canal treatment success[J]. Aust Endod J, 2019, 45(1): 5-11.
6	PRIYA V, 邵皎皎, 封菲, 等. 被动超声冲洗对弯曲根管的碎屑清理能力和根管形态的影响[J]. 上海口腔医学, 2022, 31(1): 6-11.
	PRIYA V, Shao JJ, Feng F, et al. Study on the influence of passive ultrasonic irrigation on debris cleaning ability and root canal shape[J]. Shanghai J Stomatol, 2022, 31(1): 6-11.
7	徐程宇, 葛久禹. 辅助根管冲洗器械对根管壁玷污层清理效率体外研究[J]. 中国实用口腔科杂志, 2017, 10(8): 488-492.
	Xu CY, Ge JY. Effectiveness of different irrigant activation protocols on smear layer removal: an in vitro study[J]. Chin J Pract Stomatol, 2017, 10(8): 488-492.
8	丛鑫禹, 薛明. 3种动能冲洗技术对管间峡区内碎屑的清理作用[J]. 华西口腔医学杂志, 2022, 40(5): 554-559.
	Cong XY, Xue M. Evaluation of root-canal isthmus debridement efficacy of 3 kinds of activated irrigation technique[J]. West China J Stomatol, 2022, 40(5): 554-559.
9	Akcay M, Arslan H, Mese M, et al. Effect of photon-initiated photoacoustic streaming, passive ultrasonic, and sonic irrigation techniques on dentinal tubule penetration of irrigation solution: a confocal microscopic study[J]. Clin Oral Investig, 2017, 21(7): 2205-2212.
10	Widbiller M, Rosendahl A, Schlichting R, et al. Impact of endodontic irrigant activation on smear layer removal and surface disintegration of root canal dentine in vitro [J]. Healthcare (Basel), 2023, 11(3): 376.
11	Plotino G, Colangeli M, Özyürek T, et al. Evaluation of smear layer and debris removal by stepwise intraoperative activation (SIA) of sodium hypochlorite[J]. Clin O-ral Investig, 2021, 25(1): 237-245.
12	顾迎新, 朱亚琴, 杜嵘, 等. 两种根管弯曲度测量方法的比较研究[J]. 上海口腔医学, 2003, 12(2): 103-105.
	Gu YX, Zhu YQ, Du R, et al. Study on the reliability of two methods for measurement of root canal curvatures[J]. Shanghai J Stomatol, 2003, 12(2): 103-105.
13	Schneider V, Hantsche H. Electron-micro-probe and elec-tron microscopy scanning studies of electric burns[J]. Beitr Gerichtl Med, 1973, 31: 192-202.
14	Ando N, Hoshino E. Predominant obligate anaerobes invading the deep layers of root canal dentin[J]. Int Endod J, 1990, 23(1): 20-27.
15	Williams S, Goldman M. Penetrability of the smeared layer by a strain of Proteus vulgaris [J]. J Endod, 1985, 11(9): 385-388.
16	Galler KM, Grubmüller V, Schlichting R, et al. Penetration depth of irrigants into root dentine after sonic, ultrasonic and photoacoustic activation[J]. Int Endod J, 2019, 52(8): 1210-1217.
17	陈媛媛, 张文汇, 郭斌, 等. 比较注射冲洗与辅助超声荡洗对根管清洁效果的系统评价[J]. 华西口腔医学杂志, 2015, 32(2): 145-152.
	Chen YY, Zhang WH, Guo B, et al. Cleaning effect of ultrasonic activation as an adjunct to syringe irrigation of root canals: a systematic review[J]. West China J Stomatol, 2015, 32(2): 145-152.
18	Ahmad Ali I, Layous K, Alzoubi H. Evaluating the effectiveness of different irrigant activation techniques in removing the smear layer and opening the dentinal canals: a scanning electron microscopic study[J]. Cureus, 2023, 15(1): e33961.
19	毛姣姣, 林正梅. 根管冲洗方法的研究进展[J]. 国际口腔医学杂志, 2012, 39(5): 635-638.
	Mao JJ, Lin ZM. Research progress on root canal irrigation methodologies[J]. Int J Stomatol, 2012, 39(5): 635-638.
20	Virdee SS, Farnell DJJ, Silva MA, et al. The influence of irrigant activation, concentration and contact time on sodium hypochlorite penetration into root dentine: an ex vivo experiment[J]. Int Endod J, 2020, 53(7): 986-997.
21	Swimberghe RCD, Buyse R, Meire MA, et al. Efficacy of different irrigation technique in simulated curved root canals[J]. Lasers Med Sci, 2021, 36(6): 1317-1322.
22	Miletić I, Chieffi N, Rengo C, et al. Effect of photon induced photoacoustic streaming (PIPS) on bond strength to dentine of two root canal filling materials[J]. Lasers Surg Med, 2016, 48(10): 951-954.
23	肖敏, 刘瑾, 范晓敏, 等. 利用扫描电子显微镜分析声波辅助根管荡洗作用时间对玷污层清理效果的影响[J]. 口腔医学, 2023, 43(1): 46-51.
	Xiao M, Liu J, Fan XM, et al. The effect of sonic activated device used for different time on intracanal smear layer removal: an SEM analysis[J]. Stomatology, 2023, 43(1): 46-51.
24	Uslu G, Gündoğar M, Üngör M, et al. Investigation of the effectiveness of sonic, ultrasonic and new laser-assisted irrigation activation methods on smear removal and tubular penetration[J]. Lasers Med Sci, 2023, 38(1): 30.
25	Shi L, Wan J, Yang Y, et al. Evolution of the combined effect of different irrigation solutions and activation techniques on the removal of smear layer and dentin microhardness in oval-shaped root canal: an in-vitro study[J]. Biomol Biomed, 2023, 23(1): 126-136.
26	Nair RM, Jayasree S, Poornima ES, et al. Comparative evaluation of antimicrobial efficacy on Enterococcus faecalis and smear layer removal in curved canals by different irrigation techniques: an in vitro study[J]. J Conserv Dent, 2022, 25(4): 409-414.
27	张含, 王素苹, 任颖超, 等. 不同辅助根管冲洗技术对根管壁清洁效果的实验研究[J]. 口腔医学研究, 2021, 37(9): 805-809.
	Zhang H, Wang SP, Ren YC, et al. Cleaning effectiveness of different irrigation techniques on root canal walls: an in vitro study[J]. J Oral Sci Res, 2021, 37(9): 805-809.
28	Rius L, Arias A, Aranguren JM, et al. Analysis of the smear layer generated by different activation systems: an in vitro study[J]. Clin Oral Investig, 2021, 25(1): 211-218.
29	何蓉, 刘学军, 周宇琨. 光子引导的光声流效应在根管荡洗中应用的系统评价[J]. 国际口腔医学杂志, 2021, 48(6): 644-655.
	He R, Liu XJ, Zhou YK. Systematic review on the effect of photon-initiated photoacoustic streaming in endodontic irrigation[J]. Int J Stomatol, 2021, 48(6): 644-655.
30	Kuçi A, Alaçam T, Yavaş O, et al. Sealer penetration into dentinal tubules in the presence or absence of smear layer: a confocal laser scanning microscopic study[J]. J Endod, 2014, 40(10): 1627-1631.
31	Vassiliadis LP, Sklavounos SA, Stavrianos CK. Depth of penetration and appearance of Grossman sealer in the dentinal tubules: an in vivo study[J]. J Endod, 1994, 20(8): 373-376.
32	Mader CL, Baumgartner JC, Peters DD. Scanning electron microscopic investigation of the smeared layer on root canal walls[J]. J Endod, 1984, 10(10): 477-483.

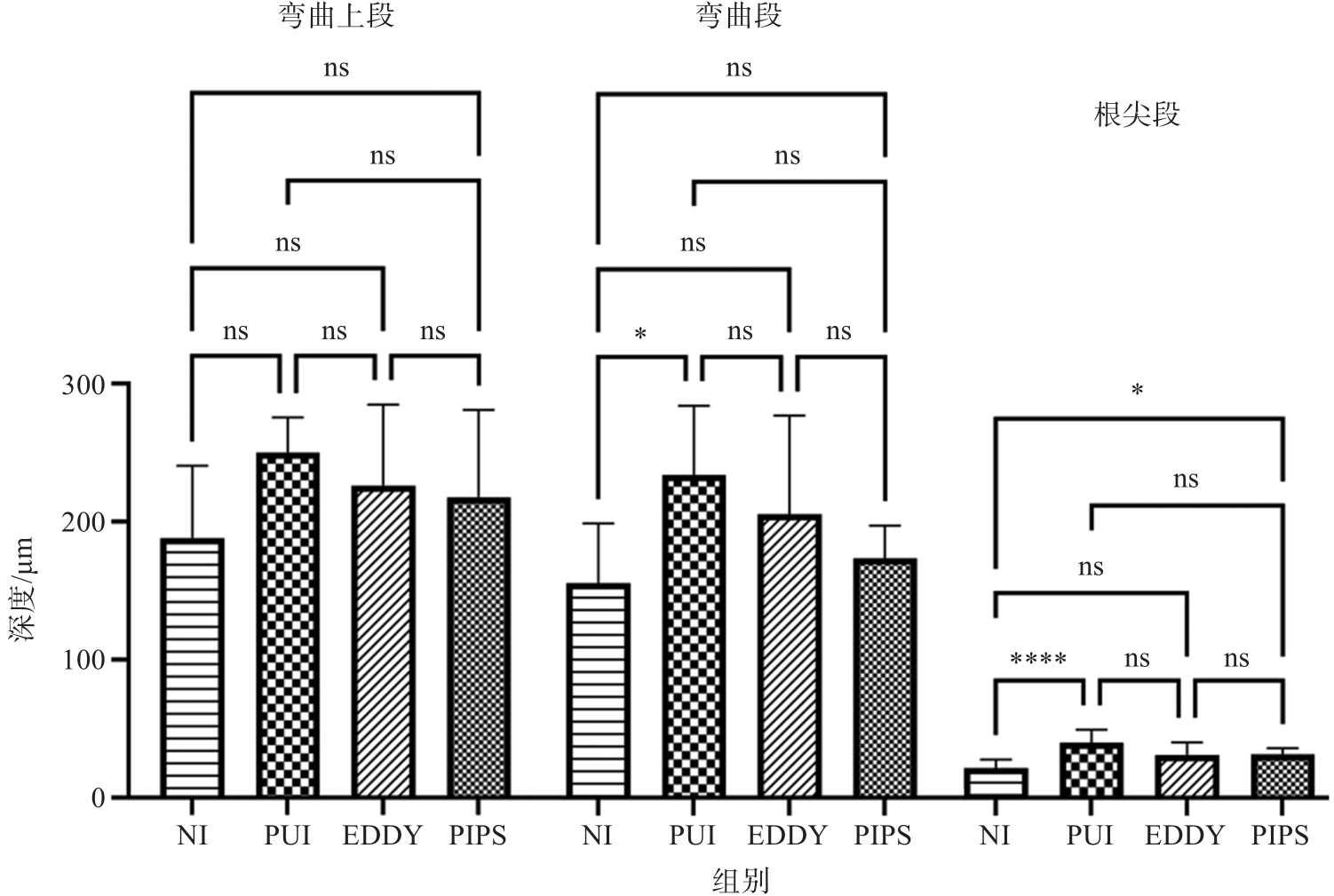

分组	弯曲上段	弯曲段	根尖段
NI组	188.49±52.09	155.99±43.02	21.59±6.29
PUI组	250.39±25.30	234.14±50.51*	40.11±9.54****
EDDY组	226.31±58.62	205.95±71.42	31.47±8.92
PIPS组	217.96±63.15	192.44±56.83	31.84±4.27*

分组	弯曲上段	弯曲段	根尖段
10 s组	213.42±71.81	210.24±31.97	0（0，0）*^#
20 s组	263.06±73.33	211.58±13.71	31.46（0，56.83）
30 s组	252.91±76.30	235.54±21.63	34.29（0，55.50）
40 s组	230.62±79.17	224.77±18.38	78.19（42.62，146.68）*^#△

分组	弯曲上段	弯曲段	根尖段
NI组	3（2，5）	4（3，4）	4（4，4）
PUI组	3（2，3）	2（2，3）**	4（3，4）^###
EDDY组	3（3，3）^###	2（2，3）*	4（4，4）^####
PIPS组	2（1，2）**	2（2，2）****	2（2，2）****
