颞下颌关节盘前移位患者关节骨形态与矢状向关节盘位置的关系

doi:10.7518/hxkq.2022.04.007

华西口腔医学杂志 ›› 2022, Vol. 40 ›› Issue (4): 414-421.doi: 10.7518/hxkq.2022.04.007

颞下颌关节盘前移位患者关节骨形态与矢状向关节盘位置的关系

鄢梨¹(), 周茂强², 邱嘉旋¹()

^1.南昌大学第一附属医院口腔颌面外科，南昌 330006
^2.杭州优琦口腔门诊，杭州 310016

收稿日期:2022-01-24 修回日期:2022-04-10 出版日期:2022-07-25 发布日期:2022-07-27
通讯作者: 邱嘉旋 E-mail:yanli2020628@163.com;qiujiaxuan@163.com
作者简介:鄢梨，硕士，E-mail：yanli2020628@163.com
基金资助:
国家自然科学基金(81860477);江西省重点研发计划(20212BBG71005)

Association between bone morphology and sagittal disc position in temporomandibular joints of patients with anterior disc displacement

Yan Li¹(), Zhou Maoqiang², Qiu Jiaxuan¹()

^1.Dept. of Oral and Maxillofacial Surgery, The First Affiliated Hospital of Nanchang University, Nanchang 330006, China
^2.Hangzhou Youqi Dental Clinic, Hangzhou 310016, China

Received:2022-01-24 Revised:2022-04-10 Online:2022-07-25 Published:2022-07-27
Contact: Qiu Jiaxuan E-mail:yanli2020628@163.com;qiujiaxuan@163.com
Supported by:
National Natural Science Foundation of China(81860477);Jiangxi Provincial Key R&D Plan(20212-BBG71005);Correspondence: Qiu Jiaxuan, E-mail: qiujiaxuan@163.com

摘要/Abstract

摘要：

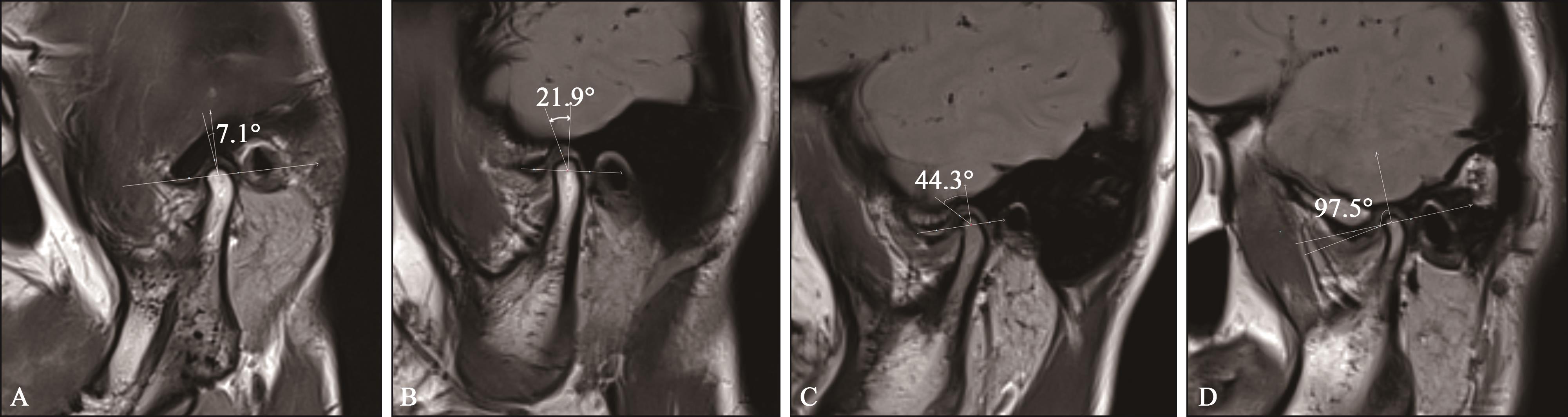

目的　利用磁共振成像（MRI）技术和锥形束CT（CBCT）分析颞下颌关节盘前移位患者矢状向关节盘位置与关节骨形态的关系。方法　对97例患者的178个颞下颌关节（TMJ）进行回顾性分析，根据矢状向MRI上关节盘的位置分成4组，即对照组（关节盘无移位）、轻度组（关节盘轻度前移位）、中度组（关节盘中度前移位）和重度组（关节盘重度前移位）。然后利用Mimics 20软件基于CBCT数据进行TMJ的相关形态学参数测量，包括髁突线性尺寸（宽度、长度和高度）、髁突体积和表面积，关节窝的深度和长度，关节结节倾斜角，关节前、上、后间隙等，并对各组矢状髁突位置进行评估。使用方差分析、非参数检验和卡方检验等比较关节形态及位置参数的组间差异，采用相关性分析探索矢状关节盘位置与关节测量参数之间的相关性。结果　髁突的线性尺寸、关节窝深度、关节倾斜角、关节间隙和矢状髁突位置分布在4组间差异有统计学意义，而关节窝长度在4组间差异没有统计学意义；相关性分析显示：髁突的线性尺寸、髁突的体积及表面积、关节窝的深度、关节结节倾斜角和关节上间隙与关节盘矢状位置之间存在显著负相关，而关节后间隙与矢状关节盘位置之间存在显著正相关。结论　TMJ骨形态与不同矢状关节盘位置之间存在相关性，应警惕临床看到的关节骨形态的退行性改变可能是患者存在关节盘前移位的标志。

关键词: 颞下颌关节, 关节盘前移位, 锥形束CT, 磁共振成像, 矢状向, 形态学测量

Abstract:

Objective To analyze the association between sagittal temporomandibular joint (TMJ) disc position of patients with anterior disc displacement evaluated by magnetic resonance imaging (MRI) and bone morphology of the TMJ evaluated by cone-beam computed tomography (CBCT). Methods One hundred and seventy-eight TMJs of 97 patients were retrospectively analyzed. The TMJ disc position was evaluated using MRI and classified into four types: control group (without disc displacement), slight group (disc slightly anteriorly displaced), moderate group (disc moderately anteriorly displaced), and severe group (disc severely anteriorly displaced). The measurements of TMJ bone morphology among four groups were evaluated by CBCT through Mimics software including condyle linear dimensions (condyle length, width, and height), condylar volume and surface area, and the depth and length of the glenoid fossa, joint anterior space, joint superior space, and joint posterior space. The sagittal plane position of the condyle was also assessed. The differences in all the morphologic measurement parameters among the four groups were detected using the one-way analysis of variance or the Kruskal Wallis test, and Chi-square tests. The correlations between disc sagittal position and all the morphologic measurements were also analyzed. Results There were significant differences in measurements of condyle linear dimensions, condylar volume and surface area, depth of the glenoid fossa, joint spaces, and distribution of the condyle sagittal positions among the four groups. By contrast, there were no statistical differences in terms of the length of the glenoid fossa among the four groups. Correlation analysis revealed that there is a statistically significant negative correlation among condyle linear dimensions, condylar volume and surface area, the depth of the glenoid fossa, joint superior space, and disc position. However, joint posterior space was positively correlated with disc position. Conclusion A statistically significant correlation was determined between TMJ bone morphology and different sagittal disc positions. Degenerative changes in TMJ bone morphology clinically diagnosed should be altered, which can be the patients' marker of anterior disc displacement.

Key words: temporomandibular joint, anterior disc displacement, cone beam CT, magnetic resonance ima-ging, sagittal position, morphologic measurement

中图分类号:

R 782.6

鄢梨, 周茂强, 邱嘉旋. 颞下颌关节盘前移位患者关节骨形态与矢状向关节盘位置的关系[J]. 华西口腔医学杂志, 2022, 40(4): 414-421.

Yan Li, Zhou Maoqiang, Qiu Jiaxuan. Association between bone morphology and sagittal disc position in temporomandibular joints of patients with anterior disc displacement[J]. West China Journal of Stomatology, 2022, 40(4): 414-421.

图/表 6

图 1

表 1

图 2

Tab 2

表 3

表 4

参考文献 26

1	de Farias JF, Melo SL, Bento PM, et al. Correlation between temporomandibular joint morphology and disc displacement by MRI[J]. Dentomaxillofac Radiol, 2015, 44(7): 20150023.
2	Chang MS, Choi JH, Yang IH, et al. Relationships between temporomandibular joint disk displacements and condylar volume[J]. Oral Surg Oral Med Oral Pathol O-ral Radiol, 2018, 125(2): 192-198.
3	Derwich M, Mitus-Kenig M, Pawlowska E. Temporomandibular joints' morphology and osteoarthritic changes in cone-beam computed tomography images in patients with and without reciprocal clicking-a case control study[J]. Int J Environ Res Public Health, 2020, 17(10): 3428.
4	Basaran M, Bozdemir E, Evrimler S. Evaluation of morphometric and volumetric measurements of temporomandibular joint structures on patients with disc displacement[J]. J Anat Soc India, 2021, 70(1): 41-47.
5	Torres MG, Crusoé-Rebello IM, Rosário M, et al. Morphometric features of the mandibular condyle and association with disk abnormalities[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2016, 121(5): 566-572.
6	Guercio Monaco E, De Stefano AA, Hernandez-Andara A, et al. Correlation between condylar size on CT and position of the articular disc on MRI of the temporomandibular joint[J]. Cranio, 2022, 40(1): 64-71.
7	Noh KJ, Baik HS, Han SS, et al. Differences in mandibular condyle and glenoid fossa morphology in relation to vertical and sagittal skeletal patterns: a cone-beam computed tomography study[J]. Korean J Orthod, 2021, 51(2): 126-134.
8	Yalcin ED, Ararat E. Cone-beam computed tomography study of mandibular condylar morphology[J]. J Craniofac Surg, 2019, 30(8): 2621-2624.
9	Seo BY, An JS, Chang MS, et al. Changes in condylar dimensions in temporomandibular joints with disk displacement[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2020, 129(1): 72-79.
10	Yang Z, Wang M, Ma Y, et al. Magnetic resonance imaging (MRI) evaluation for anterior disc displacement of the temporomandibular joint[J]. Med Sci Monit, 2017, 23: 712-718.
11	Cai XY, Jin JM, Yang C. Changes in disc position, disc length, and condylar height in the temporomandibular joint with anterior disc displacement: a longitudinal retrospective magnetic resonance imaging study[J]. J Oral Maxillofac Surg, 2011, 69(11): e340-e346.
12	Drace JE, Enzmann DR. Defining the normal temporomandibular joint: closed-, partially open-, and open-mouth MR imaging of asymptomatic subjects[J]. Radio-logy, 1990, 177(1): 67-71.
13	Kurita H, Ohtsuka A, Kobayashi H, et al. The relationship between the degree of disk displacement and ability to perform disk reduction[J]. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 2000, 90(1): 16-20.
14	刘学业, 李齐明, 唐弘毅, 等. 年轻成人颞下颌关节髁突体积、表面积与关节盘矢向位置的关系[J]. 山东大学学报(医学版), 2021, 59(6): 117-121.
	Liu XY, Li QM, Tang HY, et al. Relationship among the volume and surface area of the temporomandibular joint condyle and the sagittal position of disc in young adults[J]. J Shandong Univ (Health Sci), 2021, 59(6): 117-121.
15	Incesu L, Taşkaya-Yilmaz N, Oğütcen-Toller M, et al. Relationship of condylar position to disc position and morphology[J]. Eur J Radiol, 2004, 51(3): 269-273.
16	Choudhary A, Ahuja US, Rathore A, et al. Association of temporomandibular joint morphology in patients with and without temporomandibular joint dysfunction: a cone-beam computed tomography based study[J]. Dent Res J (Isfahan), 2020, 17(5): 338-346.
17	Pullinger AG, Hollender L, Solberg WK, et al. A tomographic study of mandibular condyle position in an asymptomatic population[J]. J Prosthet Dent, 1985, 53(5): 706-713.
18	Alexiou K, Stamatakis H, Tsiklakis K. Evaluation of the severity of temporomandibular joint osteoarthritic changes related to age using cone beam computed tomography[J]. Dentomaxillofac Radiol, 2009, 38(3): 141-147.
19	Liu X, Xu Q, Guo J. The relationship between the size of temporomandibular joint condyle and the sagittal disc-condyle position in adults[J]. Cranio, 2021: 1-8.
20	Kurita H, Ohtsuka A, Kobayashi H, et al. Alteration of the horizontal mandibular condyle size associated with temporomandibular joint internal derangement in adult females[J]. Dentomaxillofac Radiol, 2002, 31(6): 373-378.
21	Karayol KC, Karayol SS. Morphometric Analysis of the glenoid fossa in the skull base[J]. J Craniofac Surg, 2022, 33(1): 319-321.
22	Sülün T, Cemgil T, Duc JM, et al. Morphology of the mandibular fossa and inclination of the articular eminence in patients with internal derangement and in symptom-free volunteers[J]. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 2001, 92(1): 98-107.
23	Kurita H, Ohtsuka A, Kobayashi H, et al. Is the morphology of the articular eminence of the temporomandibular joint a predisposing factor for disc displacement[J]. Dentomaxillofac Radiol, 2000, 29(3): 159-162.
24	Atkinson WB, Bates RE Jr. The effects of the angle of the articular eminence on anterior disk displacement[J]. J Prosthet Dent, 1983, 49(4): 554-555.
25	Kurita H, Ohtsuka A, Kobayashi H, et al. A study of the relationship between the position of the condylar head and displacement of the temporomandibular joint disk[J]. Dentomaxillofac Radiol, 2001, 30(3): 162-165.
26	Ahmed J, Sujir N, Shenoy N, et al. Morphological assessment of TMJ spaces, mandibular condyle, and glenoid fossa using cone beam computed tomography (CB-CT): a retrospective analysis[J]. Indian J Radiol Imaging, 2021, 31(1): 78-85.

测量参数	对照组	轻度组	中度组	重度组	P值
髁突
宽度/mm	19.69±2.09^a	19.07±1.57^a	18.78±2.11^a	17.32±2.46^b	0.000 1²
长度/mm	8.18±1.20^a	7.95±1.42??	7.16±1.40??	6.73±1.41?	<0.000 1¹
高度/mm	19.30±3.12^a	18.10±2.75^a	17.74±2.56^a	14.86±3.38^b	<0.000 1¹
体积/mm³	2 033±442.1^a	1 832±455.4^a	1 709±422.4^a	1 216±477.9^b	<0.000 1²
表面积/mm²	1 019.0±160.1^a	941.1±158.7^a	917.8±144.4^a	735.2±184.4^b	<0.000 1²
关节窝
深度/mm	6.33±1.16^a	6.31±1.14^a	6.50±1.03^a	5.40±1.57^b	0.000 3¹
长度/mm	18.19±1.77	17.68±2.22	17.26±1.29	18.03±2.02	0.142 1¹
深/长比	0.35±0.06??	0.36±0.06?	0.38±0.05?	0.30±0.09?	<0.000 1²
关节结节倾斜角/?	29.70±4.60??	32.02±6.50^a	32.49±5.33^a	26.33±8.70^b	<0.000 1¹
关节间隙
前/mm	2.33±0.62?	2.67±0.80??	2.89±0.90?	2.54±0.86??	0.021 0²
上/mm	3.57±0.68^a	3.52±0.87^a	3.52±0.86^ab	3.07±1.05^b	0.009 0²
后/mm	2.06±0.53^ab	1.84±0.51^a	2.01±0.60^ab	2.24±0.67^b	0.005 7²
（后-前）/（后+前）/%	-5.97±16.82?	-17.52±16.69?	16.95±20.22?	-5.46±19.22?	0.000 6¹
矢状髁突位置/例（%）					0.044 4³
前	8（15.38）	1（2.00）	3（9.68）	8（17.78）
后	21（40.39）	31（62.00）	20（64.51）	18（40.00）
中	23（44.23）	18（36.00）	8（35.81）	19（42.22）

测量参数		关节盘矢状位置
测量参数		r	P值
髁突	宽度	-0.406 6	<0.000 1
	长度	-0.358 4	<0.000 1
	高度	-0.481 2	<0.000 1
	体积	-0.562 8	<0.000 1
	表面积	-0.541 8	<0.000 1
关节窝	深度	-0.325 2	<0.000 1
关节窝	长度	0.030 7	0.685 6
关节结节	倾斜角	-0.318 1	<0.000 1
关节间隙	前	0.029 8	0.695 6
	上	-0.244 7	0.001 1
	后	0.187 8	0.012 8

[1]	闫森, 乔永明, 段亮伟. 37例颞下颌关节盘不可复性前移位患者自然转归的临床及磁共振成像特征分析[J]. 华西口腔医学杂志, 2024, 42(1): 82-88.
[2]	刘晓琳, 任群, 白九平, 康培, 任贵云, 李向军, 冯晓伟. 基于锥形束CT的1 138颗多生牙影像学特征分析[J]. 华西口腔医学杂志, 2023, 41(6): 671-677.
[3]	李晨曦, 帕热克江·帕塔尔null, 龚忠诚. 颞下颌关节色素沉着绒毛结节性滑膜炎的数字化诊疗1例[J]. 华西口腔医学杂志, 2023, 41(6): 725-730.
[4]	罗恩. 髁突肥大继发牙颌面畸形的诊断与治疗[J]. 华西口腔医学杂志, 2023, 41(4): 369-376.
[5]	李璐欣, 刘红红, 陈佳, 张志宏, 桑潇, 张莉丽, 王元天. 数字化方法测量种植体周围骨嵴上软组织高度可行性分析[J]. 华西口腔医学杂志, 2023, 41(4): 426-433.
[6]	王铁彪, 周五超, 肖寅, 程家龙, 欧阳洲城, 程晨, 习伟宏. 改良关节盘锚固术在颞下颌关节盘穿孔、破裂治疗中的应用[J]. 华西口腔医学杂志, 2023, 41(4): 434-442.
[7]	景兵帅, 石冰, 郑谦, 李承浩. 牙槽突裂髂骨松质骨植骨术的效果及影响因素分析[J]. 华西口腔医学杂志, 2023, 41(3): 284-289.
[8]	李成蹊, 宋卫健. 上颌侧切牙Ⅱ型和ⅢA型双牙内陷根管治疗1例[J]. 华西口腔医学杂志, 2023, 41(2): 232-236.
[9]	袁婧, 余思静, 游梦, 张琼, 叶玲, 高波. 上颌侧切牙年轻恒牙牙中牙伴根尖周炎的牙髓血运重建治疗1例[J]. 华西口腔医学杂志, 2022, 40(6): 716-720.
[10]	章巧, 黄东宗, 翟孝庭, 李鸿波, 胡敏, 刘洪臣, 姜华. 伴颞下颌关节紊乱病症状的偏侧咀嚼者咬合分析[J]. 华西口腔医学杂志, 2022, 40(4): 457-467.
[11]	蔡娉娉, 陈熹, 江亦, 卢兆杰, 林捷, 郑志强. 导板与显微镜辅助拆除纤维桩的精确度比较[J]. 华西口腔医学杂志, 2022, 40(3): 297-302.
[12]	江晓娴, 茅传青, 赖永圳, 卢萌, 王承勇, 蔡志宇, 陈伟辉. 替牙期牙槽突裂患者行块状髂骨植骨术的初步疗效分析[J]. 华西口腔医学杂志, 2022, 40(3): 303-308.
[13]	王若欣, 刘倩, 何峰, 张勉, 王贺林. 生长分化因子11对小鼠颞下颌关节骨关节炎髁突软骨细胞脂肪化的影响[J]. 华西口腔医学杂志, 2022, 40(1): 14-21.
[14]	张帅, 王江红, 田利杰, 王宝利, 张娟. 17β-雌二醇对髁突软骨细胞增殖的影响机制[J]. 华西口腔医学杂志, 2021, 39(6): 651-657.
[15]	尹圆圆, 李飞, 何姝姝, 陈嵩. 颞下颌关节紊乱病患者静态与动态脑功能异常的磁共振研究[J]. 华西口腔医学杂志, 2021, 39(6): 682-689.

颞下颌关节盘前移位患者关节骨形态与矢状向关节盘位置的关系

Association between bone morphology and sagittal disc position in temporomandibular joints of patients with anterior disc displacement

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 6

参考文献 26

相关文章 15

编辑推荐

Metrics

本文评价

测量参数		定义
髁突关节窝	宽度	轴面上测量的最大内外径
	长度	轴面上经过最大内外径中点的垂直线上髁突的最前点与最后点的距离
	体积	利用Mimics软件在轴向上以髁突顶点和下颌切迹最底点所在轴面为上下界，分割建立髁突模型，自动测量体积
	表面积	利用Mimics软件在轴向上以髁突顶点和下颌切迹最底点所在轴面为上下界，分割建立髁突模型，自动测量表面积
	高度	正中矢状面上髁突最顶点到经过下颌切迹最底点所在轴面的最短距离
	长度	正中矢状面上关节结节最低点到关节窝后部最低点的距离
	深度	正中矢状面上关节窝最高点至关节窝宽度线的垂直距离
关节结节	倾斜角	正中矢状面上经过关节窝最高点和关节结节最低点的直线与关节窝长度所在直线所形成的夹角
关节间隙	前	画过关节窝最高点，与髁突前缘相切的线，过切点的垂线上切点到对应关节窝的距离
	上	上关节间隙是从关节窝最上点到髁头最顶点的距离
	后	画过关节窝最高点，与髁突后缘相切的线，过切点的垂线上切点到对应关节窝的距离
髁突位置	前	根据公式：（后间隙-前间隙）/（后间隙+前间隙），若比值R>12%，则为髁突前位
	后	根据公式：（后间隙-前间隙）/（后间隙+前间隙），若比值R<-12%，则为髁突后位
	中	根据公式：（后间隙-前间隙）/（后间隙+前间隙），若比值R介于-12%~12%之间，为髁突中间位
