替牙期牙槽突裂患者行块状髂骨植骨术的初步疗效分析

doi:10.7518/hxkq.2022.03.009

华西口腔医学杂志 ›› 2022, Vol. 40 ›› Issue (3): 303-308.doi: 10.7518/hxkq.2022.03.009

替牙期牙槽突裂患者行块状髂骨植骨术的初步疗效分析

江晓娴(), 茅传青, 赖永圳, 卢萌, 王承勇, 蔡志宇, 陈伟辉()

福建医科大学附属协和医院口腔颌面外科，福州 350001

收稿日期:2021-08-08 修回日期:2022-03-08 出版日期:2022-06-01 发布日期:2022-06-01
通讯作者: 陈伟辉 E-mail:jiangxiaoxian89@163.com;whchen@fjmu.edu.com
作者简介:江晓娴，硕士，E-mail：jiangxiaoxian89@163.com
基金资助:
福建省教育厅中青年教师项目(JAT170225);福建省科技厅引导性项目(2019Y0021)

Preliminary efficacy analysis of block iliac bone grafting in patients with alveolar cleft in mixed dentition

Jiang Xiaoxian(), Mao Chuanqing, Lai Yongzhen, Lu Meng, Wang Chengyong, Cai Zhiyu, Chen Weihui.()

Dept. of Oral and Maxillofacial Surgery, Fujian Medical University Union Hospital, Fuzhou 350001, China

Received:2021-08-08 Revised:2022-03-08 Online:2022-06-01 Published:2022-06-01
Contact: Chen Weihui. E-mail:jiangxiaoxian89@163.com;whchen@fjmu.edu.com
Supported by:
Young and Middle-Aged Teacher Project of Fujian Provincial Department of Education(JAT170225);Leading Project of Fujian Science and Technology Department(2019Y0021);Correspondence: Chen Weihui, E-mail: whchen@fjmu.edu.com

摘要/Abstract

摘要： 目的

探究替牙期单侧牙槽突裂患者行块状髂骨移植术的疗效情况。

方法

回顾性研究就诊于福建医科大学附属协和医院口腔颌面外科的采用自体半厚块状髂骨块进行单侧牙槽突裂植骨修复的替牙期患者37例。植骨术后1周、术后6~12个月随访观察，并通过Mimics软件对15例患者（术前恒尖牙未萌出的9~12岁患者）的随访影像资料进行髂骨块的三维重建和体积测量，对比分析髂骨块骨吸收率。

结果

37例患者中，32例植骨成功，5例植骨失败。植骨成功率为86.5%。术前恒尖牙未萌出的9~12岁的15例患者中，有2例在术后6~12个月尖牙自行经植骨区萌出；锥形束CT示移植骨块出现良好的骨性连接，其吸收主要发生在牙槽嵴顶处和腭侧，不同患者之间的骨吸收率差异较大，术后6~12个月的平均骨吸收率为39.0%±13.8%。

结论

对替牙期牙槽突裂患者采用块状髂骨植骨术可获得较好的成骨效果。

关键词: 牙槽突裂, 块状骨, 替牙期, 骨吸收, 锥形束CT

Abstract: Objective

To investigate the efficacy of block iliac bone grafting in patients with unilateral alveolar cleft in mixed dentition.

Methods

A retrospective study was conducted on patients with unilateral alveolar clefts in mixed dentition who were treated in the Department of Oral and Maxillofacial Surgery, Fujian Medical University Union Hospital. All patients underwent unilateral alveolar cleft bone graft repair with autogenous block iliac bone blocks. The healing of bone blocks was analyzed at 1 week and 6-12 months after surgery. Mimics software was used for the three-dimensional reconstruction and volumetric measurement of the iliac bone blocks on the follow-up imaging data of 15 patients aged 9-12 years without the eruption of canines before surgery, and the bone resorption rate of the iliac bone blocks was comparatively analyzed.

Results

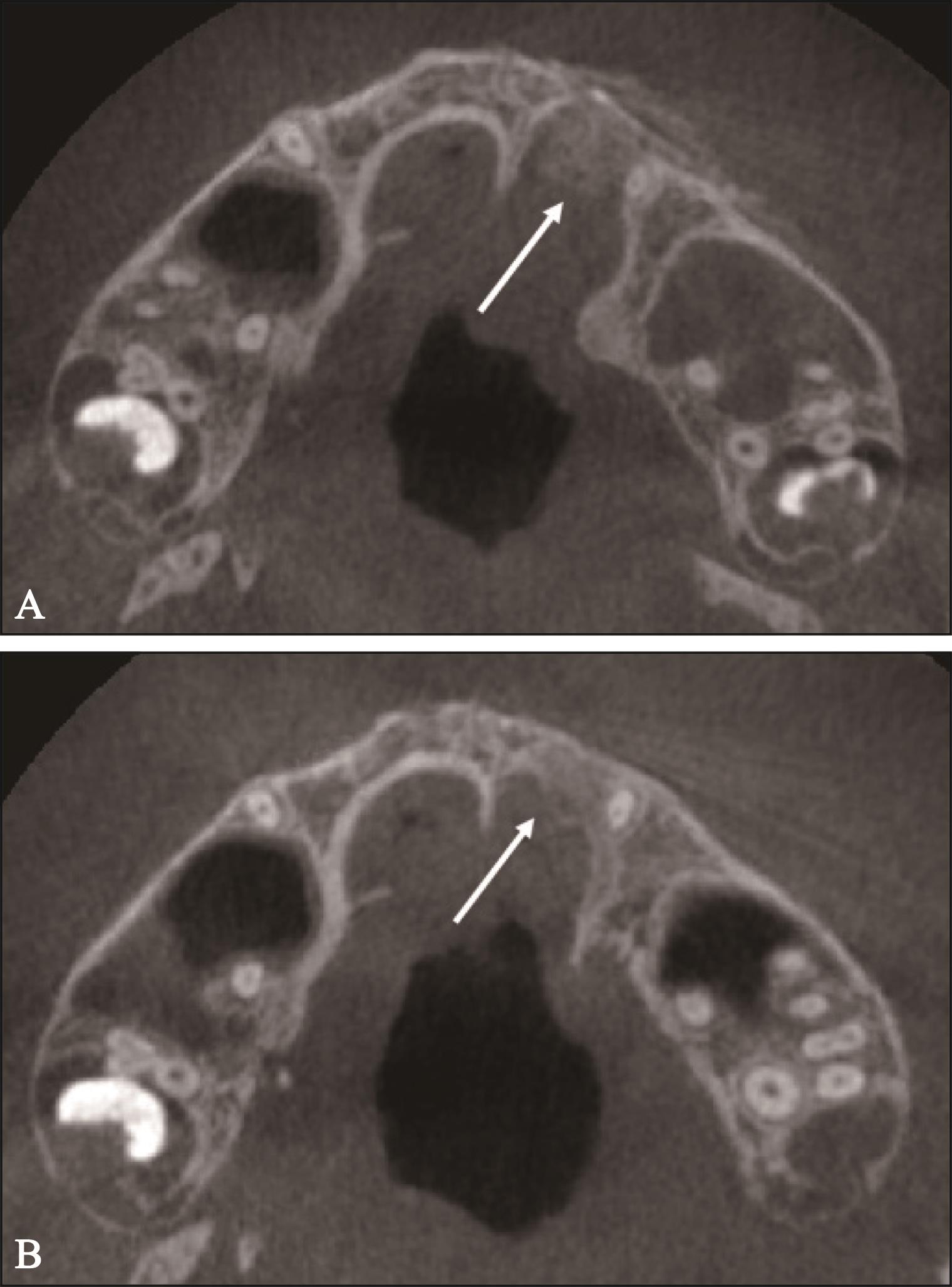

In the 37 patients, bone grafting was successful in 32 and failed in five. The success rate of bone grafting was 86.5%. In 15 patients aged 9-12 years without the eruption of canines before surgery, eruption through the bone graft area was observed in two patients 6-12 months after the operation. Cone beam computer tomography showed that the grafted bone block exhibited good bony connections, and its resorption mainly occurred on the crests and palatal sides of the alveolar ridge. Bone resorption rates varied considerably between patients with a mean bone resorption rate of 39.0%±13.8% at 6-12 months after surgery.

Conclusion

For patients in mixed dentition, bone grafting with block iliac bone can achieve better osteogenesis effect.

Key words: alveolar cleft, block bone, mixed dentition, bone resorption, cone beam computer tomography

中图分类号:

R 782.2⁺2

江晓娴, 茅传青, 赖永圳, 卢萌, 王承勇, 蔡志宇, 陈伟辉. 替牙期牙槽突裂患者行块状髂骨植骨术的初步疗效分析[J]. 华西口腔医学杂志, 2022, 40(3): 303-308.

Jiang Xiaoxian, Mao Chuanqing, Lai Yongzhen, Lu Meng, Wang Chengyong, Cai Zhiyu, Chen Weihui.. Preliminary efficacy analysis of block iliac bone grafting in patients with alveolar cleft in mixed dentition[J]. West China Journal of Stomatology, 2022, 40(3): 303-308.

图/表 6

图 1

图 2

图 3

图 4

图 5

表 1

参考文献 18

1	Gui-Youn CL, Eloy-Miguel GD, Richard-Agostinho N, et al. Review of secondary alveolar cleft repair[J]. Ann Maxillofac Surg, 2013, 3(1): 46-50.
2	姜群, 傅国, 毕先燕, 等. 口腔修复膜与自体髂骨联合移植在牙槽嵴裂植骨中的临床观察[J]. 口腔医学研究, 2010, 26(1): 108-110.
	Jiang Q, Fu G, Bi XY, et al. Clinical appliation of autogenous ilium and bioactive membrance grafts in reconstruction of alveolar cleft[J]. J Oral Sci Res, 2010, 26(1): 108-110.
3	Boyne PJ, Sands NR. Combined orthodontic-surgical management of residual palato-alveolar cleft defects[J]. Am J Orthod, 1976, 70(1): 20-37.
4	唐燕驰, 杜一飞, 李盛, 等. 髂骨块状骨植骨术修复恒牙列牙槽突裂的短期临床观察[J]. 口腔医学, 2016, 36(10): 894-897.
	Tang YC, Du YF, Li S, et al. Alveolar bulk bone grafting: a new surgical approach for alveolar cleft[J]. Stomatology, 2016, 36(10): 894-897.
5	Feichtinger M, Zemann W, Mossbock R, et al. Three-dimensional evaluation of secondary alveolar bone grafting using a 3D-navigation system based on computed tomography: a two-year follow-up[J]. Br J Oral Maxillofac Surg, 2008, 46(4): 278-282.
6	Feichtinger M, Mossböck R, Kärcher H. Evaluation of bone volume following bone grafting in patients with unilateral clefts of lip, alveolus and palate using a CT-guided three-dimensional navigation system[J]. J Craniomaxillofac Surg, 2006, 34(3): 144-149.
7	Du Y, Zhou W, Pan Y, et al. Block iliac bone grafting enhances osseous healing of alveolar reconstruction in older cleft patients: a radiological and histological evaluation[J]. Med Oral Patol Oral Cir Bucal, 2018, 23(2): e216-e224.
8	Coots BK. Alveolar bone grafting: past, present, and new horizons[J]. Semin Plast Surg, 2012, 26(4): 178-183.
9	Daskalogiannakis J, Ross RB. Effect of alveolar bone grafting in the mixed dentition on maxillary growth in complete unilateral cleft lip and palate patients[J]. Cleft Palate Craniofacial J, 1997, 34(5): 455-458.
10	Ozaki W, Buchman SR. Volume maintenance of onlay bone grafts in the craniofacial skeleton: micro-architecture versus embryologic origin[J]. Plast Reconstr Surg, 1998, 102(2): 291-299.
11	Matthias F, Rudolf M, Hans K. Assessment of bone resorption after secondary alveolar bone grafting using th-ree-dimensional computed tomography: a three-year stu-dy[J]. Cleft Palate Craniofacial J, 2007, 44(2): 142-148.
12	Chen NT, Glowacki J, Bucky LP, et al. The roles of revascularization and resorption on endurance of craniofacial onlay bone grafts in the rabbit[J]. Plast Reconstr Surg, 1994, 93(4): 714-723.
13	Vasudev LB, Deeksha G, Sarvesh AR, et al. The use of concentrated growth factor in dental implantology: a systematic review[J]. J Indian Prosthodont Soc, 2020, 20(1): 3-10.
14	Zhang WB, Shen GF, Wang XD, et al. Evaluation of alveolar bone grafting using limited cone beam computed tomography[J]. Oral Surg Oral Med Oral Pathol Oral Radiol, 2012, 113(4): 542-548.
15	Stefan SM, Emeka N, Schlegel Andreas K, et al. Analysis of bone resorption after secondary alveolar cleft bone grafts before and after canine eruption in connection with orthodontic gap closure or prosthodontic treatment[J]. J Oral Maxillofac Surg, 2003, 61(11): 1245-1248.
16	da Silva Filho OG, Teles SG, Ozawa TO, et al. Secondary bone graft and eruption of the permanent canine in patients with alveolar clefts: literature review and case report[J]. Angle Orthod, 2000, 70(2): 174-178.
17	Turvey TA, Vig K, Moriarty J, et al. Delayed bone grafting in the cleft maxilla and palate: a retrospective multidisciplinary analysis[J]. Am J Orthod, 1984, 86(3): 244-256.
18	El Deeb M, Messer LB, Lehnert MW, et al. Canine eruption into grafted bone in maxillary alveolar cleft defects[J]. Cleft Palate J, 1982, 19(1): 9-16.

[1]	刘晓琳, 任群, 白九平, 康培, 任贵云, 李向军, 冯晓伟. 基于锥形束CT的1 138颗多生牙影像学特征分析[J]. 华西口腔医学杂志, 2023, 41(6): 671-677.
[2]	罗枭, 陈宇, 石冰, 郑谦, 李承浩. 牙槽突裂对大龄唇裂继发鼻畸形影响的三维研究[J]. 华西口腔医学杂志, 2023, 41(4): 421-425.
[3]	李璐欣, 刘红红, 陈佳, 张志宏, 桑潇, 张莉丽, 王元天. 数字化方法测量种植体周围骨嵴上软组织高度可行性分析[J]. 华西口腔医学杂志, 2023, 41(4): 426-433.
[4]	景兵帅, 石冰, 郑谦, 李承浩. 牙槽突裂髂骨松质骨植骨术的效果及影响因素分析[J]. 华西口腔医学杂志, 2023, 41(3): 284-289.
[5]	任碧晖, 郭水根, 徐业豪, 戴婕婷, 魏洪武. 单纯锥度固位种植体应用于后牙区即刻种植5~7年的临床疗效[J]. 华西口腔医学杂志, 2023, 41(3): 341-349.
[6]	李承浩, 石冰. 两阶段整复理念与技术在成年牙槽突裂鼻翼基底重建的应用初探[J]. 华西口腔医学杂志, 2023, 41(2): 129-133.
[7]	李成蹊, 宋卫健. 上颌侧切牙Ⅱ型和ⅢA型双牙内陷根管治疗1例[J]. 华西口腔医学杂志, 2023, 41(2): 232-236.
[8]	张启航, 龚佳明, 余佳颖, 赵瑞敏, 苟萍, 余占海. 在后牙区应用4 mm超短种植体临床效果的Meta分析[J]. 华西口腔医学杂志, 2023, 41(1): 80-87.
[9]	袁婧, 余思静, 游梦, 张琼, 叶玲, 高波. 上颌侧切牙年轻恒牙牙中牙伴根尖周炎的牙髓血运重建治疗1例[J]. 华西口腔医学杂志, 2022, 40(6): 716-720.
[10]	鄢梨, 周茂强, 邱嘉旋. 颞下颌关节盘前移位患者关节骨形态与矢状向关节盘位置的关系[J]. 华西口腔医学杂志, 2022, 40(4): 414-421.
[11]	袁玮, 侯彦, 宋鹏, 张晓焕, 黄威. 牙槽突裂植骨前后上颌扩弓对上颌牙槽骨位移影响的三维有限元分析[J]. 华西口腔医学杂志, 2022, 40(4): 451-456.
[12]	蔡娉娉, 陈熹, 江亦, 卢兆杰, 林捷, 郑志强. 导板与显微镜辅助拆除纤维桩的精确度比较[J]. 华西口腔医学杂志, 2022, 40(3): 297-302.
[13]	袁志瑶, 邹习宏, 戴霖霖, 敖慧芝, 李厚轩. 上颌第一磨牙牙根折裂的临床特征分析[J]. 华西口腔医学杂志, 2021, 39(5): 555-559.
[14]	吴瑾, 刘堃, 李明, 朱志军, 汤春波. 翼上颌区种植体联合前部种植体修复萎缩上颌无牙颌的临床回顾研究[J]. 华西口腔医学杂志, 2021, 39(3): 286-292.
[15]	郭美玲, 黄臻, 王宠, 王予江. 双侧下颌骨升支矢状劈开截骨后退术对骨性Ⅲ类错牙合患者颞下颌关节症状及髁突位置影响的锥形束CT研究[J]. 华西口腔医学杂志, 2020, 38(5): 519-524.

替牙期牙槽突裂患者行块状髂骨植骨术的初步疗效分析

Preliminary efficacy analysis of block iliac bone grafting in patients with alveolar cleft in mixed dentition

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 6

参考文献 18

相关文章 15

编辑推荐

Metrics

本文评价

患者编号	年龄/岁	术后随访时间/月	骨吸收率/%
1	10	11	15.0
2	8	12	33.2
3	10	8	60.8
4	9	12	46.7
5	11	11	25.0
6	9	6	45.2
7	8	6	41.3
8	10	7	68.9
9	12	6	25.9
10	9	6	42.8
11	12	12	28.9
12	12	11	36.5
13	10	10	32.7
14	12	12	46.0
15	11	7	36.8
