颞下颌关节紊乱病患者静态与动态脑功能异常的磁共振研究

doi:10.7518/hxkq.2021.06.009

华西口腔医学杂志 ›› 2021, Vol. 39 ›› Issue (6): 682-689.doi: 10.7518/hxkq.2021.06.009

颞下颌关节紊乱病患者静态与动态脑功能异常的磁共振研究

尹圆圆¹(), 李飞², 何姝姝¹, 陈嵩¹()

^1.口腔疾病研究国家重点实验室国家口腔疾病临床医学研究中心四川大学华西口腔医院正畸科，成都 610041
^2.四川大学华西医院放射科华西磁共振研究中心，成都 610041

收稿日期:2021-01-11 修回日期:2021-04-19 出版日期:2021-12-01 发布日期:2021-12-03
通讯作者: 陈嵩 E-mail:1042520312@qq.com;songchen882002@hotmail.com
作者简介:尹圆圆，硕士，E-mail：1042520312@qq.com
基金资助:
国家自然科学基金(81400548)

Abnormal static and dynamic brain function in patients with temporomandibular disorders: a resting-state functional magnetic resonance imaging study

Yin Yuanyuan¹(), Li Fei², He Shushu¹, Chen Song¹()

^1.State Key Laboratory of Oral Diseases & National Clinical Research Center for Oral Diseases & Dept. of Orthodontics, West China Hospital of Stomatology, Sichuan University, Chengdu 610041, China
^2.Huaxi MR Research Center, Dept. of Radiology, West China Hospital of Sichuan University, Chengdu 610041, China

Received:2021-01-11 Revised:2021-04-19 Online:2021-12-01 Published:2021-12-03
Contact: Chen Song E-mail:1042520312@qq.com;songchen882002@hotmail.com
Supported by:
The National Natural Science Foundation of China(81400548)

摘要/Abstract

摘要： 目的

利用静息态功能磁共振成像技术，结合静态与动态低频振幅（ALFF）分析方法探讨颞下颌关节紊乱病（TMD）患者静息态脑功能活动的改变。

方法

招募30名TMD患者（患者组）和20名健康志愿者（对照组），对所有被试者进行问卷调查和临床检查并行3.0T静息态功能磁共振扫描。基于全脑灰质体素分析静态和动态ALFF的组间差异并进行AlphaSim校正，将存在组间差异的静态和动态ALFF值与临床指标做相关性分析。

结果

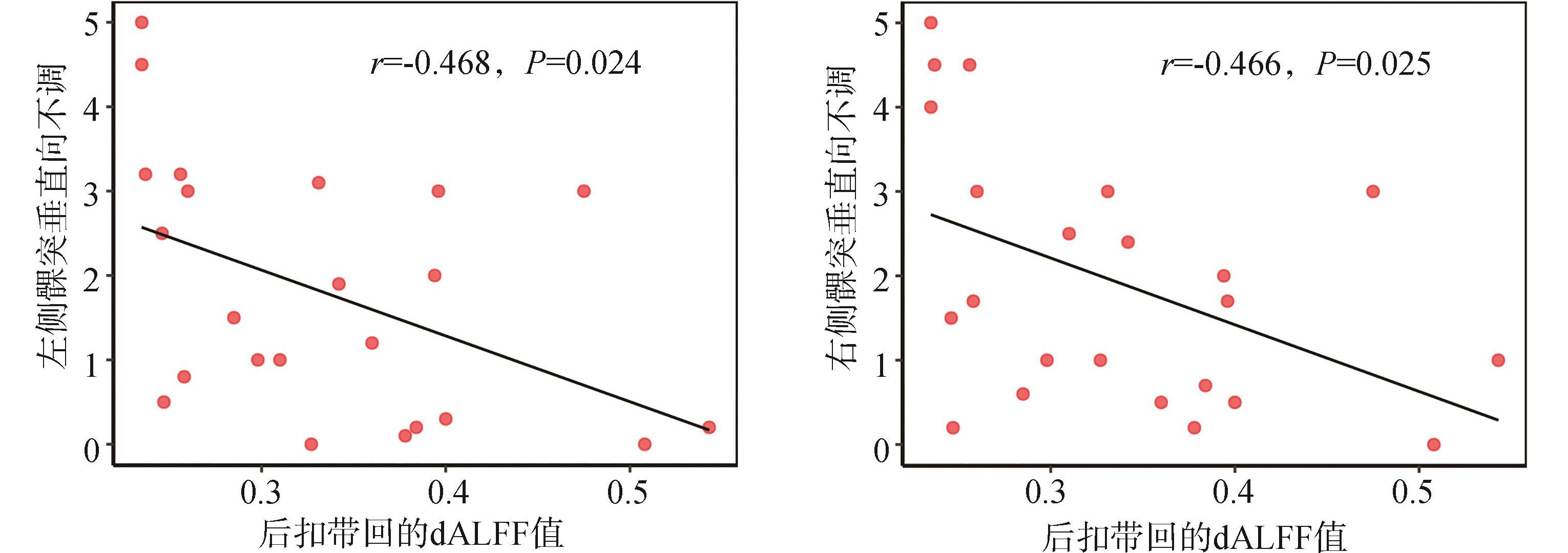

与对照组相比，患者组后扣带回的静态和动态ALFF均增加（全脑水平未校正P=0.005；感兴趣区水平AlphaSim校正，体素水平P<0.005，簇水平P<0.05），且后扣带回的动态ALFF与正中关系-最大牙尖交错位不调指数中双侧髁突垂直向不调指数呈负相关。患者组内侧眶额回皮质的动态ALFF也升高（全脑水平AlphaSim校正，体素水平P<0.005，簇水平P<0.05）。

结论

TMD患者后扣带回和内侧眶额回皮质的静息态脑功能活动存在异常改变，可能反映了与患者自我相关思维增加、负面情绪及情绪调节异常相关的潜在中枢改变。

关键词: 颞下颌关节紊乱病, 静息态功能磁共振成像, 脑功能, 静态低频振幅, 动态低频振幅

Abstract: Objective

This study was conducted to investigate the brain function of patients with temporomandibular disorders (TMD) by combining the static and dynamic amplitudes of low-frequency fluctuation (ALFF).

Methods

Thirty patients with TMD and 20 healthy controls were enrolled. All the participants completed their questionnaires, received clinical examinations, and underwent resting-state functional magnetic resonance imaging scanning. We compared the static and dynamic ALFF between the patients and healthy controls by conducting a two-sample t-test with AlphaSim correction for multiple comparisons. The correlation between the static and dynamic ALFF of the brain regions with significant group differences and clinical measurements was analyzed.

Results

The patients with TMD showed increased static and dynamic ALFF in the posterior cingulate cortex compared with that of the controls (whole-brain level, uncorrected P=0.005; region of interest level with AlphaSim correction, voxel level P<0.005, cluster level P<0.05). The dynamic ALFF of the posterior cingulate cortex was negatively correlated with bilateral condylar vertical discrepancies. The dynamic ALFF in the medial orbitofrontal cortex of the patients with TMD was greater than that of the controls (whole-brain level AlphaSim correction, voxel level P<0.005, cluster level P<0.05).

Conclusion

Our findings revealed that the resting-state brain function of the posterior cingulate cortex and the medial orbitofrontal cortex of patient with TMD increased. These changes probably indicated the potential central mechanisms underlying the increased self-relevant thoughts, negative emotion, and abnormal emotion regulation in TMD.

Key words: temporomandibular disorders, resting-state functional magnetic resonance imaging, brain function, static amplitude of low frequency fluctuation, dynamic amplitude of low frequency fluctuation

中图分类号:

R 783.5

尹圆圆, 李飞, 何姝姝, 陈嵩. 颞下颌关节紊乱病患者静态与动态脑功能异常的磁共振研究[J]. 华西口腔医学杂志, 2021, 39(6): 682-689.

Yin Yuanyuan, Li Fei, He Shushu, Chen Song. Abnormal static and dynamic brain function in patients with temporomandibular disorders: a resting-state functional magnetic resonance imaging study[J]. West China Journal of Stomatology, 2021, 39(6): 682-689.

图/表 6

表 1

表 2

表 3

图 1

图 2

图 3

参考文献 49

1	Scrivani SJ, Keith DA, Kaban LB. Temporomandibular disorders[J]. N Engl J Med, 2008, 359(25): 2693-2705.
2	Woolf CJ. Central sensitization: implications for the diagnosis and treatment of pain[J]. Pain, 2011, 152(3): S2-S15.
3	尹圆圆, 李飞, 龙镜亦, 等. 颞下颌关节紊乱病疼痛患者脑功能磁共振成像的研究进展[J]. 中华口腔医学杂志, 2019, 54(5): 350-355.
	Yin YY, Li F, Long JY, et al. Advances in application of functional magnetic resonance imaging in patients with painful temporomandibular disorders[J]. Chin J Stomatol, 2019, 54(5): 350-355.
4	Kucyi A, Moayedi M, Weissman-Fogel I, et al. Enhanced medial prefrontal-default mode network functional connectivity in chronic pain and its association with pain rumination[J]. J Neurosci, 2014, 34(11): 3969-3975.
5	He SS, Li F, Song F, et al. Spontaneous neural activity alterations in temporomandibular disorders: a cross-sectional and longitudinal resting-state functional magnetic resonance imaging study[J]. Neuroscience, 2014, 278: 1-10.
6	He SS, Li F, Gu T, et al. Reduced corticostriatal functional connectivity in temporomandibular disorders[J]. Hum Brain Mapp, 2018, 39(6): 2563-2572.
7	Zhang J, Li X, Jin Z, et al. Spontaneous brain activity and connectivity in female patients with temporomandibular joint synovitis pain: a pilot functional magnetic resonance imaging study[J]. Oral Surg Oral Med Oral Pa-thol Oral Radiol, 2018, 126(4): 363-374.
8	Ichesco E, Quintero A, Clauw DJ, et al. Altered functional connectivity between the insula and the cingulate cortex in patients with temporomandibular disorder: a pilot study[J]. Headache, 2012, 52(3): 441-454.
9	Allen EA, Damaraju E, Plis SM, et al. Tracking whole-brain connectivity dynamics in the resting state[J]. Ce-reb Cortex, 2014, 24(3): 663-676.
10	Li J, Duan XJ, Cui Q, et al. More than just statics: temporal dynamics of intrinsic brain activity predicts the suicidal ideation in depressed patients[J]. Psychol Med, 2019, 49(5): 852-860.
11	Hutchison RM, Morton JB. It’s a matter of time: reframing the development of cognitive control as a modification of the brain’s temporal dynamics[J]. Dev Cogn Neurosci, 2016, 18: 70-77.
12	Zang YF, He Y, Zhu CZ, et al. Altered baseline brain activity in children with ADHD revealed by resting-state functional MRI[J]. Brain Dev, 2007, 29(2): 83-91.
13	Liao W, Li J, Ji GJ, et al. Endless fluctuations: temporal dynamics of the amplitude of low frequency fluctuations[J]. IEEE Trans Med Imaging, 2019, 38(11): 2523-2532.
14	Cui Q, Sheng W, Chen YY, et al. Dynamic changes of amplitude of low-frequency fluctuations in patients with generalized anxiety disorder[J]. Hum Brain Mapp, 2020, 41(6): 1667-1676.
15	Meng XY, Zheng JJ, Liu YP, et al. Increased dynamic amplitude of low frequency fluctuation in primary insomnia[J]. Front Neurol, 2020, 11: 609.
16	Ma MY, Zhang H, Liu R, et al. Static and dynamic changes of amplitude of low-frequency fluctuations in cervical discogenic pain[J]. Front Neurosci, 2020, 14: 733.
17	Dworkin SF, LeResche L. Research diagnostic criteria for temporomandibular disorders: review, criteria, examinations and specifications, critique[J]. J Craniomandib Disord, 1992, 6(4): 301-355.
18	王生, 王光耀, 谷志远. Helkimo指数在颞下颌关节紊乱病研究中的应用[J]. 口腔颌面修复学杂志, 2002, 3(2): 120-123.
	Wang S, Wang GY, Gu ZY. Application of Helkimo index in the study of temporomandibular disorders[J]. Chin J Prosthodont, 2002, 3(2): 120-123.
19	He SS, Deng X, Wamalwa P, et al. Correlation between centric relation-maximum intercuspation discrepancy and temporomandibular joint dysfunction[J]. Acta Odontol Scand, 2010, 68(6): 368-376.
20	Crawford SD. Condylar axis position, as determined by the occlusion and measured by the CPI instrument, and signs and symptoms of temporomandibular dysfunction[J]. Angle Orthod, 1999, 69(2): 103-116.
21	Dahlberg G. Statistical methods for medical and biological students[M]. New York: Interscience Publications, 1940.
22	Yan CG, Zang YF. DPARSF: a MATLAB toolbox for “pipeline” data analysis of resting-state fMRI[J]. Front Syst Neurosci, 2010, 4: 13.
23	Power JD, Barnes KA, Snyder AZ, et al. Spurious but systematic correlations in functional connectivity MRI networks arise from subject motion[J]. Neuroimage, 2012, 59(3): 2142-2154.
24	Liao W, Wu GR, Xu Q, et al. DynamicBC: a MATLAB toolbox for dynamic brain connectome analysis[J]. Brain Connect, 2014, 4(10): 780-790.
25	Fransson P, Marrelec G. The precuneus/posterior cingulate cortex plays a pivotal role in the default mode network: evidence from a partial correlation network analysis[J]. Neuroimage, 2008, 42(3): 1178-1184.
26	Buckner RL, Andrews-Hanna JR, Schacter DL. The b-rain’s default network: anatomy, function, and relevance to disease[J]. Ann N Y Acad Sci, 2008, 1124: 1-38.
27	Buckner RL, Carroll DC. Self-projection and the brain[J]. Trends Cogn Sci, 2007, 11(2): 49-57.
28	Zhang JL, Su JJ, Wang MX, et al. Increased default mo-de network connectivity and increased regional homogeneity in migraineurs without aura[J]. J Headache Pain, 2016, 17(1): 98.
29	Shen ZX, Zhu JY, Ren L, et al. Aberrant amplitude low-frequency fluctuation (ALFF) and regional homogeneity (ReHo) in generalized anxiety disorder (GAD) and their roles in predicting treatment remission[J]. Ann Transl Med, 2020, 8(20): 1319.
30	Gong JY, Wang JJ, Qiu SJ, et al. Common and distinct patterns of intrinsic brain activity alterations in major depression and bipolar disorder: voxel-based Meta-analysis[J]. Transl Psychiatry, 2020, 10(1): 353.
31	Lee J, Protsenko E, Lazaridou A, et al. Encoding of self-referential pain catastrophizing in the posterior cingulate cortex in fibromyalgia[J]. Arthritis Rheumatol, 2018, 70(8): 1308-1318.
32	Nolen-Hoeksema S, Wisco BE, Lyubomirsky S. Rethinking rumination[J]. Perspect Psychol Sci, 2008, 3(5): 400-424.
33	Weissman-Fogel I, Moayedi M, Tenenbaum HC, et al. Abnormal cortical activity in patients with temporomandibular disorder evoked by cognitive and emotional tasks[J]. Pain, 2011, 152(2): 384-396.
34	Maddock RJ, Garrett AS, Buonocore MH. Posterior cingulate cortex activation by emotional words: fMRI evidence from a valence decision task[J]. Hum Brain Mapp, 2003, 18(1): 30-41.
35	Benuzzi F, Lui F, Duzzi D, et al. Does it look painful or disgusting? Ask your parietal and cingulate cortex[J]. J Neurosci, 2008, 28(4): 923-931.
36	Preti MG, Bolton TA, van De Ville D. The dynamic functional connectome: state-of-the-art and perspectives[J]. Neuroimage, 2017, 160: 41-54.
37	Avivi-Arber L, Martin R, Lee JC, et al. Face sensorimotor cortex and its neuroplasticity related to orofacial sensorimotor functions[J]. Arch Oral Biol, 2011, 56(12): 1440-1465.
38	Yoshihara T, Matsumoto Y, Ogura T. Occlusal disharmony affects plasma corticosterone and hypothalamic noradrenaline release in rats[J]. J Dent Res, 2001, 80(12): 2089-2092.
39	Tang X, Li J, Jiang T, et al. Experimental occlusal disharmony—a promoting factor for anxiety in rats under chronic psychological stress[J]. Prog Neuropsychopharmacol Biol Psychiatry, 2017, 75: 165-175.
40	Ono Y, Yamamoto T, Kubo KY, et al. Occlusion and brain function: mastication as a prevention of cognitive dysfunction[J]. J Oral Rehabil, 2010, 37(8): 624-640.
41	Gameiro GH, da Silva Andrade A, Nouer DF, et al. How may stressful experiences contribute to the development of temporomandibular disorders[J]. Clin Oral Investig, 2006, 10(4): 261-268.
42	Arborelius L, Owens MJ, Plotsky PM, et al. The role of corticotropin-releasing factor in depression and anxiety disorders[J]. J Endocrinol, 1999, 160(1): 1-12.
43	Moayedi M, Weissman-Fogel I, Salomons TV, et al. White matter brain and trigeminal nerve abnormalities in temporomandibular disorder[J]. Pain, 2012, 153(7): 1467-1477.
44	Harper DE, Shah Y, Ichesco E, et al. Multivariate classification of pain-evoked brain activity in temporomandibular disorder[J]. Pain Rep, 2016, 1(3): e572.
45	Kringelbach ML. The human orbitofrontal cortex: linking reward to hedonic experience[J]. Nat Rev Neurosci, 2005, 6(9): 691-702.
46	Ray RD, Ochsner KN, Cooper JC, et al. Individual differences in trait rumination and the neural systems supporting cognitive reappraisal[J]. Cogn Affect Behav Neu-rosci, 2005, 5(2): 156-168.
47	Wright CI, Williams D, Feczko E, et al. Neuroanatomical correlates of extraversion and neuroticism[J]. Cereb Cortex, 2006, 16(12): 1809-1819.
48	Moayedi M, Weissman-Fogel I, Crawley AP, et al. Contribution of chronic pain and neuroticism to abnormal forebrain gray matter in patients with temporomandibular disorder[J]. Neuroimage, 2011, 55(1): 277-286.
49	Younger JW, Shen YF, Goddard G, et al. Chronic myofascial temporomandibular pain is associated with neural abnormalities in the trigeminal and limbic systems[J]. Pain, 2010, 149(2): 222-228.

指标	患者组	对照组	P值
年龄/岁	22.1±3.8	23.1±2.4	0.304
性别（男/女）	11/19	9/11	0.556
身高/cm	166±6.8	165±7.9	0.532
体重/kg	55.1±7.8	57.2±9.8	0.401
教育年限/年	16.2±3.3	17.5±1.3	0.098
抑郁症状等级	0.19±0.22	0.10±0.10	0.094
非特异性躯体症状等级	0.20±0.18	0.15±0.12	0.110
平均FD	0.06±0.02	0.07±0.23	0.479

项目	垂直向		矢状向		横向
项目	左侧髁突	右侧髁突	左侧髁突	右侧髁突	横向
人数	15	16	15	14	19
均值/mm	1.8±1.5	1.9±1.5	1.3±0.9	1.0±0.6	0.8±0.5
范围/mm	0.0～5.0	0.0～5.0	0.0～3.2	0.0～2.0	0.0～2.0

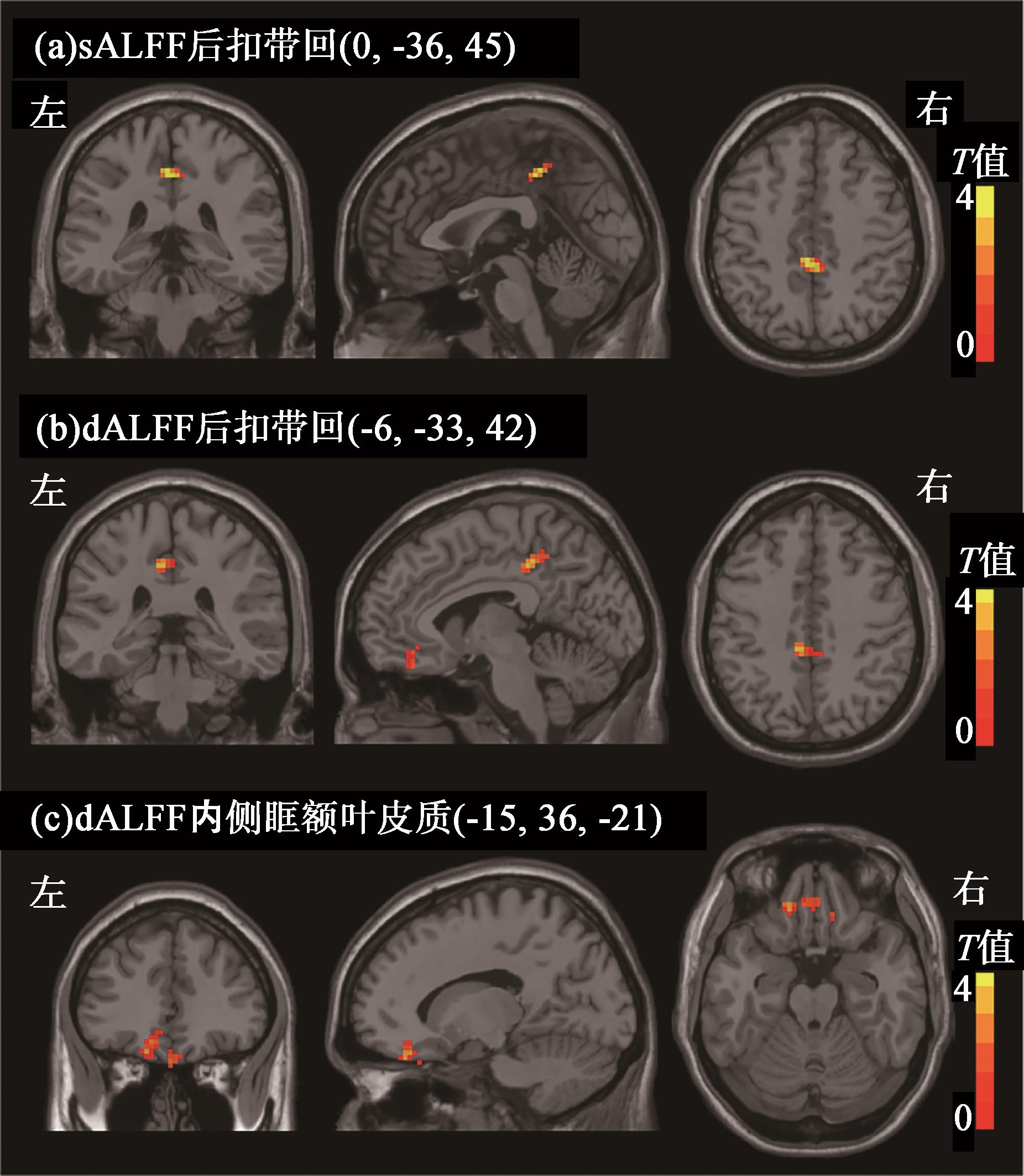

脑区	MNI坐标			体素大小*	T值
脑区	x	y	z	体素大小*	T值
sALFF后扣带回（ROI水平）	0	-36	45	39	4.025
dALFF后扣带回（ROI水平）	-6	-33	42	44	4.178
dALFF内侧眶额皮质（全脑水平）	-15	36	-21	83	3.849
