自主研发无线表面肌电系统对咀嚼肌功能活动的评价研究

doi:10.7518/hxkq.2024.2024407

华西口腔医学杂志 ›› 2025, Vol. 43 ›› Issue (3): 346-353.doi: 10.7518/hxkq.2024.2024407

自主研发无线表面肌电系统对咀嚼肌功能活动的评价研究

李文博¹(), 朱玉佳², 秦庆钊², 单珅瑶¹, 高梓翔², 温奥楠², 王勇²(), 赵一姣¹()

^1.北京大学医学部医学技术研究院，北京 100191
^2.北京大学口腔医学院·口腔医院，数字化研究中心/口腔修复教研室国家口腔医学中心国家口腔疾病临床医学研究中心口腔生物材料和数字诊疗装备国家工程研究中心国家卫生健康委口腔数字医学重点实验室口腔数字医学北京市重点实验室，北京 100081

收稿日期:2024-11-07 修回日期:2025-04-29 出版日期:2025-06-01 发布日期:2025-06-10
通讯作者: 王勇,赵一姣 E-mail:liwenb@pku.edu.cn;kqcadc@bjmu.edu.cn;kqcadcs@bjmu.edu.cn
作者简介:李文博，硕士，E-mail：liwenb@pku.edu.cn
基金资助:
北京市自然科学基金-海淀原始创新联合基金(L2321-00);国家自然科学基金(82271039);科技部重点研发计划课题(2022YFC2405401)

Evaluation of the function and activity of masticatory muscles using a self-developed wireless surface electromyography system

Li Wenbo¹(), Zhu Yujia², Qin Qingzhao², Shan Shenyao¹, Gao Zixiang², Wen Aonan², Wang Yong²(), Zhao Yijiao¹()

^1.Institute of Medical Technology, Peking University Health Science Center, Beijing 100191, China
^2.Center of Digital Dentistry/Dept. of Prosthodontics, Peking University School and Hospital of Stomatology & National Center for Stomatology & National Clinical Research Center for Oral Diseases & National Engineering Research Center of Oral Biomaterials and Digital Medical Devices & NHC Key Laboratory of Digital Stomatology & Beijing Key Laboratory of Digital Stomatology, Beijing 100081, China

Received:2024-11-07 Revised:2025-04-29 Online:2025-06-01 Published:2025-06-10
Contact: Wang Yong,Zhao Yijiao E-mail:liwenb@pku.edu.cn;kqcadc@bjmu.edu.cn;kqcadcs@bjmu.edu.cn
Supported by:
Beijing Natural Science Foundation-Haidian Original Innovation Joint Fund(L232100);National Natural Science Foundation of China(82271039);Key R&D Program of the Ministry of Science and Technology(2022YFC2405401)

摘要/Abstract

摘要：

目的本研究旨在评价自主研发的国产化口腔无线表面肌电监测系统（Oralmetry表面肌电仪）在颞肌和咬肌活动评估中的可重复性和一致性，为其临床应用提供理论支持。方法招募22名志愿者，分别使用自主研发的Oralmetry表面肌电仪和2台商品化的表面肌电仪（Zebris、Teethan表面肌电仪）重复多次采集志愿者紧咬牙状态下双侧颞肌前束和咬肌的表面肌电（sEMG）信号。对采集的sEMG进行滤波、筛选、标准化处理，并计算7项用于评价咀嚼肌功能的sEMG指标。使用组内相关系数（ICC）评估3台表面肌电仪测量结果的可重复性，并通过统计学分析对比3台表面肌电仪获得的7项sEMG指标的一致性。结果针对22名受试者，3台表面肌电仪重复测量输出数值的ICC均介于0.88~0.99之间。Zebris表面肌电仪获得的前后系数、百分比重叠系数（咬肌、颞肌）等3项sEMG指标与Oralmetry表面肌电仪和Teethan表面肌电仪2台设备的测量结果间差异存在统计学意义（P<0.05）。Oralmetry表面肌电仪和Teethan表面肌电仪获得的7项sEMG指标差异均无统计学意义。结论 Oralmetry表面肌电仪与2台商品化的表面肌电仪在获取用于评价咀嚼肌功能的各项sEMG指标的表现时，各自均表现出较好的可重复性，但其ICC在三者中表现最优。3台表面肌电仪测量的sEMG指标间也表现出较好的一致性，尤其2台无线表面肌电仪（Oralmetry和Teethan）的测量指标结果表现出高度的一致性。上述结果为Oralmetry表面肌电仪的临床应用提供了理论依据。

关键词: 表面肌电仪, 肌电信号, 咀嚼肌, 颞肌, 咬肌

Abstract:

Objective This study aimed to evaluate the repeatability and reliability of a self-developed domestic wireless surface electromyography (sEMG) system (Oralmetry) in assessing the activity of the temporalis and masseter muscles to provide theoretical support for its clinical application. Methods Twenty-two volunteers were recruited. Through multiple repeated measurements, the sEMG signals of bilateral anterior temporalis and masseter muscles during maximum voluntary clenching were collected using the self-developed sEMG device, Oralmetry, and two commercial sEMG devices (Zebris and Teethan), filtered, screened, and standardized. Seven sEMG indicators for assessing masticatory muscle function were calculated. The intraclass correlation coefficient (ICC) was used to evaluate the repeatability of the measurements from the three sEMG devices, and statistical analysis was conducted to compare the consistency of the seven sEMG indicators obtained from the devices. Results Among the 22 participants, the ICC values of the repeated measurements from the three sEMG devices ranged from 0.88 to 0.99. The measurements of three sEMG indicators (antero-posterior coeffificient, percentage overlapping coeffificient_MM, and percentage overlapping coeffificient_TA) obtained by Zebris were significantly different from those obtained by Oralmetry and Teethan (P<0.05). No significant differences in the measurements of the seven sEMG indicators were found between Oralmetry and Teethan. Conclusion Oralmetry and the two commercial sEMG devices demonstrated good repeatability in capturing sEMG indicators for evaluating masticatory muscle function. In particular, Oralmetry showed the highest ICC values. All three devices also exhibited good consistency in measuring sEMG indicators, and a high agreement was observed between the two wireless sEMG devices (Oralmetry and Teethan). These findings provide theoretical support for the clinical application of Oralmetry.

Key words: surface electromyography device, electromyographic signals, masticatory muscle, temporalis muscle, masseter muscle

中图分类号:

李文博, 朱玉佳, 秦庆钊, 单珅瑶, 高梓翔, 温奥楠, 王勇, 赵一姣. 自主研发无线表面肌电系统对咀嚼肌功能活动的评价研究[J]. 华西口腔医学杂志, 2025, 43(3): 346-353.

Li Wenbo, Zhu Yujia, Qin Qingzhao, Shan Shenyao, Gao Zixiang, Wen Aonan, Wang Yong, Zhao Yijiao. Evaluation of the function and activity of masticatory muscles using a self-developed wireless surface electromyography system[J]. West China Journal of Stomatology, 2025, 43(3): 346-353.

图/表 7

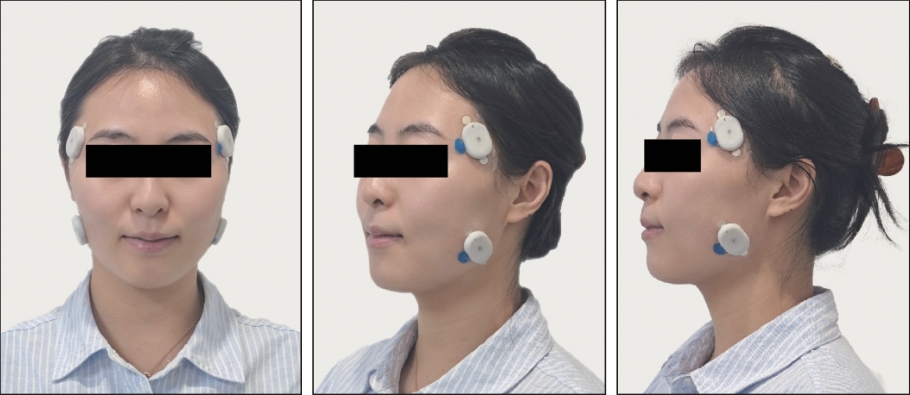

图 1

图 2

表 1

本研究纳入的咀嚼肌功能评价sEMG指标

指标	定义	计算公式
AI^[11]	反映左右侧咬肌与颞肌总电活动的对称性（指标为正值代表右侧肌肉电活动强于左侧，负值则左侧强于右侧）	$∑ i = 1 N R M i + R T i - L M i - L T i ∑ i = 1 N R M i + R T i + L M i + L T i × 100 %$
活动指数^[11]（activity index，Ac）	反映咬肌总电活动与颞肌的协同性（该指标为正值表示咬肌电活动强于颞肌，负值则表示颞肌强于咬肌）	$∑ i = 1 N R M i + L M i - R T i - L T i ∑ i = 1 N R M i + L M i + R T i + L T i × 100 %$
百分比重叠系数（颞肌）^[12]（percentage overlapping coeffificient_TA，POC_TA）	反映左右侧颞肌肉电活动的对称性（当肌肉完全对称性收缩时，POC理论上可达100%）	$1 - ∑ i = 1 N R T i - L T i ∑ i = 1 N R T i + L T i × 100 %$
百分比重叠系数（咬肌）^[12]（percentage overlapping coeffificient_MM，POC_MM）	反映左右侧咬肌肉电活动的对称性	$1 - ∑ i = 1 N R M i - L M i ∑ i = 1 N R M i + L M i × 100 %$
TC	反映了下颌侧向偏斜的趋势（正值代表下颌有向右偏斜的趋势，负值代表下颌左偏趋势）	$∑ i = 1 N R T i - L T i - R M i - L M i ∑ i = 1 N R M i + L M i + R T i + L T i × 100 %$
前后系数^[10]（antero-posterior coeffificient，APC）	反映咬肌和颞肌的前后向平衡性（APC数值越大，平衡性越好）	$1 - ∑ i = 1 N R M i + L M i - R T i - L T i ∑ i = 1 N R M i + L M i + R T i + L T i × 100 %$
相对肌肉总活动（integrated muscle activity，IMP）	肌肉总活动指在一定时间段内，肌电信号的振幅随时间的积分。相对肌肉总活动为相对于标准化测试的肌肉总活动的百分比	$∫ A 1 (t) d t ∫ A 2 (t) d t × 100 %$

表 1

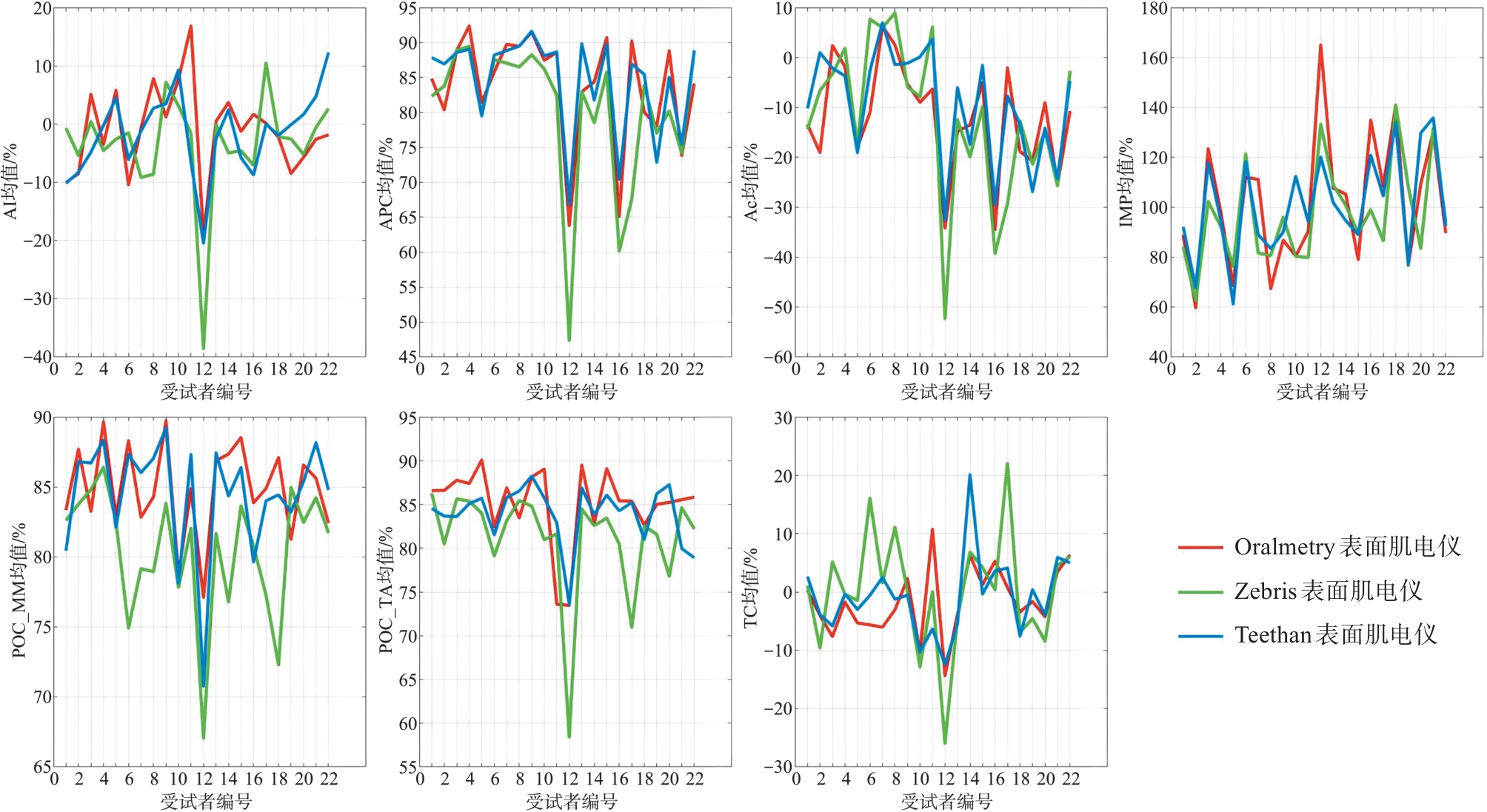

图 3

表 2

表 3

表 4

参考文献 20

1	Zieliński G, Gawda P. Surface electromyography in dentistry-past, present and future[J]. J Clin Med, 2024, 13(5): 1328.
2	Ko EW, Teng TT, Huang CS, et al. The effect of early physiotherapy on the recovery of mandibular function after orthognathic surgery for class Ⅲ correction. Part Ⅱ: electromyographic activity of masticatory muscles[J]. J Craniomaxillofac Surg, 2015, 43(1): 138-143.
3	Hugger S, Schindler HJ, Kordass B, et al. Clinical relevance of surface EMG of the masticatory muscles. (Part 1): resting activity, maximal and submaximal voluntary contraction, symmetry of EMG activity[J]. Int J Comput Dent, 2012, 15(4): 297-314.
4	Lucas Bde L, Barbosa Tde S, Pereira LJ, et al. Electromyographic evaluation of masticatory muscles at rest and maximal intercuspal positions of the mandible in children with sleep bruxism[J]. Eur Arch Paediatr Dent, 2014, 15(4): 269-274.
5	Chen YJ, Yao CC, Chang ZC, et al. Occlusal function and electromyographic activity of masticatory muscles in skeletal Class Ⅲ patients with different patterns of mandibular asymmetry[J]. J Oral Rehabil, 2023, 50(4): 276-285.
6	赵琪, 吴国民. 正颌手术对咀嚼肌影响研究进展[J]. 中国实用口腔科杂志, 2024, 17(1): 108-113.
	Zhao Q, Wu GM. Progress in the study of masticatory muscle changes after orthognathic surgery[J]. Chin J Pract Stomatol, 2024, 17(1): 108-113.
7	Marcelino V, De Rovere S, Paço M, et al. Masticatory function in individuals with temporomandibular disorders: a systematic review and meta-analysis[J]. Life (Basel), 2023, 13(2): 472.
8	Szyszka-Sommerfeld L, Sycińska-Dziarnowska M, Spa-gnuolo G, et al. Surface electromyography in the assessment of masticatory muscle activity in patients with pain-related temporomandibular disorders: a systematic review[J]. Front Neurol, 2023, 14: 1184036.
9	丁其川, 熊安斌, 赵新刚, 等. 基于表面肌电的运动意图识别方法研究及应用综述[J]. 自动化学报, 2016, 42(1): 13-25.
	Ding QC, Xiong AB, Zhao XG, et al. A review on researches and applications of sEMG-based motion intent recognition methods[J]. Acta Automatica Sinica, 2016, 42(1): 13-25.
10	Ferrario VF, Tartaglia GM, Galletta A, et al. The in-fluence of occlusion on jaw and neck muscle activity: a surface EMG study in healthy young adults[J]. J Oral Rehabil, 2006, 33(5): 341-348.
11	Naeije M, McCarroll RS, Weijs WA. Electromyographic activity of the human masticatory muscles during submaximal clenching in the inter-cuspal position[J]. J Oral Rehabil, 1989, 16(1): 63-70.
12	Ferrario VF, Sforza C, Colombo A, et al. An electromyographic investigation of masticatory muscles symmetry in normo-occlusion subjects[J]. J Oral Rehabil, 2000, 27(1): 33-40.
13	Yamaguchi T, Mikami S, Maeda M, et al. Portable and wearable electromyographic devices for the assessment of sleep bruxism and awake bruxism: a literature review[J]. Cranio, 2023, 41(1): 69-77.
14	Karacan I, Topkara Arslan B, Karaoglu A, et al. Esti-mating and minimizing movement artifacts in surface electromyogram[J]. J Electromyogr Kinesiol, 2023, 70: 102778.
15	da Silva FC, da Costa Palácio PR, Gomes AO, et al. Electromyographic evaluation of masticatory muscles in individuals with hemiparesis and temporomandibular di-sorder[J]. Cogent Med, 2018, 5(1): 1432159.
16	The National Academies of Sciences, Engineering, Me-dicine. Reproducibility and replicability in science[M]. Washington: National Academies Press, 2019.
17	Nakata Y, Ueda HM, Kato M, et al. Changes in stomatognathic function induced by orthognathic surgery in patients with mandibular prognathism[J]. J Oral Maxillofac Surg, 2007, 65(3): 444-451.
18	Waugh C, Clark G. Factors affecting test reproducibility among laboratories[J]. Rev Sci Tech, 2021, 40(1): 131-143.
19	Saracutu OI, Pollis M, Cagidiaco EF, et al. Repeatability of Teethan^® indexes analysis of the masseter and anterior temporalis muscles during maximum clenching: a pilot study[J]. Clin Oral Investig, 2023, 27(9): 5309-5316.
20	Ginszt M, Zieliński G. Novel functional indices of masticatory muscle activity[J]. J Clin Med, 2021, 10(7): 1440.

指标	平均值	标准差	最大值	最小值
AI	-2.07	6.64	6.69	-26.17
Ac	-11.12	11.75	6.41	-39.66
POC_TA	83.39	3.95	87.07	68.49
POC_MM	83.26	3.45	88.13	71.64
TC	-0.72	6.40	11.10	-17.59
APC	82.89	7.94	90.45	59.31
IMP	99.85	20.48	139.46	63.26

指标	F值/卡方值	P值
AI	0.36^△	0.83
Ac	0.31^#	0.74
POC_TA	16.64^△	<0.01*
POC_MM	18.91^△	<0.01*
TC	0.29^#	0.75
APC	9.36^△	<0.01*
IMP	0.26^#	0.77

指标	Oralmetry & Zebris两两比较结果		Oralmetry & Teethan两两比较结果		Zebris & Teethan 两两比较结果
指标	T值/Z值	P值	T值/Z值	P值	T值/Z值	P值
AI	0.37^△	0.37	0.75^#	0.75	0.24^△	0.24
Ac	0.91^△	0.91	0.13^△	0.13	0.19^△	0.19
POC_TA	<0.01^△	<0.01*	0.12^#	0.12	0.02^#	0.02*
POC_MM	<0.01^△	<0.01*	0.51^△	0.51	<0.01^△	<0.01*
TC	0.73^△	0.73	0.52^#	0.52	0.88^△	0.88
APC	0.02^#	0.02*	0.39^△	0.39	<0.01^#	<0.01*
IMP	0.41^△	0.41	0.86^#	0.86	0.32^△	0.32
