隐形功能矫治器对比传统功能矫治器前导下颌治疗骨性Ⅱ类错畸形患者疗效的meta分析

doi:10.7518/hxkq.2023.2022453

摘要/Abstract

摘要：

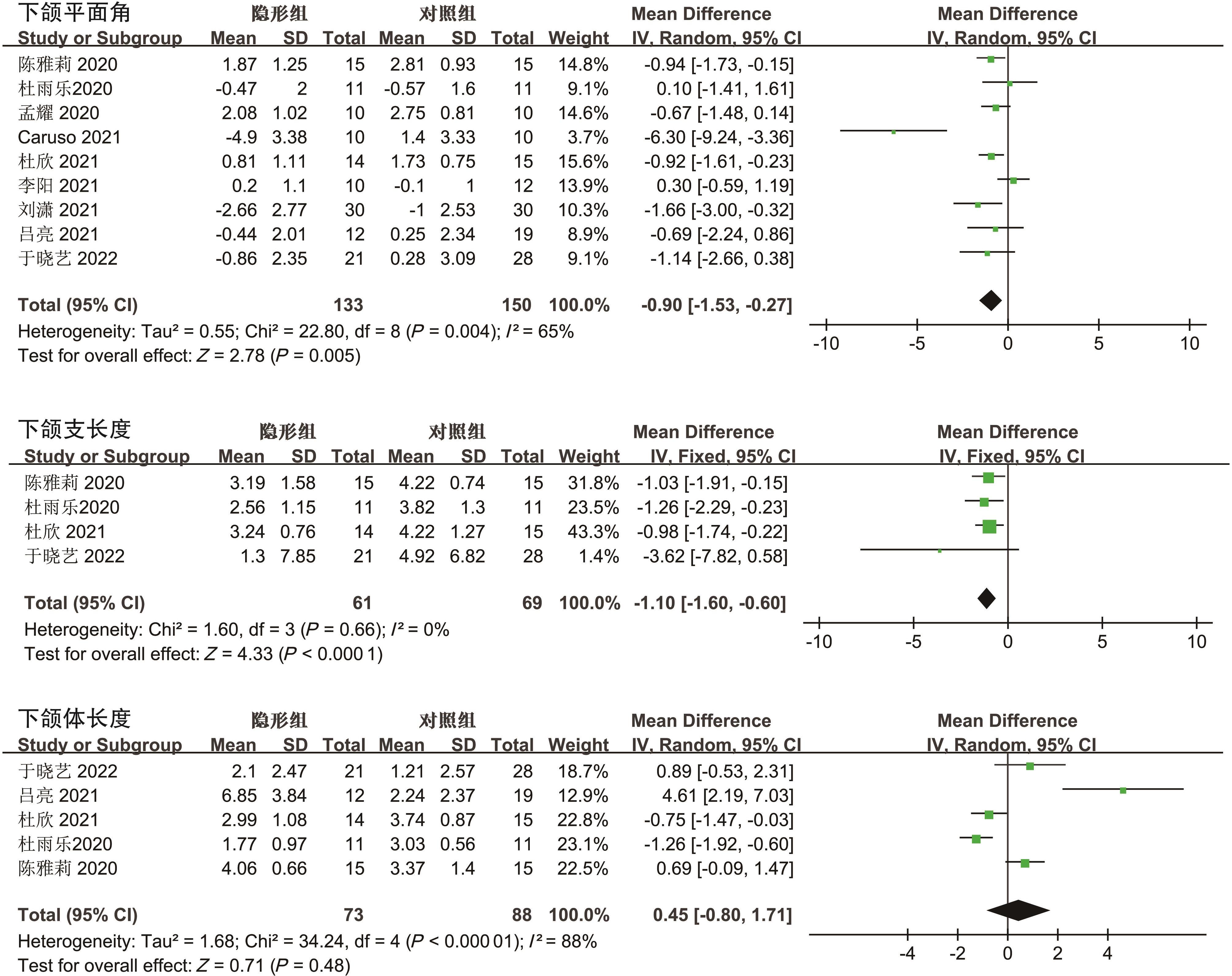

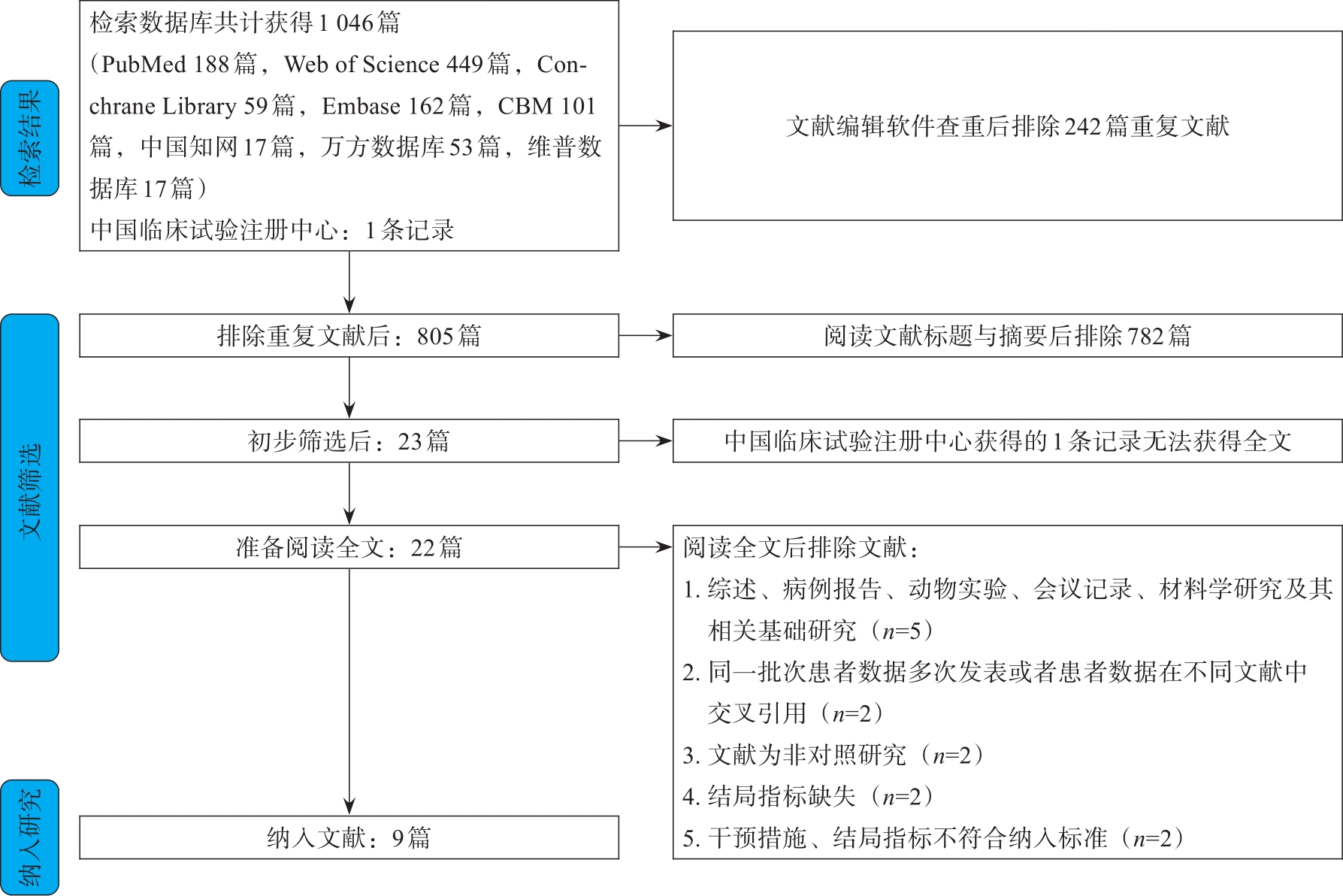

目的以传统功能矫治器为对照，对隐形功能矫治器治疗骨性Ⅱ类错畸形的疗效进行meta分析。方法电子检索PubMed、Web of Science、Embase、Cochrane Library、中国生物医学文摘数据库、中国知网数据库、万方数据库、维普数据库。2组研究者按照PICOS条目制定的纳入、排除标准，筛查文献、提取数据，并使用ROBINS-I进行质量评价。采用Revman 5.4和Stata 17.0软件进行meta分析。结果共纳入9个临床对照试验，总样本量283例。隐形矫治器与功能矫治器在治疗骨性Ⅱ类错畸形患者时，SNA、SNB、ANB、下颌体长度、上前牙角度、覆盖等方面差异无统计学意义；两组间下颌平面角变化存在0.90°的差异；对照组下颌支生长量比隐形组多1.10 mm；隐形组下牙唇倾度比对照组少1.94°。结论隐形组在前导下颌时能更好地控制下颌前牙的唇倾度，下颌平面角基本保持不变，下颌升支的生长量不如对照组，临床中应当采用辅助措施进行改进。

关键词: 骨性Ⅱ类错畸形, 前导下颌, 隐形矫治器, 功能矫治器, meta分析

Abstract:

Objective This study aimed to conduct a meta-analysis of the efficacy of mandibular advance clear alig-ners with traditional functional appliances as the control group. Methods PubMed, Web of Science, Embase, Cochrane Library, China Biomedical Abstracts Database, China Knowledge Network Database, Wanfang Database, and Weipu Database were used in this study. The two groups of researchers screened the literature and extracted data based on the inclusion and exclusion criteria established by PICOS entries, and used the ROBINS-I scale for quality evaluation. Revman 5.4 and Stata 17.0 software were used for meta-analysis. Results Nine clinical controlled trials were included in this study with a total sample size of 283 cases. No significant difference was found in SNA, SNB, ANB, Go-Pog, U1-SN, Overjet, and other aspects between the invisible group and the traditional group in the treatment of skeletal class Ⅱ ma-locclusion patients; there was a 0.90° difference in mandibular plane angle between the two groups; the growth of the mandibular ramus (Co-Go) in the traditional group was 1.10 mm more than that in the invisible group; the lip inclination of the lower teeth in the invisible group was better controlled, 1.94° less than that in the control group. Conclusion The invisible group can better control the lip inclination of the mandibular anterior teeth when guiding the mandible. Furthermore, the mandibular plane angle (MP-SN) can remain unchanged, but the growth of the mandibular ramus is not as good as the traditional group, and auxiliary measures should be taken to improve it in clinical practice.

Key words: skeletal ClassⅡmalocclusion, mandi-bular advancement, clear aligners, functional ortho-dontic appliances, meta-analysis

中图分类号:

R 783.5

余磊, 李紫薇, 康芙嘉, 王宋庆, 谢尊玄, 朱宪春. 隐形功能矫治器对比传统功能矫治器前导下颌治疗骨性Ⅱ类错畸形患者疗效的meta分析[J]. 华西口腔医学杂志, 2023, 41(3): 305-314.

Yu Lei, Li Ziwei, Kang Fujia, Wang Songqing, Xie Zunxuan, Zhu Xianchun.. Mandibular advancement with clear aligners and functional appliances in the treatment of skeletal ClassⅡmalocclusion: a systematic review and meta-analysis[J]. West China Journal of Stomatology, 2023, 41(3): 305-314.

图/表 6

图 1

表 1

图 2

图 3

图 4

图 5

参考文献 34

1	Moyers RE, Riolo ML, Guire KE, et al. Differential diagnosis of classⅡmalocclusions. Part 1. Facial types associated with classⅡmalocclusions[J]. Am J Orthod, 1980, 78(5): 477-494.
2	赵志河, 周彦恒, 白玉兴. 口腔正畸学[M].北京: 人民卫生出版社, 2020: 94-145.
	Zhao ZH, Zhou YH, Bai YX. Orthodontics[M]. Beijing: People’s Medical Publishing House, 2020: 94-145.
3	房兵. 骨性Ⅱ类错青少年的颞下颌关节结构异常及其对矫治的影响[J]. 中华口腔医学杂志, 2017, 52(3): 152-156.
	Fang B. Relationship between the mandibular hypoplasia and temporomandibular joint internal derangement in adolescents with skeletal classⅡmalocclusion[J]. Chin J Stomatol, 2017, 52(3): 152-156.
4	Zhao T, Ngan P, Hua F, et al. Impact of pediatric obstructive sleep apnea on the development of ClassⅡhyperdivergent patients receiving orthodontic treatment: a pilot study[J]. Angle Orthod, 2018, 88(5): 560-566.
5	McNamara JA Jr. Components of classⅡmalocclusion in children 8-10 years of age[J]. Angle Orthod, 1981, 51(3): 177-202.
6	Clark WJ. The twin block technique. A functional orthopedic appliance system[J]. Am J Orthod Dentofacial Orthop, 1988, 93(1): 1-18.
7	沈刚. 矢向引导型互阻式矫形技术治疗突面畸形—演化、变革与创新[J]. 上海口腔医学, 2015, 24(5): 513-518.
	Shen G. SGTB orthopedic regime to correct protrusive skeletal anomalies: a developmental path through evolution,renovation and innovation[J]. Shanghai J Stomatol, 2015, 24(5): 513-518.
8	Lucchese A, Carinci F, Brunelli G. Skeletal effects induced by twin block in therapy of class Ⅱ malocclusion[J]. Eur J Inflamm, 2012, 10(1): 83-87.
9	周力, 王艳民, 张澜, 等. 隐形功能矫治器矫治青少年Ⅱ类错畸形[J]. 华西口腔医学杂志, 2019, 37(3): 236-241.
	Zhou L, Wang YM, Zhang L, et al. Functional clear aligner treatment of classⅡmalocclusion in teenagers[J]. West China J Stomatol, 2019, 37(3): 236-241.
10	Page MJ, McKenzie JE, Bossuyt PM, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews[J]. BMJ, 2021, 372: n71.
11	Higgins JP, Thomas J, Chandler J, et al. Cochrane handbook for systematic reviews of interventions[M]. Chichester: John Wiley & Sons, 2019.
12	Methley AM, Campbell S, Chew-Graham C, et al. PICO, PICOS and SPIDER: a comparison study of specificity and sensitivity in three search tools for qualitative systematic reviews[J]. BMC Health Serv Res, 2014, 14: 579.
13	Sterne JA, Hernán MA, Reeves BC, et al. ROBINS-I: a tool for assessing risk of bias in non-randomised studies of interventions[J]. BMJ, 2016, 355: i4919.
14	陈雅莉. 隐形矫治器治疗早期骨性Ⅱ类下颌后缩的临床研究[D]. 昆明: 昆明医科大学, 2020.
	Chen YL. Clinical study on the treatment of early skeletal ClassⅡpatients with invisible aligner[D]. Kunming: Kunming Medical University, 2020.
15	杜雨乐, 赵刚, 李晓光. 无托槽隐形矫治器和Twin-block矫治器矫治安氏Ⅱ1类下颌后缩的疗效对比[J]. 黑龙江医药科学, 2020, 43(5): 60-63.
	Du YL, Zhao G, Li XG. Without braces stealth rectification and Twin-block correctional implement correct Angle classⅡdivision 1 mandibular retraction clinical comparative study[J]. Heilongjiang Med Pharma, 2020, 43(5): 60-63.
16	孟耀, 刘曼. 青少年患者应用隐形矫治器MA治疗早期下颌后缩的临床研究[J]. 黑龙江医学, 2020, 44(1): 47-50.
	Meng Y, Liu M. Clinical study of the invisible aligner (mandibular advancement, MA) appliance in the treatment of teenagers with mandibular retrusion[J]. Heilongjiang Med J, 2020, 44(1): 47-50.
17	Caruso S, Nota A, Caruso S, et al. Mandibular advancement with clear aligners in the treatment of skeletal ClassⅡ. A retrospective controlled study[J]. Eur J Paediatr Dent, 2021, 22(1): 26-30.
18	杜欣. 隐形下颌前导矫治器与双垫矫治器治疗青少年骨性Ⅱ类错临床疗效的对比研究[D]. 南昌: 南昌大学, 2021.
	Du X. A Comparative study of efficacy between invisible mandibular advancement appliance and Twin-Block appliance in the treatment of adolescent skeletal classⅡmalocclusions[D]. Nanchang: Nanchang University, 2021.
19	李阳, 王斌. 无托槽隐形矫治器和Forsus矫治器治疗下颌后缩患者的疗效[J]. 中国医疗美容, 2021, 11(1): 85-88.
	Li Y, Wang B. Comparison of the efficacy of invisible appliance and Forsus appliance in the treatment of patients with mandibular retrusion[J]. China Med Cosmetol, 2021, 11(1): 85-88.
20	刘潇, 周洁, 龙文, 等. 隐适美MA与Twin-block功能矫治器治疗青少年骨性Ⅱ类下颌后缩的临床效果[J]. 中国医药科学, 2021, 11(4): 209-211, 215.
	Liu X, Zhou J, Long W, et al.Observation on the clinical efficacy of invisalign MA and Twin-block functional orthopedic appliances in the treatment of juvenile skeletal classⅡmandibular retrusion[J]. China Med Pharm, 2021, 11(4): 209-211, 215.
21	吕亮. Twinblock与隐形功能矫治器的疗效对比研究[D]. 沈阳: 中国医科大学, 2021.
	Lü L. Comparative study on the efficacy of Twinblock and invisible functional appliance[D]. Shenyang: China Medical University, 2021.
22	于晓艺, 陈思宇, 李慧, 等. 隐形下颌前导矫治器治疗骨性Ⅱ类效果研究[J]. 口腔医学, 2022, 42(9): 813-817.
	Yu XY, Chen SY, Li H, et al. Study on the effect of invisible mandibular-advancement appliance in the treatment of skeletal cassⅡpatients[J]. Stomatology, 2022, 42(9): 813-817.
23	Lund DI, Sandler PJ. The effects of Twin Blocks: a prospective controlled study[J]. Am J Orthod Dentofacial Orthop, 1998, 113(1): 104-110.
24	Mills CM, McCulloch KJ. Treatment effects of the twin block appliance: a cephalometric study[J]. Am J Orthod Dentofacial Orthop, 1998, 114(1): 15-24.
25	牛亦睿, 周洪. 功能矫治器对骨性Ⅱ类错下颌骨生长作用的系统研究[J]. 华西口腔医学杂志, 2011, 29(4): 384-388.
	Niu YR, Zhou H. Effect on functional appliances on mandibular growth on skeletal ClassⅡmalocclusion: a systematic review[J]. West China J Stomatol, 2011, 29(4): 384-388.
26	Ravera S, Castroflorio T, Galati F, et al. Short term dentoskeletal effects of mandibular advancement clear aligners in ClassⅡgrowing patients. A prospective controlled study according to STROBE guidelines[J]. Eur J Paediatr Dent, 2021, 22(2): 119-124.
27	沈刚. 突面畸形分类的原理与临床意义[J]. 上海口腔医学, 2016, 25(2): 129-135.
	Shen G. The classification of malocclusions with facial prognathism and its clinical implications[J]. Shanghai J Stomatol, 2016, 25(2): 129-135.
28	Zybutz T, Drummond R, Lekic M, et al. Investigation and comparison of patient experiences with removable functional appliances[J]. Angle Orthod, 2021, 91(4): 490-495.
29	DiBiase AT, Lucchesi L, Qureshi U, et al. Post-treatment cephalometric changes in adolescent patients with ClassⅡmalocclusion treated using two different functional appliance systems for an extended time period: a randomi-zed clinical trial[J]. Eur J Orthod, 2020, 42(2): 135-143.
30	沈刚. SGTB矫形诱发髁突改建的生物机制及临床意义[J]. 上海口腔医学, 2018, 27(3): 225-229.
	Shen G. Condylar adaptation triggered by SGTB orthopedic therapy—Biological mechanism and clinical significance[J]. Shanghai J Stomatol, 2018, 27(3): 225-229.
31	Bartolucci ML, Bortolotti F, Martina S, et al. Dental and skeletal long-term side effects of mandibular advancement devices in obstructive sleep apnea patients: a systematic review with meta-regression analysis[J]. Eur J Orthod, 2019, 41(1): 89-100.
32	李娟, 乔旖旎, 蒋福林, 等. 时代天使A6无托槽隐形矫治下颌后缩患者对下前牙的控制[C]//2017年国际正畸大会暨第十六次全国口腔正畸学术会议. 上海, 2017.
	Li J, Qiao YN, Jiang FL, et al. Control over mandibular anterior teeth in patients with mandibular retrusion trea-ted with Damon Clear self-ligating brackets[C]//The 2017 International Orthodontic Conference and the 16th National Conference on Orthodontics. Shanghai, 2017.
33	Ruf S, Pancherz H. Temporomandibular joint growth adaptation in Herbst treatment: a prospective magnetic resonance imaging and cephalometric roentgenographic study[J]. Eur J Orthod, 1998, 20(4): 375-388.
34	宫耀, 沈刚. 变异Herbst矫治器的临床应用与评价[J]. 上海口腔医学, 2004, 13(1): 10-12.
	Gong Y, Shen G. A clinical study on improved herbst appliance[J]. Shanghai J Stomatol, 2004, 13(1): 10-12.

作者	研究类型	平均年龄/岁	治疗时间/月	样本量	干预（对照）措施	结局指标	质量评价
陈雅莉^[14]	CCT	T：10.26±1.10 C：11.12±1.45	10.97±1.01 11.57±0.70	7M/8F 9M/6F	隐适美MA Twin-block矫治器	SNA、SNB、ANB、SN/MP、L1-MP、U1-SN、Co-Go、Go-Pog	低风险
杜雨乐等^[15]	CCT	T：12.6 C：13.1	- -	7M/4F 5M/6F	隐适美MA Twin-block矫治器	SNA、SNB、ANB、FH/MP、L1-NB、U1-SN、Co-Go、Go-Pog、OJ	中风险
孟耀等^[16]	CCT	T：10-12 C：10-12	- -	10 10	隐适美MA Twin-block矫治器	SNA、SNB、ANB、FH/MP、L1-NB、U1-NA	中风险
Caruso等^[17]	CCT	T：10±1.05 C：10±1.05	- -	5M/5F 5M/5F	隐适美MA Twin-block矫治器	SNA、SNB、ANB、FH/MP、L1-GoMe、U1-ANSPNS	中风险
杜欣^[18]	CCT	T：10-14 C：10-14	- -	7M/7F 8M/7F	隐适美MA Twin-block矫治器	SNA、SNB、ANB、SN/Pg-MC、Ar-Go、Go-Gn、OJ	中风险
李阳等^[19]	CCT	T：12.1±0.9 C：11.6±1.2	≥8.7 6~9	6M/4F 8M/4F	隐适美MA Forsus矫治器	SNA、SNB、ANB、SN/MP、L1-MP、U1-SN、OJ	中风险
刘潇等^[20]	CCT	T：11.0±1.0 C：11.0±1.0	- -	17M/13F 15M/15F	隐适美MA Twin-block矫治器	SNA、SNB、ANB、SN/GoGn、U1-SN、OJ	中风险
吕亮^[21]	CCT	T：11.33±1.49 C：11.31±1.25	17.92±4.27 17.00±7.23	5M/7F 9M/10F	隐适美MA Twin-block矫治器	SNA、SNB、ANB、SN/GoGn、L1-GoGn、U1-SN、Go-Me、OJ	低风险
于晓艺等^[22]	CCT	T：11.5 C：11.1	11.1 10.9	8M/13F 18M/10F	时代天使A6 Twin-block矫治器	SNA、SNB、ANB、SN/MP、L1-MP、U1-SN、Ar-Go、Go-Gn、OJ	低风险
