快速烧结和低温老化对高透氧化锆半透性的影响

doi:10.7518/hxkq.2024.2023249

华西口腔医学杂志 ›› 2024, Vol. 42 ›› Issue (1): 62-66.doi: 10.7518/hxkq.2024.2023249

快速烧结和低温老化对高透氧化锆半透性的影响

李燕¹^,²^,³(), 钟梦怡¹^,²^,³, 杨瑛¹^,²^,³()

^1.南昌大学附属口腔医院, 南昌 330006
^2.江西省口腔生物医学重点实验室, 南昌 330006
^3.江西省口腔疾病临床医学研究中心, 南昌 330006

收稿日期:2023-08-09 修回日期:2023-12-07 出版日期:2024-02-01 发布日期:2024-01-12
通讯作者: 杨瑛 E-mail:1150185328@qq.com;yangying27@tom.com
作者简介:李燕，医师，硕士，E-mail：1150185328@qq.com

Effect of speed sintering and aging on the translucency of high-translucent zirconia

Li Yan¹^,²^,³(), Zhong Mengyi¹^,²^,³, Yang Ying¹^,²^,³()

^1.The Affiliated Stomatological Hospital, Jiangxi Medical College, Nanchang University, Nanchang 330006, China
^2.Jiangxi Province Key Laboratory of Oral Biomedicine, Nanchang 330006, China
^3.Jiangxi Province Clinical Research Center for Oral Disease, Nanchang 330006, China

Received:2023-08-09 Revised:2023-12-07 Online:2024-02-01 Published:2024-01-12
Contact: Yang Ying E-mail:1150185328@qq.com;yangying27@tom.com

摘要/Abstract

摘要：

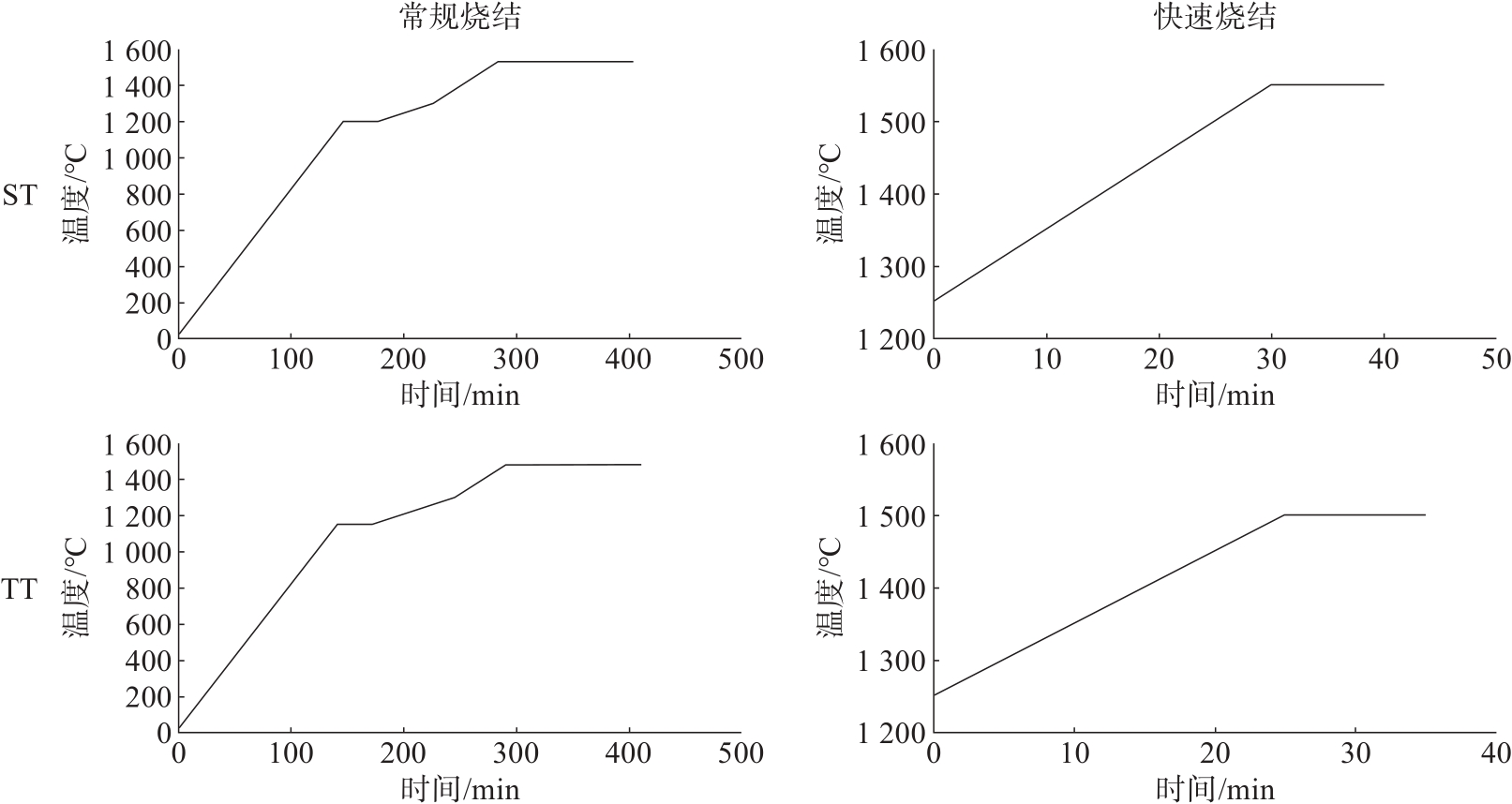

目的评估快速烧结和低温老化对高透氧化锆半透性的影响。方法利用常规烧结和快速烧结分别烧结高强氧化锆ST和高透氧化锆TT，分别进行0、5和20 h的低温老化处理后，采用Shade Eye NCC电脑比色仪在标准黑白背景下测量色彩学特征参数（L*、a*、b*值），使用半透明参数（TP）评估材料半透明性。结果快速烧结会降低ST的TP值，会升高TT的TP值。低温老化对TT的TP值没有影响；常规烧结的ST的TP值随着老化时间的延长降低，快速烧结组没有显著变化。结论快速烧结会降低高强氧化锆的半透性，改善高透氧化锆的半透性。低温老化对高透氧化锆的半透性没有影响。就半透性而言，建议用快速烧结的方式烧结高透氧化锆。

关键词: 高透氧化锆, 快速烧结, 低温老化, 半透明性

Abstract:

Objective This work aimed to evaluate the effect of speed sintering and low-temperature degradation on the translucency of high-translucent zirconia. Methods The ST and TT specimens were randomly divided into two groups depending on the sintering process: conventional sintering and speed sintering. The sintered specimens were divided into three subgroups according to the aging time: aged for 0, 5, and 20 h. Chromatic parameters (L*, a*, and b* values) were measured by Shade Eye NCC computer colorimeter in a dark environment under black and white background, and the translucency parameter (TP) was used to evaluate the translucency of zirconia. Results Speed sintering may decrease the TP of ST and increase the TP of TT. As for the effect of low-temperature degradation on the translucency of zirconia, the TP of ST decreased with the extension of aging time, and no significant difference was found in rapid sintering ST. Although the TP of TT decreased, no statistical difference was observed. Conclusion Speed sintering may decrease the translucency of high-strength zirconia and increase the translucency of high-translucent zirconia. Low-temperature degradation had no effect on the translucency of high-translucent zirconia. Speed sintering can be recommended for high-translucent zirconia in terms of translucency.

Key words: high-translucent zirconia, speed sintering, low-temperature degradation, translucency

中图分类号:

R783.1

李燕, 钟梦怡, 杨瑛. 快速烧结和低温老化对高透氧化锆半透性的影响[J]. 华西口腔医学杂志, 2024, 42(1): 62-66.

Li Yan, Zhong Mengyi, Yang Ying. Effect of speed sintering and aging on the translucency of high-translucent zirconia[J]. West China Journal of Stomatology, 2024, 42(1): 62-66.

图/表 4

参考文献 19

1	万乾炳. 口腔氧化锆修复材料分代之我见[J]. 国际口腔医学杂志, 2021, 48(2): 125-128.
	Wan QB. My opinion on the generations of dental zirconia materials[J]. Int J Stomatol, 2021, 48(2): 125-128.
2	Johnston WM, Ma T, Kienle BH. Translucency parameter of colorants for maxillofacial prostheses[J]. Int J Pro-sthodont, 1995, 8(1): 79-86.
3	Kurtulmus-Yilmaz S, Ulusoy M. Comparison of the tran-slucency of shaded zirconia all-ceramic systems[J]. J Adv Prosthodont, 2014, 6(5): 415-422.
4	Lawson NC, Maharishi A. Strength and translucency of zirconia after high-speed sintering[J]. J Esthet Restor Dent, 2020, 32(2): 219-225.
5	Juntavee N, Attashu S. Effect of different sintering process on flexural strength of translucency monolithic zirconia[J]. J Clin Exp Dent, 2018, 10(8): e821-e830.
6	Zhang Y. Making yttria-stabilized tetragonal zirconia translucent[J]. Dent Mater, 2014, 30(10): 1195-1203.
7	Liu H, Inokoshi M, Nozaki K, et al. Influence of high-speed sintering protocols on translucency, mechanical properties, microstructure, crystallography, and low-temperature degradation of highly translucent zirconia[J]. Dent Mater, 2022, 38(2): 451-468.
8	Čokić SM, Cóndor M, Vleugels J, et al. Mechanical properties-translucency-microstructure relationships in commercial monolayer and multilayer monolithic zirconia ceramics[J]. Dent Mater, 2022, 38(5): 797-810.
9	Ersoy NM, Aydoğdu HM, Değirmenci BÜ, et al. The effects of sintering temperature and duration on the flexu-ral strength and grain size of zirconia[J]. Acta Biomater Odontol Scand, 2015, 1(2/4): 43-50.
10	Hafezeqoran A, Sabanik P, Koodaryan R, et al. Effect of sintering speed, aging processes, and different surface treatments on the optical and surface properties of monolithic zirconia restorations[J]. J Prosthet Dent, 2023, 130(6): 917-926.
11	Zhang CY, Agingu C, Tsoi JKH, et al. Effects of aging on the color and translucency of monolithic translucent Y-TZP ceramics: a systematic review and meta-analysis of in vitro studies[J]. Biomed Res Int, 2021, 2021: 8875023.
12	Fathy SM, El-Fallal AA, El-Negoly SA, et al. Translucency of monolithic and core zirconia after hydrothermal aging[J]. Acta Biomater Odontol Scand, 2015, 1(2/4): 86-92.
13	Inokoshi M, Zhang F, De Munck J, et al. Influence of sintering conditions on low-temperature degradation of dental zirconia[J]. Dent Mater, 2014, 30(6): 669-678.
14	Kohorst P, Borchers L, Strempel J, et al. Low-temperature degradation of different zirconia ceramics for dental applications[J]. Acta Biomater, 2012, 8(3): 1213-1220.
15	Park MG. Effect of low-temperature degradation treatment on hardness, color, and translucency of single la-yers of multilayered zirconia[J]. J Prosthet Dent, 2023. doi: 10.1016/j.prosdent.2023.01.023 .
16	Zhang F, Inokoshi M, Batuk M, et al. Strength, toughness and aging stability of highly-translucent Y-TZP ceramics for dental restorations[J]. Dent Mater, 2016, 32(12): e327-e337.
17	Choi YS, Kang KH, Att W. Effect of aging process on some properties of conventional and multilayered translucent zirconia for monolithic restorations[J]. Ceram Int, 2020, 46(2): 1854-1868.
18	Jansen JU, Lümkemann N, Letz I, et al. Impact of high-speed sintering on translucency, phase content, grain sizes, and flexural strength of 3Y-TZP and 4Y-TZP zirconia materials[J]. J Prosthet Dent, 2019, 122(4): 396-403.
19	Attachoo S, Juntavee N. Role of sintered temperature and sintering time on spectral translucence of nano-crystal monolithic zirconia[J]. J Clin Exp Dent, 2019, 11(2): e146-e153.

实验处理	0 h	5 h	20 h	P值
P值	0.000	0.000	0.000
常规烧结	9.12±0.45^aA	8.53±0.39^aB	7.93±0.23^aC	0.000
快速烧结	7.27±0.34^bA	7.20±0.31^bA	7.25±0.24^bA	0.100

实验处理	0 h	5 h	20 h	P值
P值	0.000	0.491	0.061
常规烧结	9.13±0.32^aA	9.47±0.43^aA	9.36±0.31^aA	0.469
快速烧结	10.05±0.31^bA	9.60±0.61^aA	9.70±0.35^aA	0.267

[1]	王剑, 杨林新. 氧化锆全冠的临床应用原则及新进展[J]. 华西口腔医学杂志, 2024, 42(2): 135-141.
[2]	李思诺, 张璐瑶, 梁珊珊, 刘玉强, 邢文忠. 瓷材料种类及厚度对椅旁可切削全瓷冠遮色能力的影响[J]. 华西口腔医学杂志, 2024, 42(1): 56-61.
[3]	胡格, 张新艳, 赵家鑫, 周传健, 吴峻岭. 新型抗菌自修复自粘接树脂水门汀的制备及性能研究[J]. 华西口腔医学杂志, 2020, 38(3): 256-262.
[4]	王晓曦,姚烁,周传健,吴峻岭. 自修复高分子材料在牙科领域的应用[J]. 华西口腔医学杂志, 2020, 38(1): 75-79.
[5]	薛晶, 杨壁娜. 复合树脂预热的研究现状和临床应用[J]. 华西口腔医学杂志, 2019, 37(6): 571-576.
[6]	张杨安,关为群,李群,刘玲玲. 辛伐他汀-胶原蛋白复合海绵用于大鼠磨牙直接盖髓的实验研究[J]. 华西口腔医学杂志, 2019, 37(2): 155-161.
[7]	范梦琳,何利邦,李继遥. 直接盖髓应用材料的研究进展[J]. 华西口腔医学杂志, 2018, 36(6): 675-680.
[8]	张婧婷,苏军,袁艳波,和丽佳,张文云. 体层树脂厚度对聚醚醚酮-Crea.lign修复体颜色的影响[J]. 华西口腔医学杂志, 2018, 36(5): 528-531.
[9]	丁鑫鑫, 周延民, 相星辰, 孟琳, 秦勤, 叶珊. 壳聚糖复合材料在骨组织工程中的研究进展[J]. 华西口腔医学杂志, 2018, 36(4): 441-446.
[10]	王如意, 赵志河, 李宇. 正畸用热压膜材料现状与展望[J]. 华西口腔医学杂志, 2018, 36(1): 87-91.
[11]	吴金双, 周磊, 邢鹤琳, 王喆, 董超芳, 杨瑟飞. Al₂O₃-氮化硼纳米晶包覆的3%氧化钇稳定的四方氧化锆多晶复合陶瓷粉体的制备[J]. 华西口腔医学杂志, 2017, 35(5): 461-467.
[12]	卢枳岑, 谢海峰, 章非敏, 张怀勤, 陈晨. 磷酸酯类单体与氧化锆间化学反应模型的建立及作用机制[J]. 华西口腔医学杂志, 2017, 35(2): 145-149.

快速烧结和低温老化对高透氧化锆半透性的影响

Effect of speed sintering and aging on the translucency of high-translucent zirconia

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 4

参考文献 19

相关文章 12

编辑推荐

Metrics

本文评价
