三斜磷钙石糊剂封闭牙本质小管的体外研究

doi:10.7518/hxkq.2021.06.007

摘要/Abstract

摘要： 目的

体外评价三斜磷钙石糊剂对牙本质小管的封闭作用，为牙本质敏感症的治疗提供新的手段。

方法

将氧化钙、氯化锶、聚乙二醇、磷酸按一定的比例共混，置于行星球磨机中球磨进行反应，调节pH值分别获得三斜磷钙石糊剂和羟磷灰石糊剂。扫描电子显微镜（SEM）观察糊剂的形态，X射线衍射（XRD）和傅里叶变换红外光谱仪（FTIR）分析糊剂的结构和成分。选择拔除的人第三磨牙进行脱矿处理，构建牙本质敏感症体外研究模型。样本随机分为4组：空白对照组（使用蒸馏水处理）、酪蛋白磷酸肽-无定形磷酸钙（CPP-ACP）组、三斜磷钙石糊剂组、羟磷灰石糊剂组。采用各组分别对应的再矿化剂涂刷样本表面7 d。SEM观察牙本质表面及断面形态，显微硬度计分析矿化前后牙本质显微硬度，XRD分析矿化后样品表面沉积物。

结果

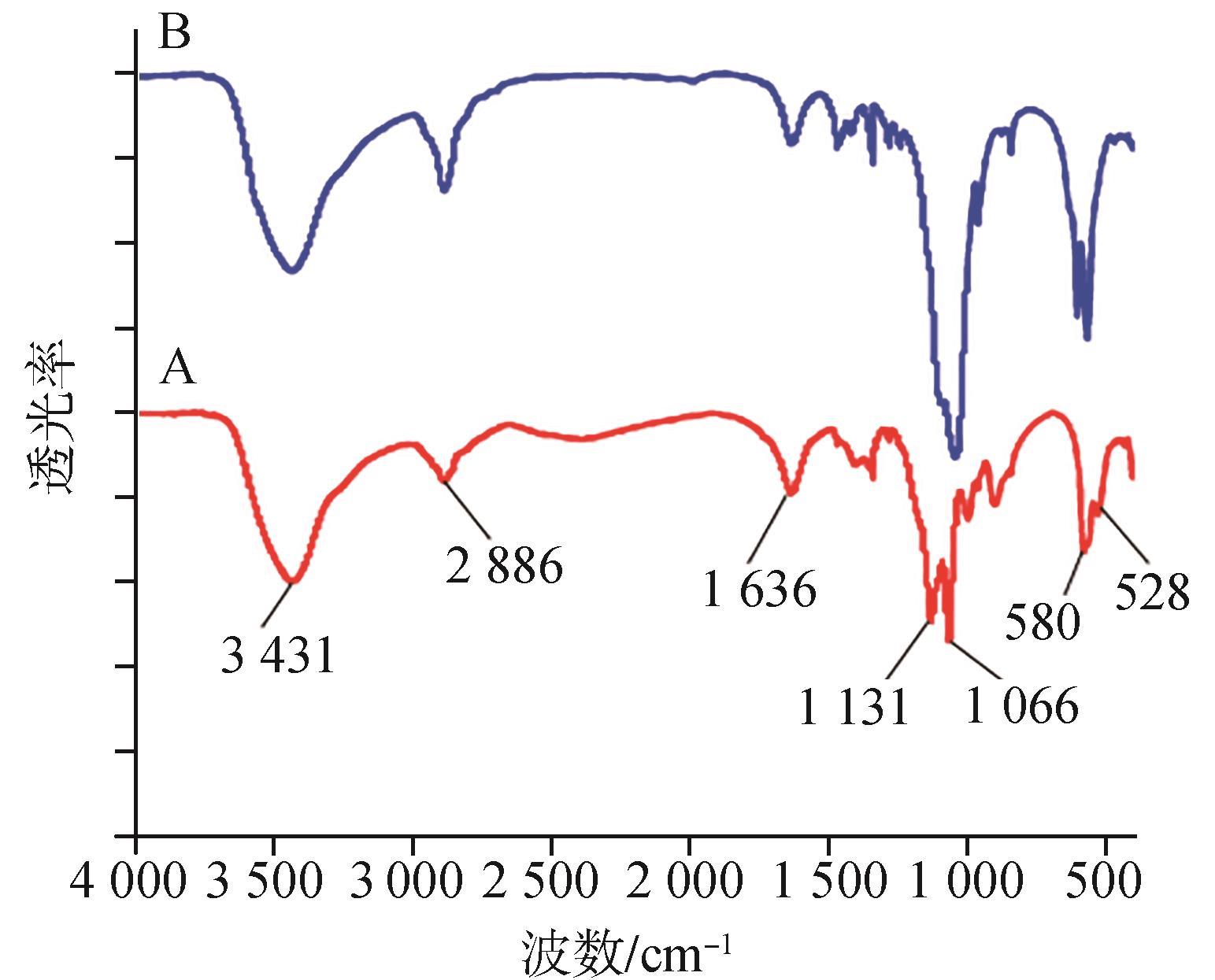

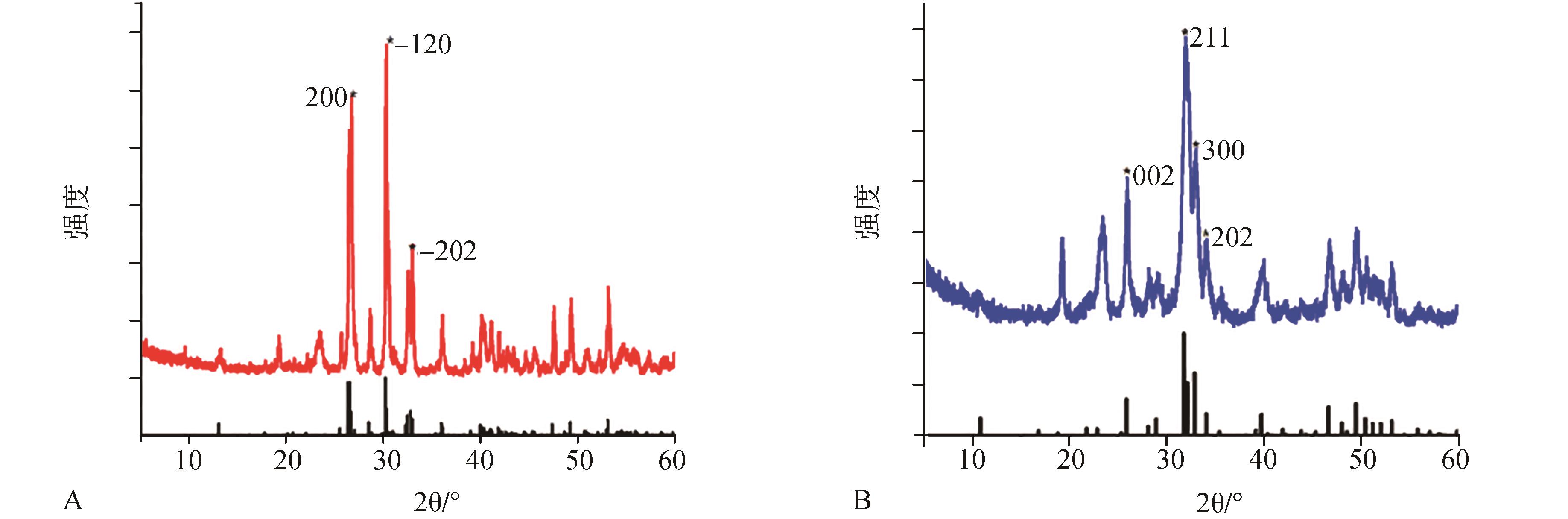

XRD和FTIR结果显示合成的三斜磷钙石糊剂成分主要为三斜磷钙石，羟磷灰石糊剂成分主要为羟磷灰石；SEM结果显示合成的糊剂晶体颗粒大小数十到数百纳米的微纳结构。三斜磷钙石糊剂组和羟磷灰石糊剂组均能在牙本质表面生成较厚的矿化层，三斜磷钙石糊剂组在牙本质小管内矿化深度较羟磷灰石糊剂组深。羟磷灰石糊剂组的显微硬度大于三斜磷钙石糊剂组，差异存在统计学意义（P<0.05）。

结论

三斜磷钙石能有效地封堵暴露的牙本质小管，有望应用于牙本质敏感症的治疗。

关键词: 三斜磷钙石, 羟磷灰石, 牙本质敏感症, 酪蛋白磷酸肽-无定形磷酸钙

Abstract: Objective

This study was performed to evaluate the occlusion of monetite paste on dentine tubule and provide a new potential method for treating dentine hypersensitivity.

Methods

Calcium oxide, strontium chloride, and polyethylene glycol phosphate were mixed in a certain proportion and ground in a planetary ball mill. The reaction was carried out by adjusting the pH to obtain monetite and hydroxyapatite paste. The morphological characteristics of the paste were observed through scanning electron microscope (SEM). The structure and composition were analyzed through X-ray diffraction (XRD) and Fourier transform infrared spectrometer (FTIR). The extracted third molar was selected to undergo demineralization to establish the in vitro study model of dentin hypersensitivity. The samples were randomly divided into four groups: blank control group (treated with distilled water), casein peptide phosphate-amorphic calcium phosphate (CPP-ACP) group, monetite paste group, and hydroxyapatite paste group. Each group was used to scrub the dentin surface with the corresponding materials for 7 days. The morphological characteristics of the dentin surface and section were observed through SEM, the microhardness of the dentin before and after mineralization was analyzed with a microhardness tester, and the composition of the deposits on the surface of the mineralized samples was examined through XRD.

Results

XRD and FTIR showed that the composition of the paste was mainly monetite, and the composition of hydroxyapatite paste was mainly composed of hydroxyapatite. SEM revealed that the size of the crystal particles of the synthesized paste was tens to hundreds of nanometers. Monetite and hydroxyapatite paste could produce a thicker mineralization layer on the dentin surface, and the mineralization of the dentin tubules of monetite was deeper than that of hydroxyapatite paste. The microhardness of the monetite paste group was significantly less than those of the hydroxyapatite paste groups (P<0.05).

Conclusion

Monetite paste could effectively block the exposed dentin tubules and be used for treating dentin hypersensitivity.

Key words: monetite, hydroxyapatite, dentinal hypersensitivity, casein peptide phosphate-amorphic calcium phosphate

中图分类号:

R 781.2

汤皓, 朱亚文, 朱家祥, 李全利. 三斜磷钙石糊剂封闭牙本质小管的体外研究[J]. 华西口腔医学杂志, 2021, 39(6): 667-674.

Tang Hao, Zhu Yawen, Zhu Jiaxiang, Li Quanli. Occluding dentin tubules with monetite paste in vitro[J]. West China Journal of Stomatology, 2021, 39(6): 667-674.

图/表 7

图 1

图 2

图 3

图 4

图 5

图 6

表 1

参考文献 29

1	中华口腔医学会口腔预防医学专业委员会牙本质敏感专家组 . 牙本质敏感的诊断和防治指南(2019修订版)[J]. 中华口腔医学杂志, 2019, 54(4): 223-227.
	Expert Committee of Dentin Hypersensitivity, Society of Preventive Dentistry, Chinese Stomatological Association . Guideline for diagnosis, prevention and treatment of dentin hypersensitivity[J]. Chin J Stomatol, 2019, 54(4): 223-227.
2	Onwubu SC , Mhlungu S , Mdluli PS . In vitro evaluation of nanohydroxyapatite synthesized from eggshell waste in occluding dentin tubules[J]. J Appl Biomater Funct Mater, 2019, 17(2): 2280800019851764.
3	Yu J , Yang HY , Li K , et al . A novel application of nanohydroxyapatite/mesoporous silica biocomposite on treating dentin hypersensitivity: an in vitro study[J]. J Dent, 2016, 50: 21-29.
4	Liu XX , Tenenbaum HC , Wilder RS , et al . Pathogenesis, diagnosis and management of dentin hypersensitivity: an evidence-based overview for dental practitioners[J]. BMC Oral Health, 2020, 20(1): 220.
5	Liang KN , Xiao SM , Liu HL , et al . 8DSS peptide induced effective dentinal tubule occlusion in vitro [J]. Dent Mater, 2018, 34(4): 629-640.
6	West NX , Seong J , Davies M . Management of dentine hypersensitivity: efficacy of professionally and self-administered agents[J]. J Clin Periodontol, 2015, 42(): S256-S302.
7	Rezazadeh F , Dehghanian P , Jafarpour D . Laser effects on the prevention and treatment of dentinal hypersensitivity: a systematic review[J]. J Lasers Med Sci, 2019, 10(1): 1-11.
8	Wang ZJ , Ma X , Jiang T , et al . The dentin tubule occlusion effects of desensitizing agents and the stability a-gainst acids and brushing challenges[J]. Am J Dent, 2015, 28(3): 128-132.
9	Wang ZJ , Sa Y , Sauro S , et al . Effect of desensitising toothpastes on dentinal tubule occlusion: a dentine permeability measurement and SEM in vitro study[J]. J De-nt, 2010, 38(5): 400-410.
10	Jena A , Kala S , Shashirekha G . Comparing the effectiveness of four desensitizing toothpastes on dentinal tubule occlusion: a scanning electron microscope analysis[J]. J Conserv Dent, 2017, 20(4): 269-272.
11	Ma Q , Wang TD , Meng QF , et al . Comparison of in vitro dentinal tubule occluding efficacy of two different methods using a nano-scaled bioactive glass-containing desensitising agent[J]. J Dent, 2017, 60: 63-69.
12	Deliormanli AM . Investigation of in vitro mineralization of silicate-based 45S5 and 13-93 bioactive glasses in artificial saliva for dental applications[J]. Ceram Int, 2017, 43(4): 3531-3539.
13	Ashwini S , Swatika K , Kamala DN . Comparative evaluation of desensitizing efficacy of dentifrice containing 5% fluoro calcium phosphosilicate versus 5% calcium sodium phosphosilicate: a randomized controlled clinical trial[J]. Contemp Clin Dent, 2018, 9(3): 330-336.
14	Kruppke B , Farack J , Wagner AS , et al . Gelatine modified monetite as a bone substitute material: an in vitro assessment of bone biocompatibility[J]. Acta Biomater, 2016, 32: 275-285.
15	Nishad KV , Sureshbabu S , Komath M , et al . Synthesis and characterization of low dimensional bioactive monetite by solvent exchange method[J]. Mater Lett, 2017, 209(15): 19-22.
16	Yu Y , Stevensson B , Pujari-Palmer M , et al . The monetite structure probed by advanced solid-state NMR experimentation at fast magic-angle spinning[J]. Int J Mol Sci, 2019, 20(24): E6356.
17	Medvecky L , Stulajterova R , Giretova M , et al . Effect of tetracalcium phosphate/monetite toothpaste on dentin re-mineralization and tubule occlusion in vitro [J]. Dent Mater, 2018, 34(3): 442-451.
18	Shen C , Wu L , Chen Y . Efficient removal of fluoride from drinking water using well-dispersed monetite bundles inlaid in chitosan beads[J]. Chem Eng J, 2016, 303: 391-400.
19	ten Cate JM , Duijsters PP . Alternating demineralization and remineralization of artificial enamel lesions[J]. Ca-ries Res, 1982, 16(3): 201-210.
20	Karim BF , Gillam DG . The efficacy of strontium and potassium toothpastes in treating dentine hypersensitivity: a systematic review[J]. Int J Dent, 2013, 2013: 573258.
21	Fredholm YC , Karpukhina N , Brauer DS , et al . Influence of strontium for calcium substitution in bioactive glasses on degradation, ion release and apatite formation[J]. J R Soc Interface, 2012, 9(70): 880-889.
22	陈德敏, 傅远飞, 顾国珍, 等 . 掺锶羟磷灰石固溶体的制备及离解度测定[J]. 中国生物医学工程学报, 2001, 20(3): 278-280.
	Chen DM , Fu YF , Gu GZ , et al . Preparation and solubility of the solid solution of strontium substituted hydroxyapatite[J]. Chin J Biomed Eng, 2001, 20(3): 278-280.
23	Xiong Y , Zhang Y , Liu W , et al . Preparation of Sr-substituted hydroxyapatite nanorods for liquid crystal phase transition[J]. J Wuhan Univ Technol Mat Sci Edit, 2020, 35(2): 441-448.
24	傅远飞, 陈德敏 . 掺锶对羟磷灰石细胞毒性的影响[J]. 功能材料, 2008, 39(4): 645-646, 650.
	Fu YF , Chen DM . Effects of strontium on the cytotoxicity of hydroxyapatite[J]. J Funct Mater, 2008, 39(4): 645-646, 650.
25	Xia W , Qin T , Suska F , et al . Bioactive spheres: the way of treating dentin hypersensitivity[J]. ACS Biomater Sci Eng, 2016, 2(5): 734-740.
26	Wang PP , Li CH , Gong HY , et al . Effects of synthesis conditions on the morphology of hydroxyapatite nano-particles produced by wet chemical process[J]. Powder Technol, 2010, 203(2): 315-321.
27	朱庆霞, 徐琼琼, 罗民华 . 碳酸羟磷灰石的生物矿化研究[J]. 陶瓷学报, 2010, 31(2): 234-239.
	Zhu QX , Xu QQ , Luo MH . Study on biological minera-lization of hydroxyapatite[J]. J Cerma, 2010, 31(2): 234-239.
28	朱庆霞, 刘可春, 李双, 等 . 碳酸羟磷灰石对水中氟离子的吸附研究[J]. 陶瓷学报, 2017, 38(6): 898-903.
	Zhu QX , Liu KC , Li S , et al . Adsorption of fluoride ions in water by hydroxyapatite[J]. J Cerma, 2017, 38(6): 898-903.
29	罗菁菁, 唐旭炎, 李全利 . 酪蛋白磷酸肽-无定形磷酸钙促进牙再矿化的机制[J]. 国际口腔医学杂志, 2011, 38(6): 662-664, 669.
	Luo JJ , Tang XY , Li QL . Mechanism of casein phosphopeptide-amorphous calcium phosphate on tooth remineralization[J]. Int J Stomatol, 2011, 38(6): 662-664, 669.

项目	空白对照组	CPP-ACP组	三斜磷钙石糊剂组	羟磷灰石糊剂组
矿化前SMH1	36.74±3.93	37.10±2.19	37.24±3.55	37.02±3.10
矿化后SMH2	30.40±3.59	50.74±1.47	51.96±1.30	61.18±0.72
ΔSMH	-6.34±7.15	13.64±3.18	14.72±3.78	24.16±3.25
