Morphological study of distal furcation in mandibular first molars based on cone beam computed tomography images in Beijing population

doi:10.7518/hxkq.2024.2023348

Abstract

Abstract:

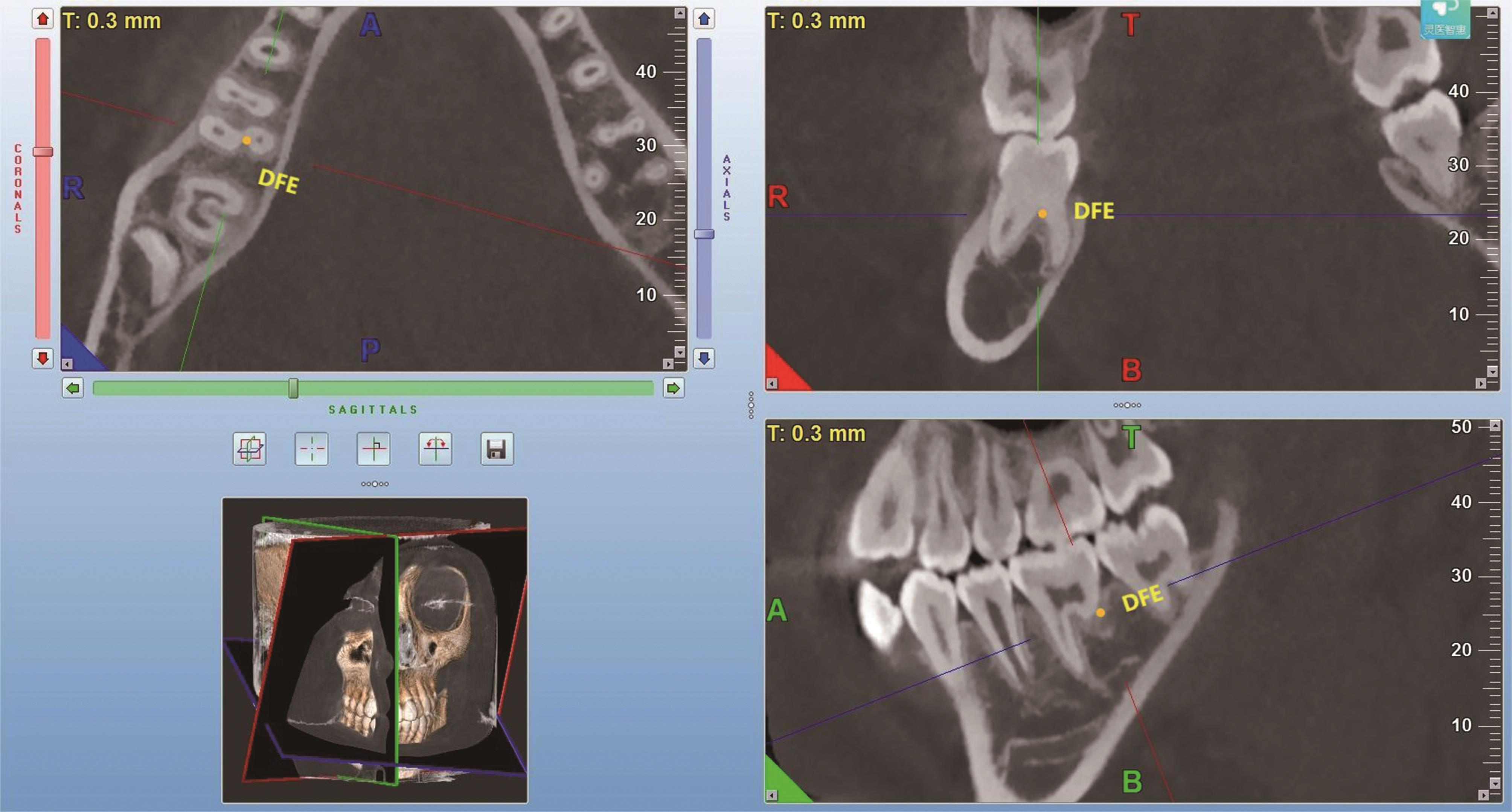

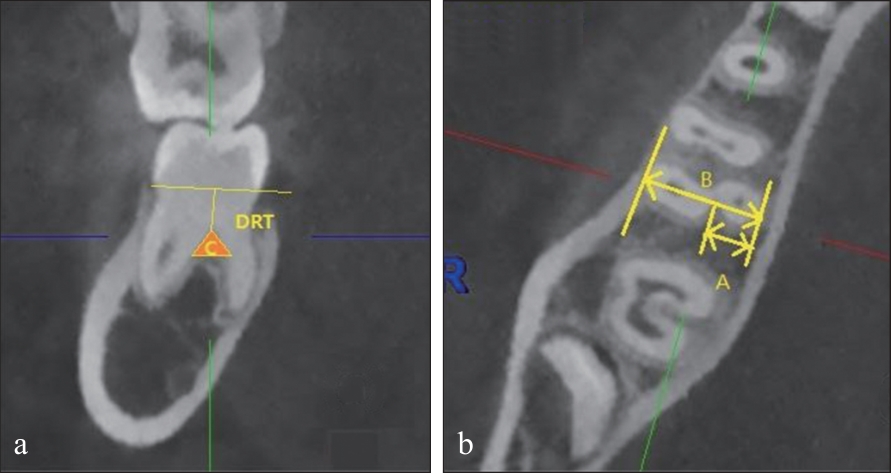

Objective This retrospective study explored the incidence of independent distal-lingual root (DLR) in mandibular first molars and the morphologic features of distal furcations through cone beam computed tomography (CBCT) in Beijing population. Methods A total of 401 CBCT images of both mandibular first molars existed were included. The sex of the patients, the incidence of DLR, the distal root trunk length (DRT), the locations of distal furcation entrance (DFE), and the separation angle of distal furcation (ADF) were recorded. Results The incidence rates of DLR were 33.2% on the subject level and 26.8% on the tooth level. The incidence of DLR was not different between genders but was higher on the right sides. The DRT values were 4.15 mm±1.02 mm. The ADF was 65.56°±11.56°. The DFE was located lingually, and 97.2% DFE was located more apically than buccal/lingual furcations. Conclusion A high incidence of DLR was found in the Beijing population. The DRT was longer than buccal and lingual sites. The DFE was located lingually with a wide separation. Understanding the morphological features of distal furcation can help clinicians to make proper treatment plans.

Key words: mandibular first molar, distal furcation, cone beam computed tomography

CLC Number:

R322.4⁺1

Zhu Jie, Liu Ya. Morphological study of distal furcation in mandibular first molars based on cone beam computed tomography images in Beijing population[J]. West China Journal of Stomatology, 2024, 42(3): 329-333.

Figures/Tables 4

References 21

1	Nibali L, Zavattini A, Nagata K, et al. Tooth loss in molars with and without furcation involvement—a systema-tic review and meta-analysis[J]. J Clin Periodontol, 2016, 43(2): 156-166.
2	Graetz C, Schützhold S, Plaumann A, et al. Prognostic factors for the loss of molars—an 18-years retrospective cohort study[J]. J Clin Periodontol, 2015, 42(10): 943-950.
3	孟焕新. 2018年牙周病和植体周病国际新分类简介[J]. 中华口腔医学杂志, 2019, 54(2): 73-78.
	Meng HX. 2018 world new classification of periodontal and peri-implant diseases and conditions[J]. Chin J Stomatol, 2019, 54(2): 73-78.
4	Plagmann HC, Holtorf S, Kocher T. A study on the imaging of complex furcation forms in upper and lower molars[J]. J Clin Periodontol, 2000, 27(12): 926-931.
5	Hou GL, Tsai CC. Types and dimensions of root trunk correlating with diagnosis of molar furcation involvements[J]. J Clin Periodontol, 1997, 24(2): 129-135.
6	Schäfer E, Breuer D, Janzen S. The prevalence of three-rooted mandibular permanent first molars in a German population[J]. J Endod, 2009, 35(2): 202-205.
7	Curzon ME. Three-rooted mandibular permanent molars in English Caucasians[J]. J Dent Res, 1973, 52(1): 181.
8	Ferraz JA, Pécora JD. Three-rooted mandibular molars in patients of Mongolian, Caucasian and Negro origin[J]. Braz Dent J, 1993, 3(2): 113-117.
9	Sperber GH, Moreau JL. Study of the number of roots and canals in Senegalese first permanent mandibular molars[J]. Int Endod J, 1998, 31(2): 117-122.
10	Zhang X, Xiong S, Ma Y, et al. A cone-beam computed tomographic study on mandibular first molars in a Chinese subpopulation[J]. PLoS One, 2015, 10(8): e0134919.
11	Ho DKL, Wong JHL, Pelekos G, et al. Prevalence and morphological characteristics of disto-lingual roots in mandibular first molars: a cone beam CT study with diagnostic and therapeutic implications[J]. Clin Oral Investig, 2021, 25(6): 4023-4030.
12	刘锐, 杜菡, 李刚. 北京地区人群下颌第一恒磨牙远中舌根发生率和根管弯曲度的CBCT研究[J]. 北京口腔医学, 2022, 30(2): 111-114.
	Liu R, Du H, Li G. Prevalence and root curvature of distolingual roots in mandibular first molars in Beijing area population: three-dimensional analysis using cone-beam computed tomography images[J]. Beijing J Stomatol, 2022, 30(2): 111-114.
13	Kim Y, Roh BD, Shin Y, et al. Morphological characte-ristics and classification of mandibular first molars ha-ving 2 distal roots or canals: 3-dimensional biometric analysis using cone-beam computed tomography in a Korean population[J]. J Endod, 2018, 44(1): 46-50.
14	Aung NM, Myint KK. Three-rooted permanent mandibular first molars: a meta-analysis of prevalence[J]. Int J Dent, 2022, 2022: 9411076.
15	Woelber JP, Fleiner J, Rau J, et al. Accuracy and usefulness of CBCT in periodontology: a systematic review of the literature[J]. Int J Periodont Restorat Dent, 2018, 38(2): 289-297.
16	Walter C, Schmidt JC, Dula K, et al. Cone beam compu-ted tomography (CBCT) for diagnosis and treatment plan-ning in periodontology: a systematic review[J]. Quintessence Int, 2016, 47(1): 25-37.
17	张智玲, 贾彦, 张研, 等. 口腔颌面锥形束CT对上颌磨牙根分叉病变治疗决策的影响[J]. 中华口腔医学杂志, 2018, 53(8): 529-532.
	Zhang ZL, Jia Y, Zhang Y, et al. Comparison of clinical values in decision making between cone beam CT and conventional approach in furcation involvement of maxillary molar[J]. Chin J Stomatol, 2018, 53(8): 529-532.
18	Hou GL, Hung CC, Tsai CC, et al. Topographic study of root trunk type on Chinese molars with Class Ⅲ furcation involvements: molar type and furcation site[J]. Int J Periodont Restorat Dent, 2005, 25(2): 173-179.
19	王丽霞, 申静, 韩磊, 等. 下颌第一磨牙根分叉区解剖形态的CBCT研究[J]. 口腔医学研究, 2018, 34(7): 738-741.
	Wang LX, Shen J, Han L, et al. Cone beam computed tomography study on furcation anatomy of mandibular fir-st molars[J]. J Oral Sci Res, 2018, 34(7): 738-741.
20	Avila-Ortiz G, De Buitrago JG, Reddy MS. Periodontal regeneration—furcation defects: a systematic review from the AAP Regeneration Workshop[J]. J Periodontol, 2015, 86(2 ): S108-S130.
21	Bowers GM, Schallhorn RG, McClain PK, et al. Factors influencing the outcome of regenerative therapy in mandibular ClassⅡfurcations: partⅠ[J]. J Periodontol, 2003, 74(9): 1255-1268.

参考项目		有DLR	无DLR	DLR发生率	P值
性别	男性	59	116	33.7%	-
	女性	74	152	32.7%	0.838
	合计	133	268	33.2%	-
方位	左侧	93	308	23.1%	-
	右侧	122	279	30.4%^a	0.021*
	合计	215	587	26.8%	-

测量指标	例数	平均值	最小值	最大值
DRT/mm	202	4.15±1.02	2.2	9.2
DFE-舌侧牙体边缘的距离/mm	215	3.51±0.49	2.3	4.9
DFE颊舌向位置的比例	215	0.36±0.04	0.22	0.46
ADF/°	214	65.56±11.56	38.5	116.6
