关节盘形态学特征及盘髁角度对可复性关节盘前移位保守治疗效果的初步评价

doi:10.7518/hxkq.2025.2024313

华西口腔医学杂志 ›› 2025, Vol. 43 ›› Issue (3): 406-415.doi: 10.7518/hxkq.2025.2024313

关节盘形态学特征及盘髁角度对可复性关节盘前移位保守治疗效果的初步评价

宋佳璐(), 肖琦钦, 岑啸()

口腔疾病防治全国重点实验室国家口腔医学中心国家口腔疾病临床医学研究中心四川大学华西口腔医院颞下颌关节科，成都 610041

收稿日期:2024-08-23 修回日期:2024-12-11 出版日期:2025-06-01 发布日期:2025-06-10
通讯作者: 岑啸 E-mail:3400816728@qq.com;cenx@scu.edu.cn
作者简介:宋佳璐，学士，E-mail：3400816728@qq.com
基金资助:
四川大学华西口腔医学院（华西口腔医院）科研经费资助项目(RCDWJS2023-17)

Effect of disc morphological features and disc-condyle angles on conservative treatment for anterior disc displacement with reduction

Song Jialu(), Xiao Qiqin, Cen Xiao()

State Key Laboratory of Oral Diseases & National Center for Stomatology & National Clinical Research Center for Oral Diseases & Dept. of Temporomandibular Joint, West China Hospital of Stomatology, Sichuan University, Chengdu 610041, China

Received:2024-08-23 Revised:2024-12-11 Online:2025-06-01 Published:2025-06-10
Contact: Cen Xiao E-mail:3400816728@qq.com;cenx@scu.edu.cn
Supported by:
Scientific Research Foundation of West China School of Stomatology (West China Hospital of Stomatology), Sichuan University(RCDWJS2023-17)

摘要/Abstract

摘要：

目的评估治疗前关节盘形态学特征及盘髁角度对前伸再定位咬合板（ARS）治疗可复性关节盘前移位（ADDwR）效果的影响。方法根据纳入排除标准共纳入11例ADDwR患者，分析ARS治疗前后核磁共振成像影像资料及Helkimo指数，评估治疗前患者关节盘长度、厚度、形态分类对患者治疗后临床症状及关节盘形态学特征、盘髁角度及临床症状的影响。结果经ARS治疗，所有ADDwR患者主观症状指数（Ai）和临床症状指数（Di）下降，关节盘长度增加，厚度降低。其中轻微前移位者或1型关节盘者Ai降至0且Di下降最明显，轻度前移位者（至8.65 mm±1.79 mm）或5型关节盘者（至10.71 mm±2.62 mm）长度增长最明显，轻微前移位者关节盘厚度降低最明显（至3.08 mm±0.51 mm）。结论 ARS治疗效果与关节盘移位程度及形态特征相关，为临床治疗决策提供了依据。

关键词: 前伸再定位咬合板, 可复性关节盘前移位, 关节盘, 核磁共振成像, 治疗效果

Abstract:

Objective This study aimed to evaluate the effect of disc morphology and disc-condyle angle on the treatment of anterior repositioning splint (ARS) for anterior disc displacement with reduction (ADDwR). Methods On the basis of the inclusion and exclusion criteria, a total of 11 patients diagnosed with ADDwR were included. The effects of changes in disc length, thickness, and morphology classifications on the clinical symptoms, disc morphology parameters, and disc-condyle angles after ARS treatment were evaluated using magnetic resonance imaging and the Helkimo index. Results After ARS treatment, the Ai and Di of all patients with ADDwR decreased, the disc length increased, and the thickness decreased. The Ai of patients with slight ADDwR and those with type 1 joint discs was reduced to 0, with the most significant decrease observed in Di. The disc length of mild ADDwR (increased to 8.65 mm±1.79 mm) and type 5 disc (increased to 10.71 mm±2.62 mm) significantly increased the most. The disc thickness of slight ADDwR decreased to 3.08 mm±0.51 mm significantly. Conclusion The therapeutic effect of ARS is correlated with the displacement degree and morphological features of the disc, providing evidence for clinical treatment decisions.

Key words: anterior repositioning splint, anterior disc displacement with reduction, disc, magnetic resonance imaging, therapeutic effect

中图分类号:

R782.6

宋佳璐, 肖琦钦, 岑啸. 关节盘形态学特征及盘髁角度对可复性关节盘前移位保守治疗效果的初步评价[J]. 华西口腔医学杂志, 2025, 43(3): 406-415.

Song Jialu, Xiao Qiqin, Cen Xiao. Effect of disc morphological features and disc-condyle angles on conservative treatment for anterior disc displacement with reduction[J]. West China Journal of Stomatology, 2025, 43(3): 406-415.

图/表 14

图 1

图 2

图 3

表 1

图 4

图 5

表 2

图 6

图 7

表 3

图 8

表 4

图 9

图 10

参考文献 32

1	Valesan LF, Da-Cas CD, Réus JC, et al. Prevalence of temporomandibular joint disorders: a systematic review and meta-analysis[J]. Clin Oral Investig, 2021, 25(2): 441-453.
2	Vogl TJ, Lauer HC, Lehnert T, et al. The value of MRI in patients with temporomandibular joint dysfunction: correlation of MRI and clinical findings[J]. Eur J Radiol, 2016, 85(4): 714-719.
3	傅开元, 胡敏, 余强, 等. 颞下颌关节常规MRI检查规范及关节盘移位诊断标准的专家共识[J]. 中华口腔医学杂志, 2020, 55(9): 608-612.
	Fu KY, Hu M, Yu Q, et al. Experts consensus on MRI examination specification and diagnostic criteria of temporomandibular joint disc displacement[J]. Chin J Stomatol, 2020, 55(9): 608-612.
4	Liu Z, Qian Y, Zhang Y, et al. Effects of several temporomandibular disorders on the stress distributions of temporomandibular joint: a finite element analysis[J]. Comput Methods Biomech Biomed Engin, 2016, 19(2): 137-143.
5	Machon V, Levorova J, Hirjak D, et al. Temporomandibular joint disc perforation: a retrospective study[J]. Int J Oral Maxillofac Surg, 2017, 46(11): 1411-1416.
6	费晨艳. 颞下颌关节紊乱病患者MRI表现与临床症状的相关性分析[D]. 杭州: 浙江中医药大学, 2022.
	Fei CY. Correlation between MRI findings and clinical symptoms in patients with temporomandibular disorders[D]. Hangzhou: Zhejiang Chinese Medical University, 2022.
7	Zhang Q, Ye Z, Wu Y, et al. Nonlinear relationship between temporomandibular joint disc displacement distan-ce and disc length: a magnetic resonance imaging analysis[J]. J Clin Med, 2022, 11(23): 7160.
8	闫森, 乔永明, 段亮伟. 37例颞下颌关节盘不可复性前移位患者自然转归的临床及磁共振成像特征分析[J]. 华西口腔医学杂志, 2024, 42(1): 82-88.
	Yan S, Qiao YM, Duan LW. Analysis of clinical changes and magnetic resonance imaging features of 37 patients with temporomandibular joint disc condylar complex wi-th anterior disc displacement without reduction[J]. West China J Stomatol, 2024, 42(1): 82-88.
9	邢盼盼. 颞下颌关节结构紊乱病关节盘形态改变的临床MRI研究[D]. 太原: 山西医科大学, 2019.
	Xing PP. Clinical MRI study of morphological changes of the articular disc in temporomandibular joint disorders[D]. Taiyuan: Shanxi Medical University, 2019.
10	Naeije M, te Veldhuis AH, te Veldhuis EC, et al. Disc di-splacement within the human temporomandibular joint: a systematic review of a ‘noisy annoyance’[J]. J Oral Rehabil, 2013, 40(2): 139-158.
11	Pihut M, Gorecka M, Ceranowicz P, et al. The efficiency of anterior repositioning splints in the management of pain related to temporomandibular joint disc displacement with reduction[J]. Pain Res Manag, 2018, 2018: 9089286.
12	Liu MQ, Lei J, Han JH, et al. Metrical analysis of disc-condyle relation with different splint treatment positions in patients with TMJ disc displacement[J]. J Appl Oral Sci, 2017, 25(5): 483-489.
13	Ma Z, Xie Q, Yang C, et al. Can anterior repositioning splint effectively treat temporomandibular joint disc displacement[J]. Sci Rep, 2019, 9(1): 534.
14	Minervini GG, Nucci L, Lanza A, et al. Temporomandibular disc displacement with reduction treated with anterior repositioning splint: a 2-year clinical and magnetic resonance imaging (MRI) follow-up[J]. J Biol Regul Homeost Agents, 2020, 34(1): 151-160.
15	Yano K, Nishikawa K, Sano T, et al. Relationship between appearance of a double contour on the mandibular condyle and the change in articular disc position after splint therapy[J]. Oral Surg Oral Med Oral Pathol Oral Radiol Endod, 2009, 108(4): e30-e34.
16	Guo YN, Cui SJ, Zhou YH, et al. An overview of ante-rior repositioning splint therapy for disc displacement-related temporomandibular disorders[J]. Curr Med Sci, 2021, 41(3): 626-634.
17	Helkimo M. Studies on function and dysfunction of the masticatory system.Ⅱ. Index for anamnestic and clinical dysfunction and occlusal state[J]. Sven Tandlak Tidskr, 1974, 67(2): 101-121.
18	Drace JE, Enzmann DR. Defining the normal temporomandibular joint: closed-, partially open-, and open-mouth MR imaging of asymptomatic subjects[J]. Radiology, 1990, 177(1): 67-71.
19	Incesu L, Taşkaya-Yilmaz N, Oğütcen-Toller M, et al. Relationship of condylar position to disc position and morphology[J]. Eur J Radiol, 2004, 51(3): 269-273.
20	Luo D, Qiu C, Zhou R, et al. MRI-based observation of the size and morphology of temporomandibular joint articular disc and condyle in young asymptomatic adults [J]. Dentomaxillofac Radiol, 2022, 51(3): 20210272.
21	Murakami S, Takahashi A, Nishiyama H, et al. Magnetic resonance evaluation of the temporomandibular joint disc position and configuration[J]. Dentomaxillofac Radiol, 1993, 22(4): 205-207.
22	谷鸿秋. 临床研究中敏感性分析的统计思路与统计图表[J]. 中国循证心血管医学杂志, 2018, 10(10): 1166-1169, 1178.
	Gu HQ. Statistical strategy and statistical charts for sensitivity analyses in clinical research[J]. Chin J Evid Based Cardiovasc Med, 2018, 10(10): 1166-1169, 1178.
23	Westesson PL, Katzberg RW, Tallents RH, et al. Tempo-romandibular joint: comparison of MR images with cryo-sectional anatomy[J]. Radiology, 1987, 164(1): 59-64.
24	牛梅彦. 1.5T MRI对单侧颞下颌关节盘前移位患者的定量研究[J]. 河北医药, 2022, 44(17): 2630-2632, 2636.
	Niu MY. The quantitative study on the unilateral TMJ anterior disc displacement by using 1.5T MRI[J]. Hebei Med J, 2022, 44(17): 2630-2632, 2636.
25	Hu YK, Yang C, Xie QY. Changes in disc status in the reducing and nonreducing anterior disc displacement of temporomandibular joint: a longitudinal retrospective stu-dy[J]. Sci Rep, 2016, 6: 34253.
26	Taşkaya-Yilmaz N, Oğütcen-Toller M. Magnetic resonance imaging evaluation of temporomandibular joint disc deformities in relation to type of disc displacement[J]. J Oral Maxillofac Surg, 2001, 59(8): 860-865.
27	余黄俊. 颞下颌关节可复性盘前移患者的MR表现[J]. 中国医学物理学杂志, 2021, 38(6): 721-724.
	Yu HJ. Magnetic resonance imaging findings in patients with temporomandibular joint anterior disc displacement with reduction[J]. Chin J Med Phys, 2021, 38(6): 721-724.
28	Jung YW, Park SH, On SW, et al. Correlation between clinical symptoms and magnetic resonance imaging fin-dings in patients with temporomandibular joint internal derangement[J]. J Korean Assoc Oral Maxillofac Surg, 2015, 41(3): 125-132.
29	Tanaka E, Hanaoka K, Van Eijden T, et al. Dynamic shear properties of the temporomandibular joint disc[J]. J Dent Res, 2003, 82(3): 228-231.
30	Cai XY, Jin JM, Yang C. Changes in disc position, disc length, and condylar height in the temporomandibular joint with anterior disc displacement: a longitudinal retrospective magnetic resonance imaging study[J]. J Oral Maxillofac Surg, 2011, 69(11): e340-e346.
31	Mori H, Horiuchi S, Nishimura S, et al. Three-dimensional finite element analysis of cartilaginous tissues in human temporomandibular joint during prolonged clen-ching[J]. Arch Oral Biol, 2010, 55(11): 879-886.
32	牛洪业. 颞下颌关节关节结构紊乱病关节盘厚度变化及运动异常的临床MRI研究[D]. 太原: 山西医科大学, 2018.
	Niu HY. Clinical study of MRI on the changes of disc thickness and abnormal motion in temporomandibular joint disorders[D]. Taiyuan: Shanxi Medical University, 2018.

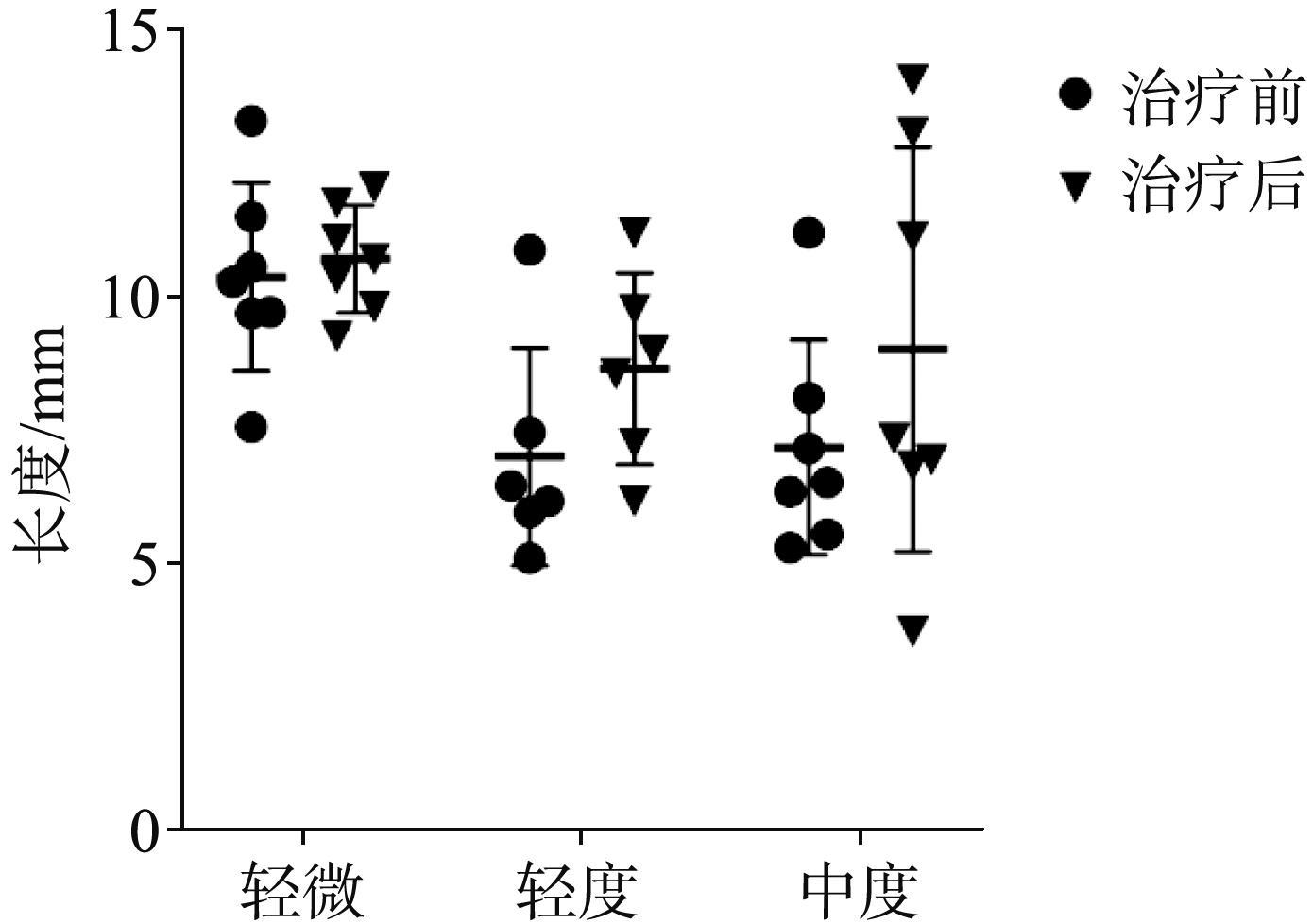

前移位程度	治疗前/mm	治疗后/mm	P值
轻微	10.37±1.77	10.72±1.01	0.431
轻度	7.00±2.05	8.65±1.79	0.115
中度	7.17±2.02	9.01±3.80	0.376
总体	8.24±2.44	9.50±2.56	0.094

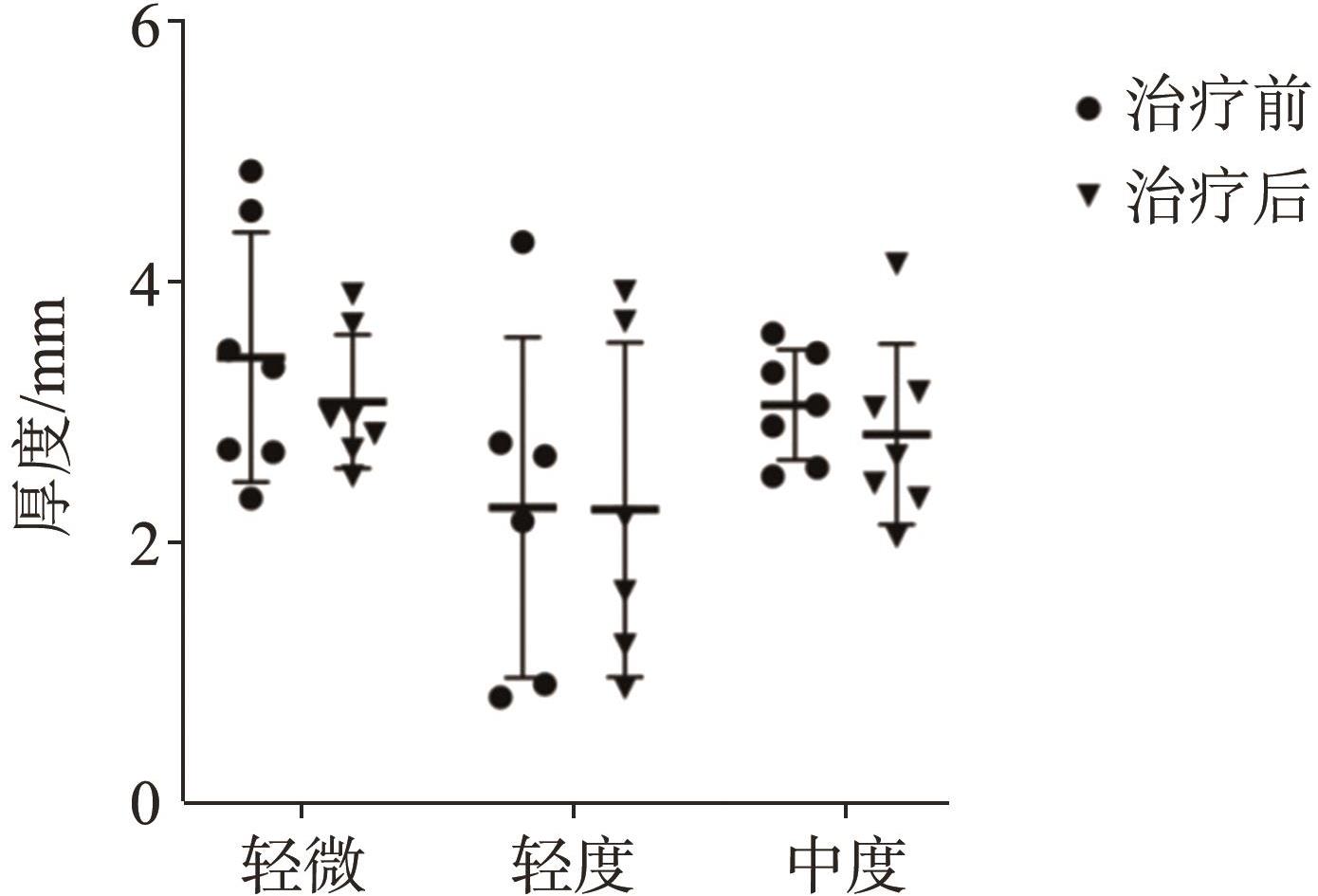

前移位程度	治疗前/mm	治疗后/mm	P值
轻微	3.42±0.96	3.08±0.51	0.308
轻度	2.27±1.30	2.25±1.28	0.958
中度	2.87±0.55	2.83±0.69	0.422
总体	2.95±1.01	2.74±0.89	0.212

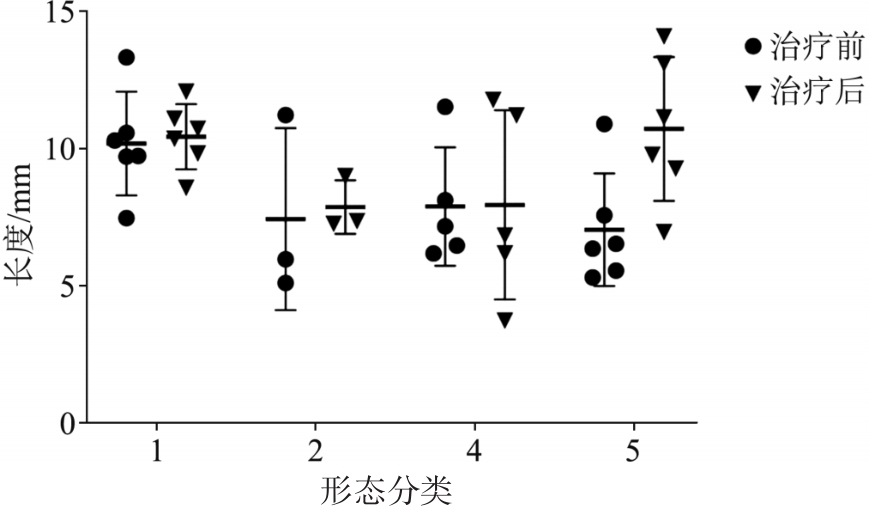

形态	治疗前/mm	治疗后/mm	P值
1	10.17±1.89	10.42±1.19	0.579
2	7.42±3.31	7.86±0.97	0.859
4	7.88±2.16	7.93±3.44	0.969
5	7.03±2.05	10.71±2.62	0.067

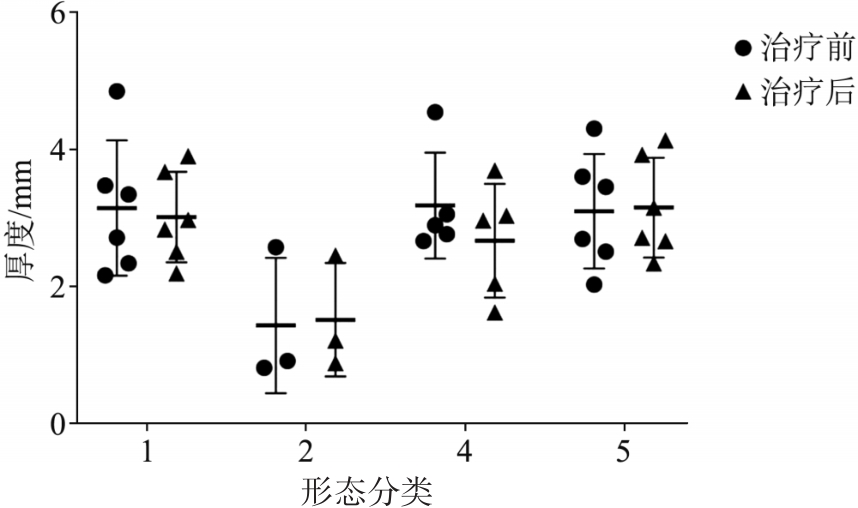

形态	治疗前/mm	治疗后/mm	P值
1	3.15±0.99	3.01±0.66	0.641
2	1.43±0.99	1.51±0.83	0.563
4	3.18±0.77	2.67±0.83	0.325
5	3.10±0.83	3.15±0.73	0.583
