成年正畸患者颧牙槽嵴区微种植钉植入的位点选择

doi:10.7518/hxkq.2024.2023282

摘要/Abstract

摘要：

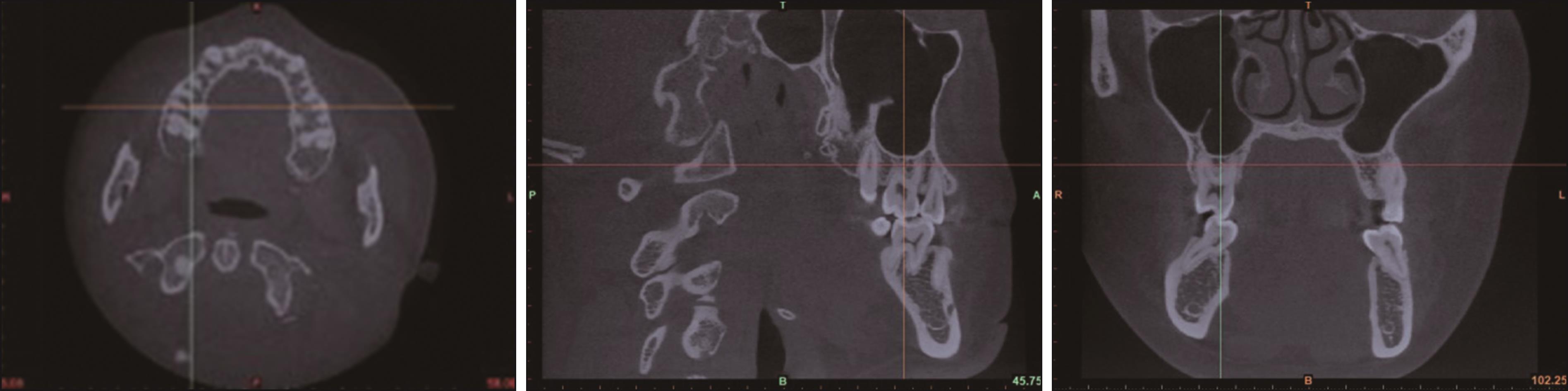

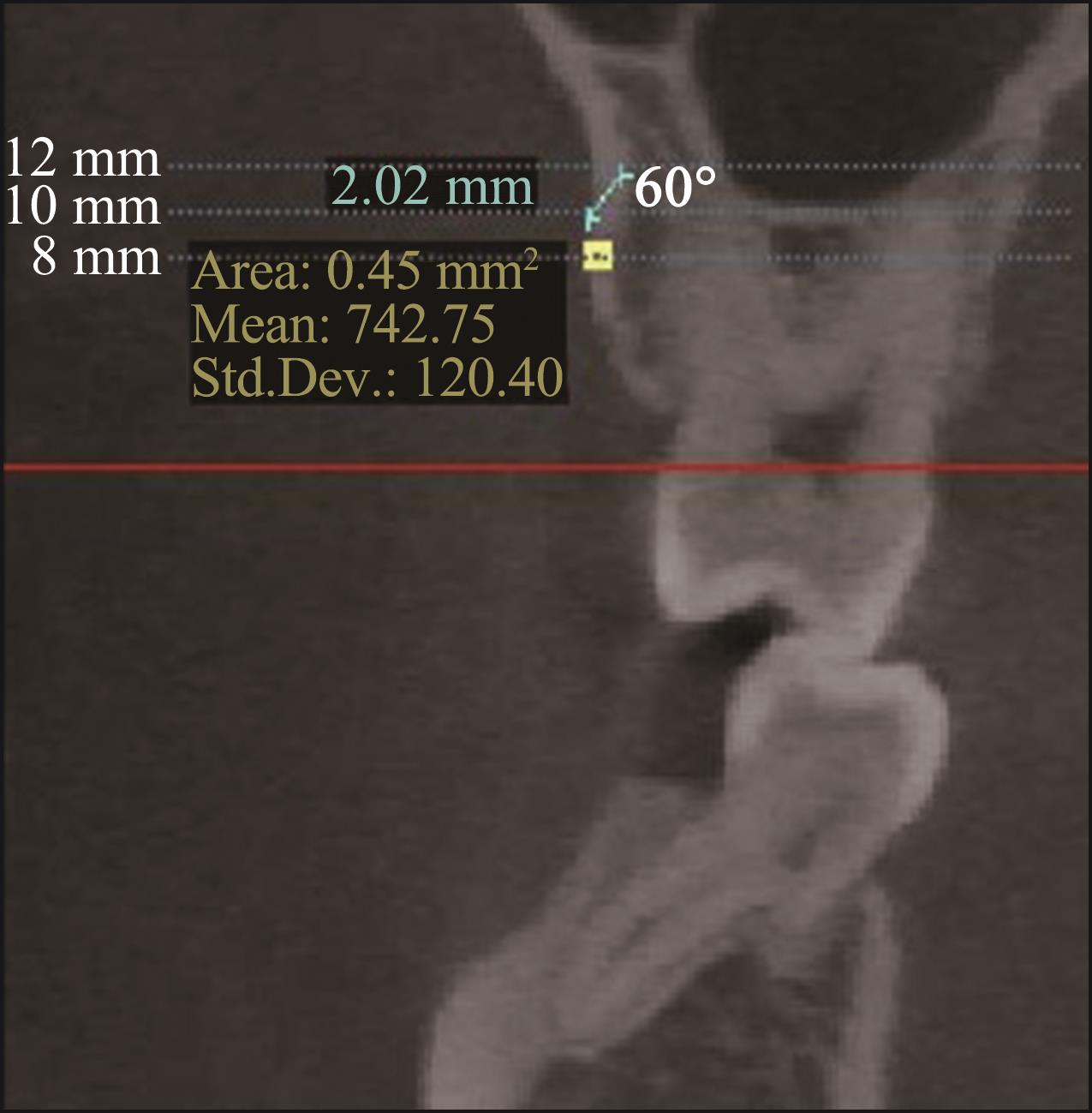

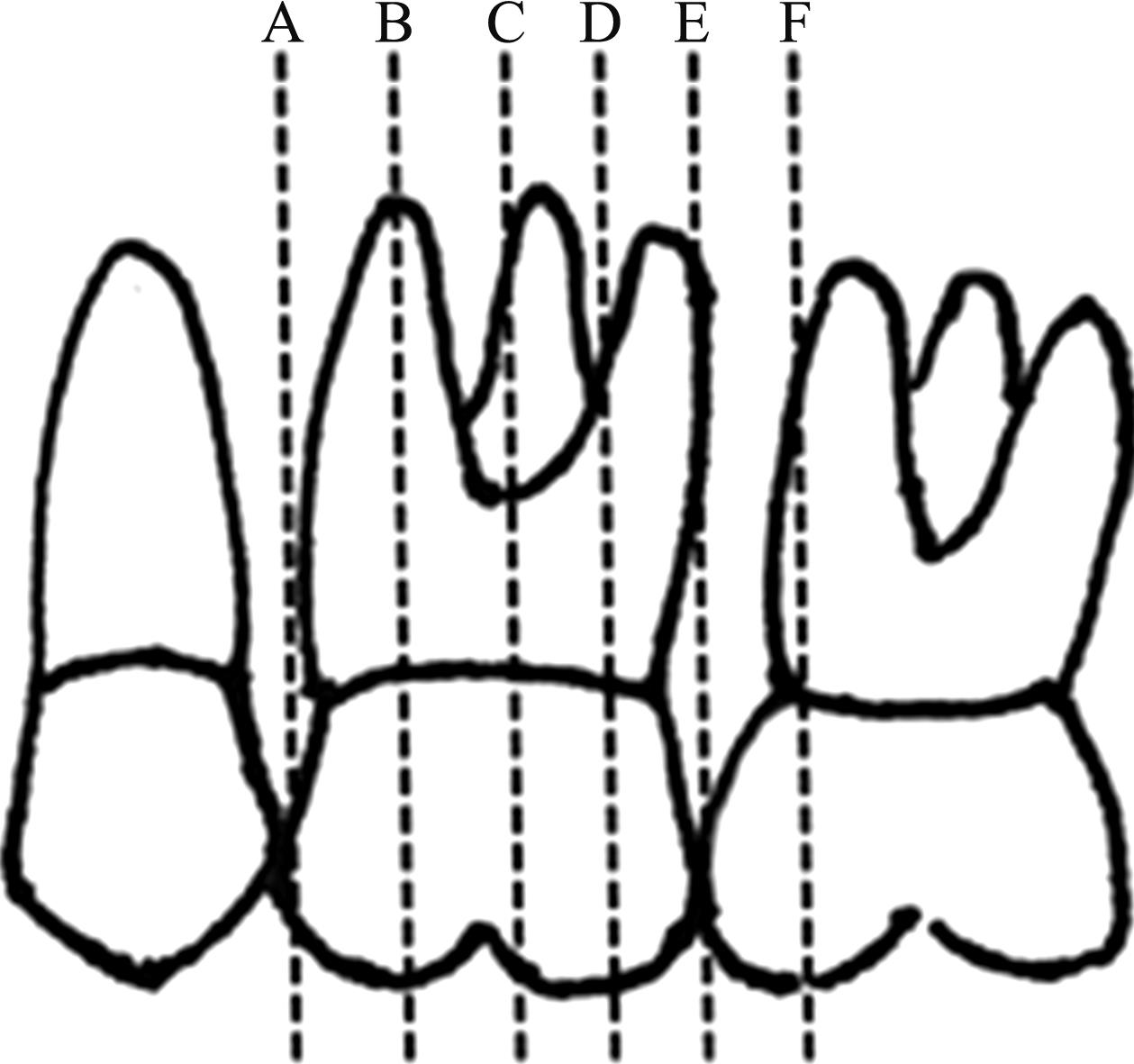

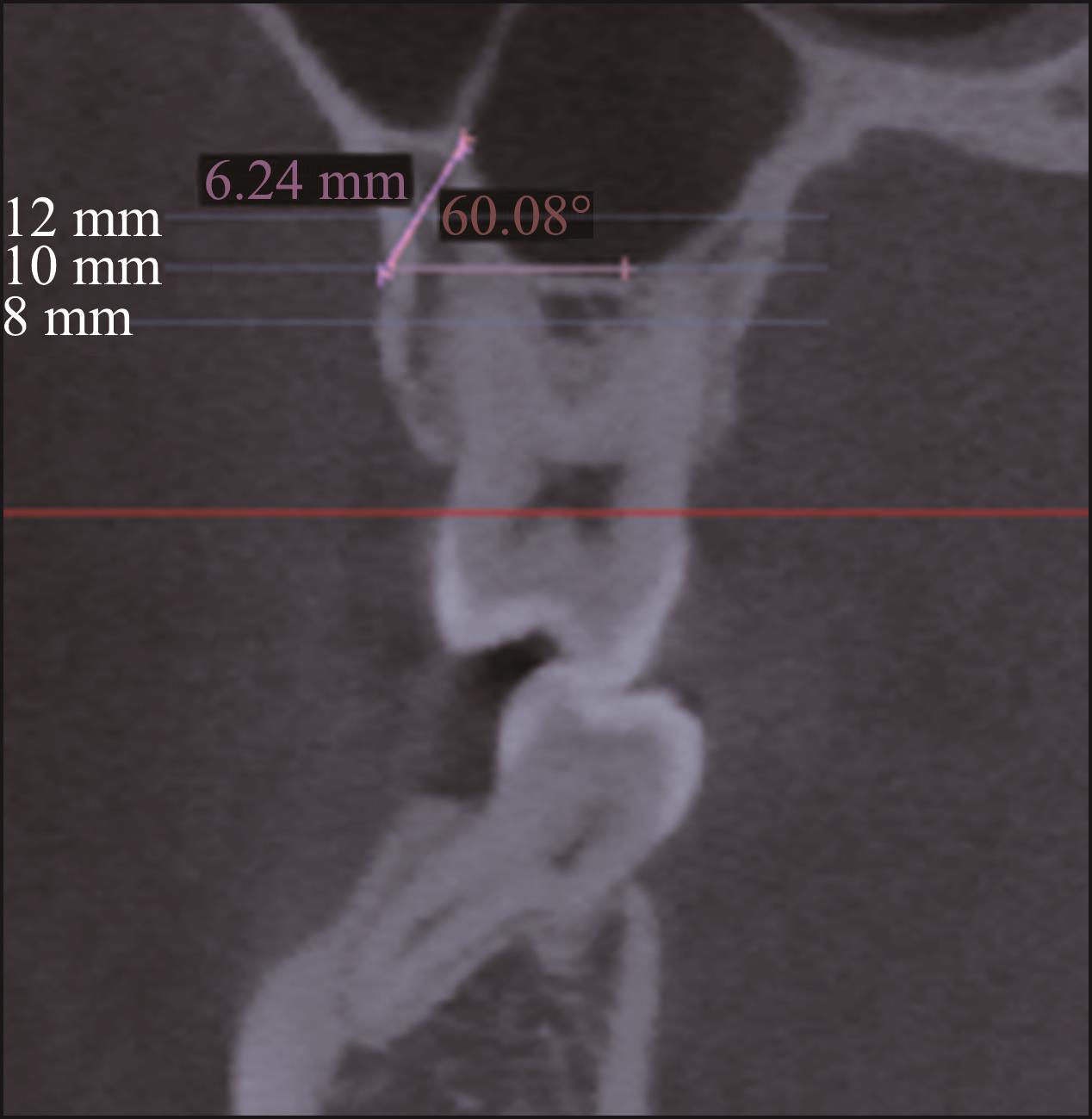

目的对成年男性及女性正畸患者颧牙槽嵴区的骨皮质密度、骨皮质厚度及颊侧可利用的有效骨量进行分析，为微种植钉植入时的位点选择提供参考。方法采集200例年龄20~30岁患者（男女比例为1∶1）的锥形束CT扫描数据，从近中至远中依次将矢状面上右侧上颌后牙区分为6个层面，每个层面在垂直距离为颊侧骨皮质距离釉牙骨质界8、10、12 mm处分别设置3个测量位点，共计18个测量位点，测量其骨皮质密度、厚度及有效骨量，并进行统计分析。结果成年男性与女性正畸患者的骨皮质密度、厚度及有效骨量的最高值均位于平分第二前磨牙与第一磨牙根间区，其中骨皮质密度、厚度随着垂直高度增加而增大，而有效骨量随着垂直高度增加而减少。成年男性与女性患者之间的骨皮质密度、骨皮质厚度和颊侧有效骨量存在一定的差异。结论成年男性与女性正畸患者颧牙槽嵴区微种植钉的最佳植入位点均位于第二前磨牙与第一磨牙根间区，其中男性最佳植入位点的垂直高度可以适当高于女性。

关键词: 颧牙槽嵴, 微种植钉, 骨皮质密度, 骨皮质厚度, 有效骨量, 性别因素

Abstract:

Objective To determine the optimal placement of miniscrews, this study compared adult male and female patients in terms of cortical bone density, cortical bone thickness, and available bone width in the infrazygomatic crest region. Methods The cone beam computed tomography imaging data of 200 patients (20-30 years old; 100 males and 100 females) were collected. The right maxillary posterior teeth in the sagittal plane were divided into six levels from proximal to distal, and three measurement sites were positioned at vertical distances of 8, 10, and 12 mm from the cementum. Cortical bone density, cortical bone thickness, and available bone width were measured in 18 measurement sites in the infrazygomatic crest and analyzed statistically. Results The highest cortical bone density, cortical bone thickness, and available bone width in the infrazygomatic crest in adult male and female patients were at the level of the interradicular space between the maxillary second premolar and maxillary first molar. The bone cortical density and thickness increased with vertical height, whereas the available bone width decreased with increasing vertical height. Differences were observed in cortical bone density, cortical bone thickness, and available bone width between adult male and female patients. Conclusion The optimal implantation sites of the micro-implant anchorages in the infrazygomatic crest were at the level of the interradicular space between the maxillary second premolar and the maxillary first molar, and the vertical height of the optimal implantation site in males was appropriately higher than that in females.

Key words: infrazygomatic crest, miniscrews, cortical bone density, cortical bone thickness, effective bone mass, gender factor

中图分类号:

R783.5

陈芯伊, 蒋晓鸽, 陈嵩. 成年正畸患者颧牙槽嵴区微种植钉植入的位点选择[J]. 华西口腔医学杂志, 2024, 42(2): 207-213.

Chen Xinyi, Jiang Xiaoge, Chen Song. Site selection of micro-implant anchorages in the infrazygomatic crest in adult orthodontic patients[J]. West China Journal of Stomatology, 2024, 42(2): 207-213.

图/表 7

图 1

图 2

图 3

图 4

表 1

表 2

表 3

参考文献 33

1	Chung KR, Nelson G, Kim SH, et al. Severe bidentoalveolar protrusion treated with orthodontic microimplant-dependent en-masse retraction[J]. Am J Orthod Dentofacial Orthop, 2007, 132(1): 105-115.
2	Chang CH, Lin JH, Roberts WE. Success of infrazygomatic crest bone screws: patient age, insertion angle, sinus penetration, and terminal insertion torque[J]. Am J Orthod Dentofacial Orthop, 2022, 161(6): 783-790.
3	Liou EJ, Chen PH, Wang YC, et al. A computed tomographic image study on the thickness of the infrazygo-matic crest of the maxilla and its clinical implications for miniscrew insertion[J]. Am J Orthod Dentofacial Orthop, 2007, 131(3): 352-356.
4	Murugesan A, Jain RK. A 3D comparison of dimension of infrazygomatic crest region in different vertical skeletal patterns: a retrospective study[J]. Int Orthod, 2020, 18(4): 770-775.
5	Tavares A, Crusoé-Rebello IM, Neves FS. Tomographic evaluation of infrazygomatic crest for orthodontic anchorage in different vertical and sagittal skeletal patterns[J]. J Clin Exp Dent, 2020, 12(11): e1015-e1020.
6	Arslan Çarpar K, Sezen Erhamza T. Comparison of zygoma plates and infrazygomatic crest miniscrews used open bite treatment: a 3-dimensional finite element stu-dy[J]. Am J Orthod Dentofacial Orthop, 2022, 161(5): e466-e474.
7	Golshah A, Moradi P, Nikkerdar N. Efficacy of micro-osteoperforation of the alveolar bone by using mini-screw for acceleration of maxillary canine retraction in young adult orthodontic patients: a split-mouth randomized clinical trial[J]. Int Orthod, 2021, 19(4): 601-611.
8	汪钰程, 邢斌, 孙志涛, 等. 成人与青少年颧牙槽嵴区骨皮质密度的三维重建对比研究[J]. 实用口腔医学杂志, 2019, 35(2): 249-252.
	Wang YC, Xing B, Sun ZT, et al. A comparative study on 3D reconstruction of cortex bone density in zygoma-tic alveolar ridge between adults and teenagers[J]. J Pract Stomatol, 2019, 35(2): 249-252.
9	李文艳, 彭嘉琪, 林巍, 等. 微种植体颌骨植入区的CBCT测量分析[J]. 口腔医学, 2015, 35(1): 29-33.
	Li WY, Peng JQ, Lin W, et al. Structure analysis around mini-implants plantation area with CBCT[J]. Stomatology, 2015, 35(1): 29-33.
10	Albogha MH, Takahashi I. Effect of loaded orthodontic miniscrew implant on compressive stresses in adjacent periodontal ligament[J]. Angle Orthod, 2019, 89(2): 235-241.
11	Negrisoli S, Angelieri F, Gonçalves JR, et al. Assessment of the bone thickness of the palate on cone-beam computed tomography for placement of miniscrew-assi-sted rapid palatal expansion appliances[J]. Am J Orthod Dentofacial Orthop, 2022, 161(6): 849-857.
12	Zhang S, Choi Y, Li W, et al. The effects of cortical bone thickness and miniscrew implant root proximity on the success rate of miniscrew implant: a retrospective study[J]. Orthod Craniofac Res, 2022, 25(3): 342-350.
13	Motoyoshi M, Yoshida T, Ono A, et al. Effect of cortical bone thickness and implant placement torque on stability of orthodontic mini-implants[J]. Int J Oral Maxillofac Implants, 2007, 22(5): 779-784.
14	Ono A, Motoyoshi M, Shimizu N. Cortical bone thickness in the buccal posterior region for orthodontic mini-implants[J]. Int J Oral Maxillofac Surg, 2008, 37(4): 334-340.
15	周婷婷, 雷勇华, 谢尔婷, 等. 成人骨性Ⅱ类错𬌗颧牙槽嵴区骨质厚度的CBCT研究[J]. 中国美容医学, 2016, 25(6): 77-81.
	Zhou TT, Lei YH, Xie ET, et al. A cone-beam computed tomographic study on the thickness of infrazygomatic crest (IZ crest) at different angles and positions in adults of skeletal ClassⅡmalocclusion[J]. Chin J Aesthetic Med, 2016, 25(6): 77-81.
16	赵岩, 屈振宇, 韩文利, 等. 应用锥形束CT探查颧牙槽嵴处微种植钉植入的安全范围[J]. 口腔医学研究, 2013, 29(2): 145-147.
	Zhao Y, Qu ZY, Han WL, et al. Quantitative investigation the bone depth and buccal cortical bone thickness of maxillary posterior area for microscrews placement using cone beam CT[J]. J Oral Sci Res, 2013, 29(2): 145-147.
17	Murugesan A, Jain RK. Comparison of infrazygomatic crest dimension above mesiobuccal roots of maxillary molars in South Indian subjects: a retrospective cone beam computed tomography study[J]. J Indian Orthod Soc, 2023, 57(2): 70-74.
18	He Y, Liu J, Huang R, et al. Clinical analysis of successful insertion of orthodontic mini-implants in infrazygomatic crest[J]. BMC Oral Health, 2023, 23(1): 348.
19	Du B, Zhu J, Li L, et al. Bone depth and thickness of different infrazygomatic crest miniscrew insertion paths between the first and second maxillary molars for distal tooth movement: a 3-dimensional assessment[J]. Am J Orthod Dentofacial Orthop, 2021, 160(1): 113-123.
20	沈月腾, 胡露露, 宋锦璘, 等. 模拟微种植体植入上颌后牙区外周骨密度的锥形束CT测量分析[J]. 第三军医大学学报, 2013, 35(19): 2081-2083.
	Shen YT, Hu LL, Song JL, et al. Surrounding bone density of maxillary posterior region with inserted micro implant by cone beam computed tomography[J]. J Third Mil Med Univ, 2013, 35(19): 2081-2083.
21	王玉俏, 迟敬文, 刘轶凡, 等. 成人不同垂直骨面型颧牙槽嵴区骨皮质密度分析 [J]. 上海口腔医学, 2019, 28(6): 652-656.
	Wang YQ, Chi JW, Liu YF, et al. Analysis of cortical density in zygomatic alveolar ridge of different vertical facial types[J]. Shanghai J Stomatol, 2019, 28(6): 652-656.
22	刘恒朗, 范小平, 那毕, 等. 成人腭部微种植体植入区域骨皮质密度的锥形束CT测量分析[J]. 重庆医科大学学报, 2015, 40(8): 1143-1147.
	Liu HL, Fan XP, Na B, et al. Evaluation on palatal cortical bone density for mini-implant placement in adults by cone beam computed tomography[J]. J Chongqing Med Univ, 2015, 40(8): 1143-1147.
23	张光, 李祎, 吕俊峰, 等. 正常人骨密度定量CT测量分析[J]. 吉林大学学报(医学版), 2003, 29(1): 112-114.
	Zhang G, Li Y, Lü JF, et al. Measurement and analysis of BMD in lumbar vertebral in normal individuals th-rough QCT[J]. J Jilin Univ (Med Ed), 2003, 29(1): 112-114.
24	Wehrbein H, Glatzmaier J, Yildirim M. Orthodontic anchorage capacity of short titanium screw implants in the maxilla. An experimental study in the dog[J]. Clin Oral Implants Res, 1997, 8(2): 131-141.
25	Lin JC, Liou EJ. A new bone screw for orthodontic anchorage[J]. J Clin Orthod, 2003, 37(12): 676-681.
26	Lin JC, Liou EJ, Yeh CL. Intrusion of overerupted maxillary molars with miniscrew anchorage[J]. J Clin Orthod, 2006, 40(6): 378-383; quiz 358.
27	Baumgaertel S, Hans MG. Assessment of infrazygomatic bone depth for mini-screw insertion[J]. Clin Oral Implants Res, 2009, 20(6): 638-642.
28	吴军, 陈振琦. 上颌第一恒磨牙根方颧牙槽嵴宽度的解剖分析[J]. 中国口腔颌面外科杂志, 2014, 12(6): 521-524.
	Wu J, Chen ZQ. Anatomic analysis of the infrazygomatic crest width[J]. China J Oral Maxillofac Surg, 2014, 12(6): 521-524.
29	郭丽娜, 刘玲, 袁小平. 青少年骨性Ⅱ类颧牙槽嵴骨厚度的CBCT研究[J]. 重庆医学, 2017, 46(25): 3536-3538, 3541.
	Guo LN, Liu L, Yuan XP. Study on cone beam computed tomography for detecting bone thickness of skeletal classⅡinfrazygomatic crest in teenagers[J]. Chongqing Med, 2017, 46 (25): 3536-3538, 3541.
30	Jin GC, Kim KD, Roh BD, et al. Buccal bone plate thickness of the Asian people[J]. J Endod, 2005, 31(6): 430-434.
31	Proffit WR, Fields HW, Sarver DM. 当代口腔正畸学[M]. 5版. 王林, 译. 北京: 人民军医出版社, 2014.
	Proffit WR, Fields HW, Sarver DM. Contemporary orthodontics[M]. 5th ed. Translated by Wang Lin. Beijing: People’s Military Medical Press, 2014.
32	Husseini B, Younes R, Baumgaertel S, et al. Assessment of infrazygomatic crest dimensions in different vertical facial growth types for miniscrew insertion: a cone-beam computed tomography study[J]. Am J Orthod Dentofacial Orthop, 2022, 162(6): 917-926.
33	仲伟洁, 叶俊杰, 王华, 等. 不同垂直骨面型成年患者颧牙槽嵴有效骨量的CBCT研究[J]. 口腔医学, 2021, 41(12): 1077-1080, 1093.
	Zhong WJ, Ye JJ, Wang H, et al. CBCT analysis of bone thickness of infrazygomatic crest in adults with different vertical skeletal patterns[J]. Stomatology, 2021, 41(12): 1077-1080, 1093.

测量位点	男性	女性	t值	P值
Aa	753.21±184.32	840.09±189.89	-3.267	0.001
Ab	826.35±209.08	939.00±193.99	-3.930	0.000
Ac	897.89±203.47	993.06±195.03	-3.360	0.001
Ba	748.70±184.38	830.42±206.45	-2.938	0.004
Bb	809.30±183.84	918.11±217.95	-3.797	0.000
Bc	870.81±214.47	968.94±194.16	-3.375	0.001
Ca	748.70±174.39	871.55±180.58	-4.869	0.000
Cb	824.22±199.14	946.00±184.41	-4.464	0.000
Cc	868.20±221.82	960.24±205.33	-3.030	0.003
Da	749.79±154.61	855.78±193.56	-4.257	0.000
Db	801.48±175.06	914.51±182.76	-4.444	0.000
Dc	844.88±218.71	913.54±185.09	-2.384	0.018
Ea	733.37±176.71	835.51±178.60	-4.045	0.000
Eb	789.74±189.83	881.00±185.46	-3.421	0.001
Ec	806.12±200.56	870.36±177.60	-2.386	0.018
Fa	707.62±172.82	813.93±203.00	-3.968	0.000
Fb	758.87±185.00	846.65±198.37	-3.220	0.001
Fc	763.23±198.88	816.53±191.14	-1.923	0.056

测量位点	男性	女性	t值	P值
Aa	1.61±0.36	1.61±0.39	0.030	0.976
Ab	1.70±0.30	1.77±0.52	-1.168	0.244
Ac	1.89±0.38	1.90±0.50	-0.101	0.920
Ba	1.32±0.38	1.21±0.38	2.105	0.037
Bb	1.35±0.42	1.39±0.44	-0.579	0.564
Bc	1.55±0.49	1.65±0.54	-1.382	0.168
Ca	1.40±0.32	1.42±0.39	-0.507	0.613
Cb	1.51±0.36	1.57±0.46	-1.000	0.318
Cc	1.65±0.45	1.62±0.46	-0.513	0.608
Da	1.35±0.30	1.33±0.39	0.431	0.667
Db	1.43±0.36	1.49±0.45	-1.141	0.255
Dc	1.67±1.00	1.59±0.53	-0.203	0.839
Ea	1.41±0.40	1.40±0.39	0.036	0.971
Eb	1.50±0.44	1.54±0.45	-0.507	0.612
Ec	1.53±0.41	1.59±0.49	-0.918	0.360
Fa	1.27±0.31	1.38±0.43	-2.001	0.047
Fb	1.37±0.38	1.48±0.46	-1.771	0.078
Fc	1.48±0.41	1.52±0.51	-0.527	0.599

测量位点	男性	女性	t值	P值
Aa	13.88±7.48	10.81±6.72	3.035	0.003
Ab	10.40±6.67	7.14±5.30	3.819	0.000
Ac	7.83±5.91	4.54±3.78	4.669	0.000
Ba	2.42±1.39	3.30±7.25	-1.181	0.239
Bb	3.05±3.04	2.99±3.02	0.150	0.881
Bc	3.99±4.67	3.24±2.93	1.349	0.179
Ca	9.71±6.42	7.50±5.56	2.587	0.010
Cb	6.96±5.92	4.75±3.88	3.106	0.002
Cc	4.89±4.66	3.41±3.40	2.563	0.011
Da	3.75±3.00	3.23±2.55	1.305	0.193
Db	4.17±4.38	3.91±4.51	0.407	0.684
Dc	4.12±4.62	2.98±2.97	2.050	0.042
Ea	8.94±6.36	7.39±5.07	1.886	0.061
Eb	6.38±5.90	4.80±3.88	2.219	0.028
Ec	4.13±4.36	3.24±3.36	1.603	0.110
Fa	4.49±2.58	3.89±2.19	1.751	0.082
Fb	4.06±3.54	3.41±2.51	1.485	0.139
Fc	3.30±3.49	2.64±2.24	1.564	0.119
