West China Journal of Stomatology ›› 2019, Vol. 37 ›› Issue (1): 53-57.doi: 10.7518/hxkq.2019.01.010
Previous Articles Next Articles
Ya’nan Wei1,Zhiyun Cao2(),Gang Li3,Xun Sheng2,Yiqing Xiong1,Wei Li1
Received:
2018-07-05
Revised:
2018-10-12
Online:
2019-02-01
Published:
2019-02-01
Contact:
Zhiyun Cao
E-mail:626296441@qq.com
Supported by:
CLC Number:
Ya’nan Wei,Zhiyun Cao,Gang Li,Xun Sheng,Yiqing Xiong,Wei Li. Cone-beam computed tomography-synthesized cephalograms for evaluating the vertical dimension of occlusions[J]. West China Journal of Stomatology, 2019, 37(1): 53-57.
Add to citation manager EndNote|Ris|BibTeX

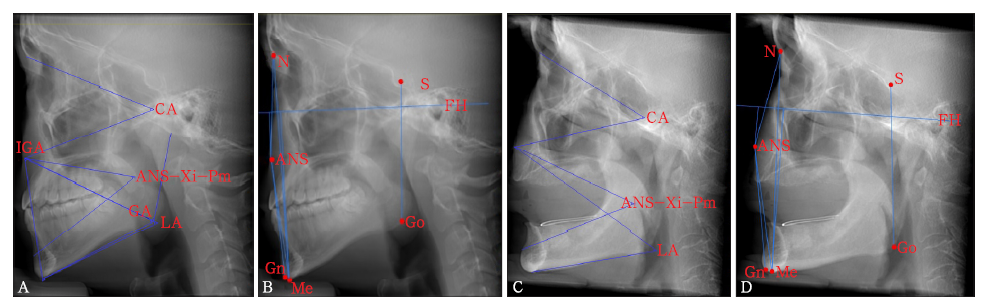

Tab 1
Measurements and definitions
测量项目 | 定义 |
---|---|
N-FC-ANS(简称CA)/° | 由N、CF及ANS构成的面中心角 |
Go-ANS-Me(简称IGA)/° | 由Go、ANS及Me构成的下颌后下角 |
ANS-Xi-Pm/° | 下面高角度,由ANS、Xi及Pm构成 |
的角度 | |
Ar-Go-Me(简称GA)/° | 由Ar、Go及Me构成的下颌角 |
ANS-Goc-Me(简称LA)/° | 由ANS、Goc及Me构成的面下角 |
N-ANS/mm | 上面高,N至ANS的距离 |
ANS-Me/mm | 下面高,ANS至Me的距离 |
S-Go/mm | 后面高,S至Go的距离 |
N-Me/mm | 前面高,N至Me的距离 |
ANS-Gn/mm | 下面高,ANS至Gn的距离 |
ANS-FH/mm | ANS至眶耳平面的距离 |
Me-FH/mm | Me至眶耳平面的距离 |
Tab 2
Analysis of the line distance ratio and angle value of normal occlusal people in Yunnan province by CBCT-synthesized cephalograms
测量项目 | 男性(n=29) | 女性(n=31) | P值 |
---|---|---|---|
N-ANS/ANS-Me | 0.802 5±0.009 2 | 0.805 5±0.009 2 | 0.207 |
S-Go/N-Me | 0.652 0±0.031 8 | 0.657 3±0.032 9 | 0.528 |
ANS-Gn/N-ANS | 1.207 0±0.030 9 | 1.196 3±0.028 5 | 0.170 |
ANS-Xi-Pm/° | 49.393 1±4.021 2 | 49.358 1±3.427 6 | 0.971 |
GA/° | 122.520 7±6.480 8 | 124.854 8±4.978 2 | 0.122 |
IGA/° | 52.837 9±3.293 0 | 52.125 8±3.732 2 | 0.438 |
CA/° | 45.886 2±2.923 4 | 46.264 5±2.704 8 | 0.605 |
LA/° | 50.741 4±3.648 3 | 50.203 2±3.464 4 | 0.560 |
ANS-FH | 25.293 1±2.875 2 | 24.535 5±2.796 6 | 0.307 |
Me-FH | 91.596 6±5.547 2 | 86.432 3±5.800 6 | 0.001 |
Tab 7
Consistency analysis of seven different measure-?ment methods and pronunciations
方法 | ICC(95%CI)* |
---|---|
息止间隙法/mm | 0.999 8(0.999 6~0.999 9) |
N-ANS/ANS-Me | 0.996 7(0.992 5~0.998 5) |
S-Go/N-Me | 0.991 6(0.9811~0.996 3) |
ANS-Gn/N-ANS | 0.993 7(0.985 7~0.997 2) |
ANS-Xi-Pm/° | 0.993 3(0.985 0~0.997 1) |
CA/LA | 0.994 1(0.986 7~0.997 4) |
ANS-FH/Me-FH | 0.986 3(0.969 2~0.994 0) |
[1] | Fouda SM, Al-Attar MS, Virtanen JI , et al. Effect of patient’s personality on satisfaction with their present complete den-ture and after increasing the occlusal vertical dimension: a study of edentulous egyptian patients[J]. Int J Dent, 2014: 635943. |
[2] | Alzarea BK. Temporomandibular disorders (TMD) in eden-tulous patients: a review and proposed classification (dr. Bader’s classification)[J]. J Clin Diagn Res, 2015, 9(4): ZE06-ZE09. |
[3] |
Alhajj MN, Daer AA . A proposed linear skeletal distance to predict occlusal vertical dimension: a cephalometric study[J]. J Prosthet Dent, 2017,118(6):732-735.
doi: 10.1016/j.prosdent.2016.12.022 URL |
[4] | Zielak JC , Gulin Neto D, da Cunha LF, et al. Cephalometric approach to the occlusal vertical dimension reestablishment[J]. Case Rep Dent, 2014: 920840. |
[5] | 王珊, 韩越, 林汤毅 . 三维转化头影测量与数字化侧位片头影测量的对比[J]. 南京医科大学学报(自然科学版), 2016,36(1):94-98. |
Wang S, Han Y, Lin TY . Comparison of measurements of the conventional and cone beam CT-synthesized cephalo-grams[J]. J Nanjing Med Univ (Nat Sci), 2016,36(1):94-98. | |
[6] |
Ousehal L, Jouhadi E, Bennani A . Vertical dimension of occlusion (VDO): cephalometric norms for a Moroccan population[J]. J Orofac Orthop, 2016,77(1):39-44.
doi: 10.1007/s00056-015-0006-0 URL |
[7] | Mehdizadeh M, Faghihian E . Comparison of linear measure-ment accuracy on cone-beam computed tomography images and digital lateral cephalometric radiographs[J]. J Isfahan Dent School, 2013,8(6):567-575. |
[8] |
Navarro Rde L, Oltramari-Navarro PV, Fernandes TM , et al. Comparison of manual, digital and lateral CBCT cephalo-metric analyses[J]. J Appl Oral Sci, 2013,21(2):167-176.
doi: 10.1590/1678-7757201302326 URL |
[9] |
Park CS, Park JK, Kim H , et al. Comparison of conventional lateral cephalograms with corresponding CBCT radiographs[J]. Imaging Sci Dent, 2012,42(4):201-205.
doi: 10.5624/isd.2012.42.4.201 URL |
[10] | 钱明, 徐军 . 两种常用确定垂直距离方法与拔牙前记录的比较[J]. 口腔医学研究, 2010,26(4):580-582. |
Qian M, Xu J . Two methods to determine the vertical dimen-sion of occlusion compared with pre-extraction record[J]. J Oral Sci Res, 2010,26(4):580-582. | |
[11] |
Alhajj MN, Khalifa N, Abduo J , et al. Determination of occlusal vertical dimension for complete dentures patients: an updated review[J]. J Oral Rehabil, 2017,44(11):896-907.
doi: 10.1111/joor.2017.44.issue-11 URL |
[12] |
Mittal S, Tewari S, Goel R . Esthetic and functional rehabi-litation of mutilated dentition and loss of vertical dimension due to amelogenesis imperfecta[J]. Indian J Dent, 2014,5(2):102-106.
doi: 10.4103/0975-962X.135285 URL |
[13] | Qamar K, Munir U, Naeem S . Role of cephalometry in eva-luation of vertical dimension[J]. Pakistan Oral Dent J, 2013,33(1):183-186. |
[14] | Strajnić L, Stanisić-Sinobad D, Marković D , et al. Cephalo-metric indicators of the vertical dimension of occlusion[J]. Coll Antropol, 2008,32(2):535-541. |
[15] |
Levartovsky S, Matalon S, Sarig R , et al. The association between dental wear and reduced vertical dimension of the face: a morphologic study on human skulls[J]. Arch Oral Biol, 2015,60(1):174-180.
doi: 10.1016/j.archoralbio.2014.09.016 URL |
[16] |
Joanna K, Teresa S, Maria G . Evaluation of functional para-meters in the occlusion of complete denture wearers before and after prosthetic treatment[J]. J Prosthodont Res, 2017,61(4):480-490.
doi: 10.1016/j.jpor.2017.03.003 URL |
