口腔医学生在D55和D65光源下比色效果的对比研究

doi:10.7518/hxkq.2018.01.013

华西口腔医学杂志 ›› 2018, Vol. 36 ›› Issue (1): 66-70.doi: 10.7518/hxkq.2018.01.013

口腔医学生在D55和D65光源下比色效果的对比研究

熊依箐¹(), 李罡²(), 林云红¹, 曹志云¹, 魏雅楠¹, 李卫³

1.昆明医科大学附属口腔医院修复科,昆明 650106
2.蓝橙齿科医院修复科,昆明 650228
3.昆明医科大学附属口腔医院牙周科,昆明 650106

收稿日期:2017-05-11 修回日期:2017-10-09 出版日期:2018-02-07 发布日期:2018-02-01
作者简介:
熊依箐,硕士,E-mail:1365497447@qq.com

Comparative study on the shade matching performance of dental students under D55 and D65 light sources conditions

Yiqing Xiong¹(), Gang Li²(), Yunhong Lin¹, Zhiyun Cao¹, Yanan Wei¹, Wei Li³

1. Dept. of Prosthodontics, The Affiliated Sto-matological Hospital of Kunming Medical University, Kunming 650106, China
2. Dept. of Prosthodontics, Lanchie Dental, Kunming 650228, China
3. Dept. of Periodontics, The Affiliated Stomatological Hospital of Kunming Medical University, Kunming 650106, China

Received:2017-05-11 Revised:2017-10-09 Online:2018-02-07 Published:2018-02-01

摘要/Abstract

摘要：

目的对标准化比色环境中口腔医学生在D55和D65光源条件下的比色结果进行比较。方法随机抽取市售Vitapan 3D-Master比色板2套,其中一套作为比色板,从另一套比色板中选出来10个比色片,分别为2L2.5、2M2、2R2.5、3M2、3R2.5、3L1.5、3R1.5、3L2.5、4R1.5、4L1.5色片,用胶布遮盖比色片下字标,用阿拉伯数字标记1~10号。对49名口腔医学生进行比色方法的培训后,要求其抽取10个色片中的任意两个色片,在D65以及D55日光灯下对所抽取的色片比色,分别计算2种光源下每位参与者选择的颜色和牙面实际颜色的平均色差值ΔE,并进行统计学分析。结果在D55光源下每位参与者选择的牙片颜色与牙片实际颜色的ΔE范围为0~6.540,平均为2.501;在D65光源下,每位参与者选择的牙片颜色与牙片实际颜色的ΔE范围为0~6.610,平均为2.530。二者差异无统计学意义（P=0.921）。结论 D55和D65日光灯均可以用于日常的牙科比色,2种不同的色温下比色结果无明显差异。

关键词: 比色板, 光源, 色温, 色差

Abstract:

Objective This study aimed to compare the effect of D55 and D65 light sources on the visual colorimetry performance of dental students by using a homemade light-source shelf. Methods Two Vitapan 3D-Master shade guides were randomly selected. One set was used as shade guides. Ten commonly used shade tabs of 2L2.5, 2M2, 2R2.5, 3M2, 3R2.5, 3L1.5, 3R1.5, 3L2.5, 4R1.5, and 4L1.5 were selected from the other set with covered value marks and numbered from 1 to 10. After the colorimetric training, 49 undergraduate dental students were randomly divided into two groups. Each student randomly selected two of the 10 shade tabs, and the colors were subsequently matched under D65 and D55 light sources from a distance of approximately 40 cm. The average color difference (ΔE) between the color selected by each participant and the actual color of shade tabs was calculated. Paired t test was used for statistical analysis. Results The ΔE values between the color selected by each participant and the actual color of the shade tabs under the D55 light source varied from 0 to 6.540. The average value was 2.501. The ΔE values between the color selected by each participant and the actual color of the shade tabs under the D65 light source varied from 0 to 6.610. The average value was 2.530. No statistically significant difference was observed between the results under the two light sources (P=0.921). Conclusion Both D55 and D65 daylight lamps can be used for daily dental colorimetry. These two different color temperatures showed no significant difference.

Key words: shade guide, light source, color temperature, color difference

中图分类号:

R783.2

熊依箐, 李罡, 林云红, 曹志云, 魏雅楠, 李卫. 口腔医学生在D55和D65光源下比色效果的对比研究[J]. 华西口腔医学杂志, 2018, 36(1): 66-70.

Yiqing Xiong, Gang Li, Yunhong Lin, Zhiyun Cao, Yanan Wei, Wei Li. Comparative study on the shade matching performance of dental students under D55 and D65 light sources conditions[J]. West China Journal of Stomatology, 2018, 36(1): 66-70.

图/表 6

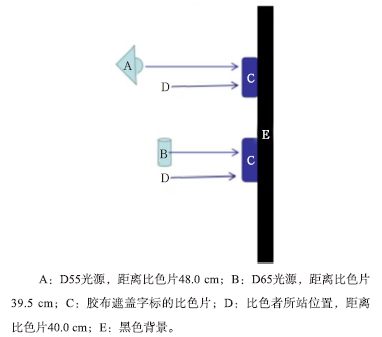

图 1

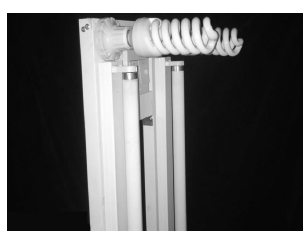

图 2

表 1

表 2

表 3

表 4

参考文献 16

[1]	Gáspárik C, Tofan A, Culic B, et al.Influence of light source and clinical experience on shade matching[J]. Clujul Med, 2014, 87(1):30-33.
[2]	Parameswaran V, Anilkumar S, Lylajam S, et al.Comparison of accuracies of an intraoral spectrophotometer and conven-tional visual method for shade matching using two shade guide systems[J]. J Indian Prosthodont Soc, 2016, 16(4):
	352-358.
[3]	Wee AG, Meyer A, Wu W, et al.Lighting conditions used during visual shade matching in private dental offices[J]. J Prosthet Dent, 2016, 115(4):469-474.
[4]	宋洁文, 姚科, 邱颖宁, 等. 新型LED比色光源下口腔比色板色度值研究[J]. 中华口腔医学研究杂志(电子版), 2014, 8(4):281-285.
	Song JW, Yao K, Qiu YN, et al.Dental shade guide colour values research under a new LED light[J]. Chin J Stomatol Res (Electron Ed), 2014, 8(4):281-285.
[5]	Wang J, Lin J, Gil M, et al.Assessing the accuracy of com-puter color matching with a new dental porcelain shade sys-tem[J]. J Prosthet Dent, 2014, 111(3):247-253.
[6]	Mete JJ, Dange SP, Khalikar AN, et al.Comparative study of shade matching performance of dental students under natural daylight and daylight lamp conditions[J]. Eur J Esthet Dent, 2013, 8(2):192-199.
[7]	辛薇, 陈湘涛, 岳长军, 等. 不同光源下3种比色板色度值的比较[J]. 中国组织工程研究, 2012, 16(3):515-517.
	Xin W, Chen XT, Yue CJ, et al.Chroma value comparison of three kinds of shade guides under different lights[J]. Chin J Tissue Eng Res, 2012, 16(3):515-517.
[8]	陈立. 牙齿美学修复比色[J]. 中国实用口腔科杂志, 2011, 4(8):15-19.
	Chen L.Shade selection in esthetic restoration[J]. Chin J Pract Stomatol, 2011, 4(8):15-19.
[9]	Douglas RD, Steinhauer TJ, Wee AG.Intraoral determina-tion of the tolerance of dentists for perceptibility and accep-tability of shade mismatch[J]. J Prosthet Dent, 2007, 97(4):
	200-208.
[10]	Kuehni RG, Marcus RT.An experiment in visual scaling of small color differences[J]. Color Res Appl, 1979, 4(2):
	83-91.
[11]	Török J, Mauks L, Márton S, et al.Comparative analysis of some factors in tooth color matching[J]. Fogorv Sz, 2014, 107(3):79-86.
[12]	Samra AP, Moro MG, Mazur RF, et al.Performance of dental students in shade matching: impact of training[J]. J Esthet Restor Dent, 2017, 29(2):E24-E32.
[13]	Nakhaei M, Ghanbarzadeh J, Amirinejad S, et al.The in-fluence of dental shade guides and experience on the accu-racy of shade matching[J]. J Contemp Dent Pract, 2016, 17
	(1):22-26.
[14]	Öngül D, Şermet B, Balkaya MC.Visual and instrumental evaluation of color match ability of 2 shade guides on a cera-mic system[J]. J Prosthet Dent, 2012, 108(1):9-14.
[15]	陈英伟, 吴平洋. 背景及色彩培训对比色效果的影响[J]. 临床口腔医学杂志, 2005, 21(5):301-302.
	Chen YW, Wu PY.Effects of different color background and color training in color matching[J]. J Clin Stomatol, 2005, 21(5):301-302.
[16]	包向军, 李幸红, 高卫民, 等. 口腔修复临床比色技术的研究进展[J]. 中国美容医学, 2016, 25(10):117-120.
	Bao XJ, Li XH, Gao WM, et al.The research progress of color match in dental clinic[J]. Chin J Aesthetic Med, 2016, 25(10):117-120.

颜色	L*	a*	b*
2L2.5	73.21	0.63	21.16
2M2	71.27	0.76	17.63
2R2.5	72.70	1.13	21.71
3L1.5	68.00	1.03	18.51
3L2.5	69.59	1.10	22.95
3M2	68.16	2.03	19.51
3R1.5	67.29	2.50	17.46
3R2.5	67.26	2.01	22.63
4L1.5	65.31	1.79	18.27
4R1.5	65.82	3.07	18.76

参数	D55	D65	D55-D65
均数	2.501	2.530	-0.029
标准差	1.688	1.485	0.203
标准误	0.242	0.212	0.030
最小值	0.000	0.000	0.000
最大值	6.540	6.610	-0.070
95%可信区间下限	2.103	2.015	0.088
95%可信区间上限	2.956	2.986	-0.030

光源	正确	不正确	合计	正确率/%
D55	32	66	98	32.7
D65	24	74	98	24.5
合计	56	140	196	28.6

参数	ΔL*	Δa*	Δb*
均数	-0.117	0.163	-0.016
标准差	1.498	0.863	1.639
标准误	0.214	0.123	0.234
P值	0.588	0.193	0.940
