牙合龈高度和隙料厚度对计算机辅助设计/计算机辅助制作全锆冠适合性与固位力的影响

doi:10.7518/hxkq.2020.03.006

华西口腔医学杂志 ›› 2020, Vol. 38 ›› Issue (3): 263-269.doi: 10.7518/hxkq.2020.03.006

牙合龈高度和隙料厚度对计算机辅助设计/计算机辅助制作全锆冠适合性与固位力的影响

席爽, 吴紫潇, 高翠翠, 孟雨晨, 裴丹丹, 逯宜()

陕西省牙颌疾病临床医学研究中心,西安交通大学口腔医院修复科,西安 710004

收稿日期:2019-09-12 修回日期:2020-02-14 出版日期:2020-06-01 发布日期:2020-05-28
通讯作者: 逯宜 E-mail:luyi1962@163.com
作者简介:席爽,医师,硕士,E-mail: xishuang0808@126.com
基金资助:
“西安交通大学口腔医院陕西省牙颌疾病临床医学研究中心”开放课题资助项目(2018YHJB07)

Influence of preparation height and cement space on the fit and retention of computer aided design/computer aided manufacturing zirconia crown

Xi Shuang, Wu Zixiao, Gao Cuicui, Meng Yuchen, Pei Dandan, Lu Yi()

Clinical Research Center of Shaanxi Province for Dental and Maxillofacial Diseases & Dept. of Prothodontics, College of Stomatology, Xi’an Jiaotong University, Xi’an 710004, China

Received:2019-09-12 Revised:2020-02-14 Online:2020-06-01 Published:2020-05-28
Contact: Lu Yi E-mail:luyi1962@163.com
Supported by:
Clinical Research Center of Shaanxi Province for Dental and Maxillofacial Diseases, College of Stomatology, Xi’an Jiaotong University(2018YHJB07)

摘要/Abstract

摘要：

目的探讨牙合龈高度和隙料厚度对计算机辅助设计/计算机辅助制作（CAD/CAM）全锆冠适合性与固位力的影响。方法用3D打印系统制作聚合度为2°,高度在1~3 mm之间的树脂基牙,采集光学印模。在柯乐德CAD/CAM系统中设置隙料厚度分别为10~50 μm,制作全锆冠。用硅橡胶间隙印模法检测每组的适合性,粘接后通过轴向拉伸试验测定其固位力。采用SPSS 22.0软件进行分析。结果高度一定时,不同隙料厚度组的固位力无明显不同（P>0.05）,适合性有差异（P<0.05）。隙料厚度一定时,不同牙合龈高度组的适合性无明显不同（P>0.05）,固位力有差异（P<0.05）。隙料厚度与牙合龈高度无交互影响（P>0.05）。结论柯乐德CAD/CAM系统制作的氧化锆全冠,建议预备体高度不低于3 mm,推荐隙料厚度设置为30 μm。

关键词: 计算机辅助设计/计算机辅助制作全锆冠, 适合性, 固位力, 牙合龈高度, 隙料厚度

Abstract:

Objective To investigate the effects of preparation height and cement space on the fit and retention of computer-aided design (CAD)/computer aided manufacturing (CAM) zirconia crown, and to provide reference for the clinical design and fabrication of CAD/CAM crowns. Methods 3D printing system was used to fabricate resin abutment teeth with convergence angle of 2° and height of 1-3 mm. The models’ optical impressions were collected by the three-shape scanner. Then, the cement spaces were set by Cradle CAD/CAM system at 10-50 μm to create an all-ceramic zirconia crown. The fit of the crowns was measured by using silicone rubber interstitial impression method. The retention of the crowns was measured by pull-off test with uniaxial tensile force after the crown was bonded. The data were analyzed by SPSS 22.0 software. Results When the preparation height was fixed, the fitness values of different cement space groups have statistical difference (P<0.05), whereas the retention values of different cement space groups have no statistical difference (P>0.05). The fitness values of different preparation height groups have no statistical difference (P>0.05), and the retention values of different preparation height groups have statistical difference (P<0.05) when the cement space was fixed. No interaction was observed between the cement space and the preparation height (P>0.05). Conclusion When cradle CAD/CAM system is used to create a full crown in the clinic, the preparation height should be set to more than 3 mm, and the cement space should be set at 30 μm.

Key words: computer aided design/computer aided manufacturing zirconia crown, fit, retention, preparation height, cement space

中图分类号:

R783.3

席爽, 吴紫潇, 高翠翠, 孟雨晨, 裴丹丹, 逯宜. 牙合龈高度和隙料厚度对计算机辅助设计/计算机辅助制作全锆冠适合性与固位力的影响[J]. 华西口腔医学杂志, 2020, 38(3): 263-269.

Xi Shuang, Wu Zixiao, Gao Cuicui, Meng Yuchen, Pei Dandan, Lu Yi. Influence of preparation height and cement space on the fit and retention of computer aided design/computer aided manufacturing zirconia crown[J]. West China Journal of Stomatology, 2020, 38(3): 263-269.

图/表 8

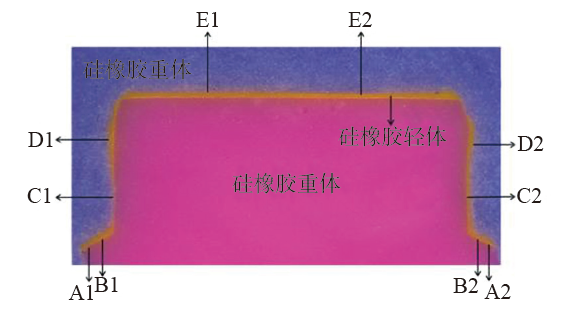

图 1

表 1

表 2

表 3

表 4

表 5

表 6

表 7

参考文献 32

[1]	马骏驰, 李谨, 曾晓燕 , 等. 椅旁CAD/CAM系统修复失败的原因分析[J]. 口腔疾病防治, 2017,25(11):723-728.
	Ma JC, Li J, Zeng XY , et al. Analysis of reasons for failure of chair-side CAD/CAM ceramic restorations[J]. J Prev Treat Stomatol Dis, 2017,25(11):723-728.
[2]	崔秀萍 . 金属烤瓷冠桥修复失败原因及其处理体会[J]. 中国医药科学, 2015,5(8):190-192.
	Cui XP . Metal PFM crown and bridge repair failure causes and treatment experience[J]. Chin Med Pharm, 2015,5(8):190-192.
[3]	Gaikwad BS, Nazirkar G, Dable R , et al. Comparative evaluation of marginal fit and axial wall adaptability of copings fabricated by metal Laser sintering and lost-wax technique: an in vitro study[J]. J Indian Prosthodont Soc, 2018,18(1):47-52.
[4]	Kale E, Seker E, Yilmaz B , et al. Effect of cement space on the marginal fit of CAD-CAM-fabricated monolithic zirconia crowns[J]. J Prosthet Dent, 2016,116(6):890-895. doi: 10.1016/j.prosdent.2016.05.006 URL
[5]	Yildirim G, Uzun IH, Keles A . Evaluation of marginal and internal adaptation of hybrid and nanoceramic systems with microcomputed tomography: an in vitro study[J]. J Prosthet Dent, 2017,118(2):200-207.
[6]	de Paula Silveira AC, Chaves SB, Hilgert LA , et al. Marginal and internal fit of CAD-CAM-fabricated composite resin and ceramic crowns scanned by 2 intraoral cameras[J]. J Prosthet Dent, 2017,117(3):386-392. doi: 10.1016/j.prosdent.2016.07.017 URL
[7]	赵铱民 . 口腔修复学[M]. 北京: 人民卫生出版社, 2012: 96-97.
	Zhao YM. Prosthodontics[M]. Beijing: People’s Medical Publishing House, 2012: 96-97.
[8]	廖志清, 刘根, 宋宁 , 等. 4种自酸蚀粘接剂牙本质粘接界面微拉伸粘接强度及耐久性比较[J]. 口腔颌面修复学杂志, 2017,18(4):228-233.
	Liao ZQ, Liu G, Song N , et al. Bonding strength and durability at the resin-dental interface of four self-etching adhesives[J]. Chin J Prosthodont, 2017,18(4):228-233.
[9]	Rosenstiel SF, Gegauff AG . Mixing variables of zinc phosphate cement and their influence on the seating and retention of complete crowns[J]. Int J Prosthodont, 1989,2(2):138-142.
[10]	Oilo G, Jørgensen KD . The influence of surface roughness on the retentive ability of two dental luting cements[J]. J Oral Rehabil, 1978,5(4):377-389.
[11]	Felton DA, Kanoy BE, White JT . The effect of surface roughness of crown preparations on retention of cemented castings[J]. J Prosthet Dent, 1987,58(3):292-296.
[12]	Almeida e Silva JS, Erdelt K, Edelhoff D , et al. Marginal and internal fit of four-unit zirconia fixed dental prostheses based on digital and conventional impression techniques[J]. Clin Oral Investig, 2014,18(2):515-523.
[13]	Zarauz C, Valverde A, Martinez-Rus F , et al. Clinical evaluation comparing the fit of all-ceramic crowns obtained from silicone and digital intraoral impressions[J]. Clin Oral Investig, 2016,20(4):799-806.
[14]	Ueda K, Beuer F, Stimmelmayr M , et al. Fit of 4-unit FDPs from CoCr and zirconia after conventional and digital impressions[J]. Clin Oral Investig, 2016,20(2):283-289. doi: 10.1007/s00784-015-1513-5 URL
[15]	Lövgren N, Roxner R, Klemendz S , et al. Effect of production method on surface roughness, marginal and internal fit, and retention of cobalt-chromium single crowns[J]. J Prosthet Dent, 2017,118(1):95-101.
[16]	贾兰军 . 辅助固位形对低矮磨牙患者全冠修复体固位力和边缘适合性的影响[J]. 中国民康医学, 2016,28(16):20-21.
	Jia LJ . Effect of auxiliary retention form on retention and marginal fit of full crown restoration in low molar[J]. Med J Chin People’s Heal, 2016,28(16):20-21.
[17]	McLean JW, von Fraunhofer JA . The estimation of cement film thickness by an in vivo technique[J]. Br Dent J, 1971,131(3):107-111.
[18]	Mou SH, Chai T, Wang JS , et al. Influence of different convergence angles and tooth preparation heights on the internal adaptation of Cerec crowns[J]. J Prosthet Dent, 2002,87(3):248-255.
[19]	Wilson PR . Effect of increasing cement space on cementation of artificial crowns[J]. J Prosthet Dent, 1994,71(6):560-564. doi: 10.1016/0022-3913(94)90437-5 URL
[20]	申丹凤, 王小林, 王璐 , 等. 不同隙料厚度对全瓷冠适合性的影响[J]. 第三军医大学学报, 2012,34(20):2090-2093.
	Shen DF, Wang XL, Wang L , et al. Effect of different luting spaces on marginal fit of all-ceramic crowns[J]. J Third Mil Med Univ, 2012,34(20):2090-2093.
[21]	Weaver JD, Johnson GH, Bales DJ . Marginal adaptation of castable ceramic crowns[J]. J Prosthet Dent, 1991,66(6):747-753.
[22]	李明哲, 三浦宏之, 进千春 , 等. 隙料厚度和覆盖面积对Cercon CAD/CAM底层冠适合性的影响[J]. 华西口腔医学杂志, 2009,27(2):195-198.
	Li MZ, Hiroyuki M, Chiharu S , et al. Influence of different spacer thickness and spacer coverage area on the adaptation of Cercon CAD/CAM[J]. West China J Stomatol, 2009,27(2):195-198.
[23]	Oliva RA, Lowe JA, Ozaki MM . Film thickness measurements of a paint-on die spacer[J]. J Prosthet Dent, 1988,60(2):180-184. doi: 10.1016/0022-3913(88)90312-5 URL
[24]	Hamza TA, Ezzat HA, El-Hossary MM , et al. Accuracy of ceramic restorations made with two CAD/CAM systems[J]. J Prosthet Dent, 2013,109(2):83-87.
[25]	Mously HA, Finkelman M, Zandparsa R , et al. Marginal and internal adaptation of ceramic crown restorations fabricated with CAD/CAM technology and the heat-press technique[J]. J Prosthet Dent, 2014,112(2):249-256.
[26]	毛菁红, 陈克南, 高勃 . 电子束熔融(EBM)技术3D打印纯钛冠的适合性研究[J]. 实用口腔医学杂志, 2016,32(2):173-177.
	Mao JH, Chen KN, Gao B . Evaluation of the fit of pure titanium crown 3D-printed by Electron beam melting (EBM) technology[J]. J Pract Stomatol, 2016,32(2):173-177.
[27]	Habib SR, Al Ajmi MG, Al Dhafyan M , et al. Effect of margin designs on the marginal adaptation of zirconia copings[J]. Acta Stomatol Croat, 2017,51(3):179-187. doi: 10.15644/asc URL
[28]	Gegauff AG, Rosenstiel SF . Reassessment of die-spacer with dynamic loading during cementation[J]. J Prosthet Dent, 1989,61(6):655-658. doi: 10.1016/S0022-3913(89)80036-8 URL
[29]	Vermilyea SG, Kuffler MJ, Huget EF . The effects of die relief agent on the retention of full coverage castings[J]. J Prosthet Dent, 1983,50(2):207-210. doi: 10.1016/0022-3913(83)90015-X URL
[30]	Worley JL, Hamm RC, von Fraunhofer JA . Effects of cement on crown retention[J]. J Prosthet Dent, 1982,48(3):289-291.
[31]	Mou SH, Chai T, Wang JS , et al. Influence of different convergence angles and tooth preparation heights on the internal adaptation of Cerec crowns[J]. J Prosthet Dent, 2002,87(3):248-255.
[32]	陈丽萍, 华楠, 葛艳 , 等. 不同牙冠高度与全冠固位力关系的实验分析[J]. 上海口腔医学, 2004,13(4):308-311.
	Chen LP, Hua N, Ge Y , et al. The experimental study of the relationship between preparation height and retention of complete crowns[J]. Shanghai J Stomatol, 2004,13(4):308-311.

高度/mm	隙料厚度/μm
高度/mm	10	30	50
1	113.25±13.43^bc	85.33±12.24^ac	57.35±10.30^ab
2	116.15±14.73^bc	92.48±12.66^ac	62.19±13.68^ab
3	123.58±14.32^bc	89.26±8.72^ac	65.31±15.55^ab

高度/mm	隙料厚度/μm
高度/mm	10	30	50
1	117.92±14.38^c	105.29±7.39^c	73.39±11.51^ab
2	121.89±14.95^c	110.80±10.52^c	74.34±13.05^ab
3	123.80±20.60^c	108.35±10.19^c	81.74±16.63^ab

高度/mm	隙料厚度/μm
高度/mm	10	30	50
1	92.71±11.92^b	47.62±11.18^ac	100.80±10.33^b
2	97.96±11.59^b	51.74±16.25^ac	101.46±13.67^b
3	98.09±7.64^b	52.35±9.45^ac	102.50±13.48^b

高度/mm	隙料厚度/μm
高度/mm	10	30	50
1	98.54±10.36^b	50.33±11.27^ac	101.05±11.73^b
2	102.56±10.91^b	48.66±10.73^ac	103.81±12.47^b
3	105.32±12.11^b	52.75±9.44^ac	102.70±15.52^b

高度/mm	隙料厚度/μm
高度/mm	10	30	50
1	93.52±12.84^c	79.09±11.81^c	133.41±19.76^ab
2	88.64±12.12^c	77.15±12.91^c	129.41±19.08^ab
3	91.75±10.76^c	79.71±12.53^c	135.09±16.85^ab

牙合龈高度和隙料厚度对计算机辅助设计/计算机辅助制作全锆冠适合性与固位力的影响

Influence of preparation height and cement space on the fit and retention of computer aided design/computer aided manufacturing zirconia crown

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 8

参考文献 32

相关文章 15

编辑推荐

Metrics

本文评价

高度/mm	固位力/N
高度/mm	10	30	50
1	76.52±9.22^bc	88.17±7.02^bc	77.25±8.69^bc
2	127.18±8.49^ac	128.64±6.76^ac	127.66±6.60.83^ac
3	154.46±8.09^ab	169.78±9.26^ab	158.28±5.24^ab

分组		断裂界面类型
高度/	隙料厚	界面	粘接剂内	树脂基牙	混合
mm	度/μm	破坏	聚破坏	内聚破坏	破坏
1	10	3	3	0	0
	30	4	2	0	0
	50	3	2	0	1
2	10	5	1	0	0
	30	3	2	0	1
	50	2	4	0	0
3	10	2	3	0	1
	30	1	3	1	1
	50	2	3	0	1
