Development of novel hydrophilic and antibacterial silicone rubber impression material for dental application

doi:10.7518/hxkq.2022.05.006

Abstract

Abstract:

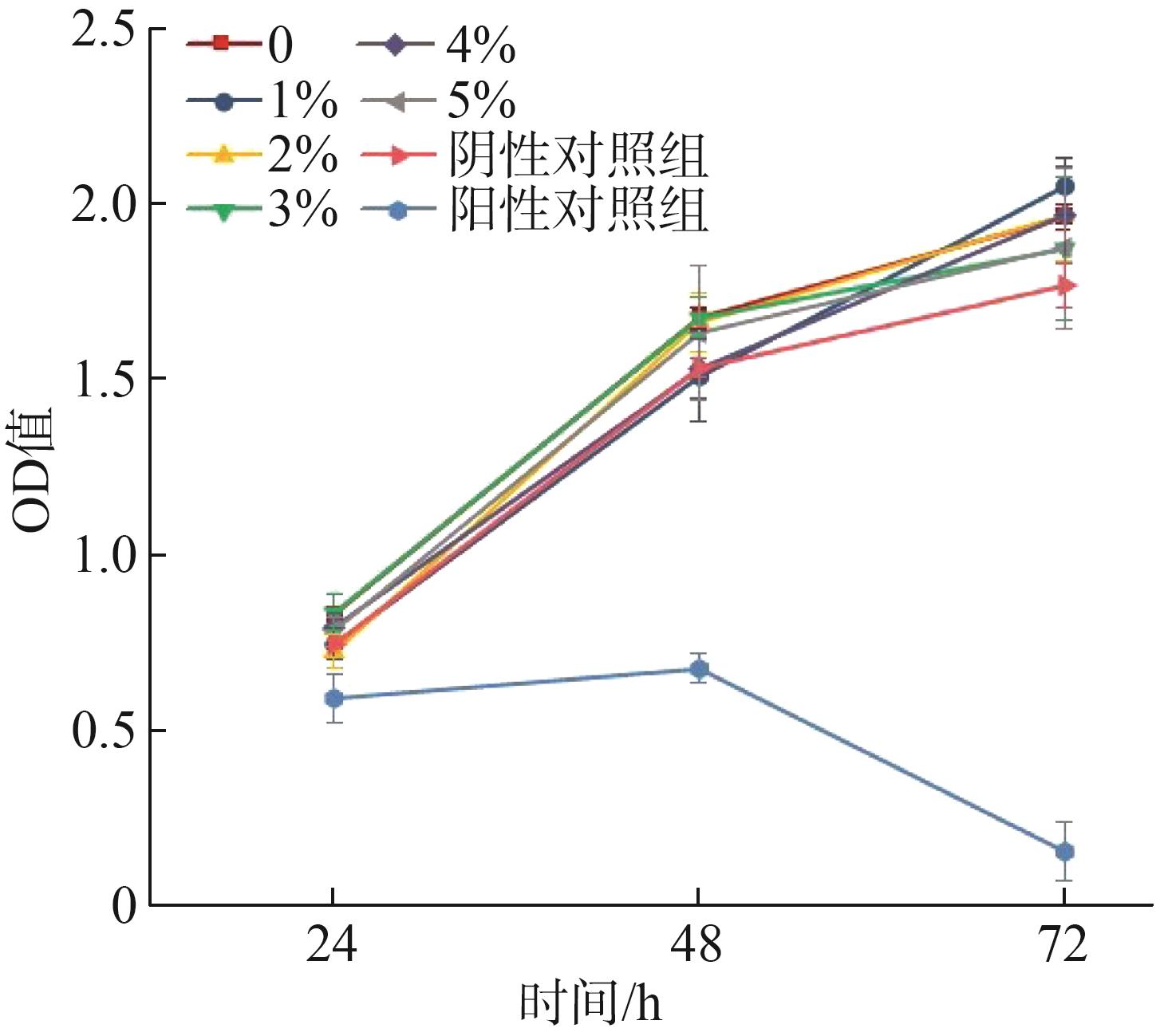

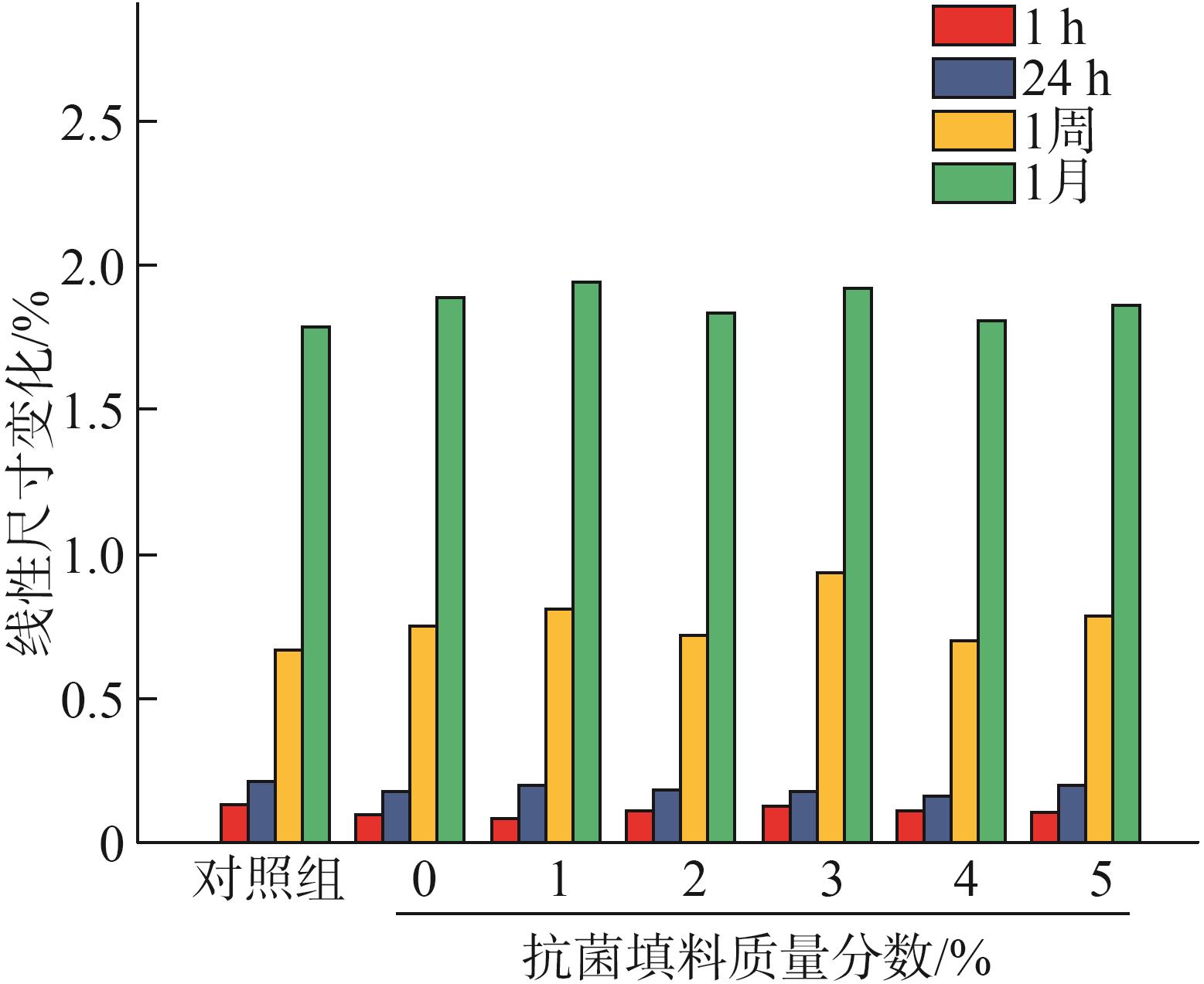

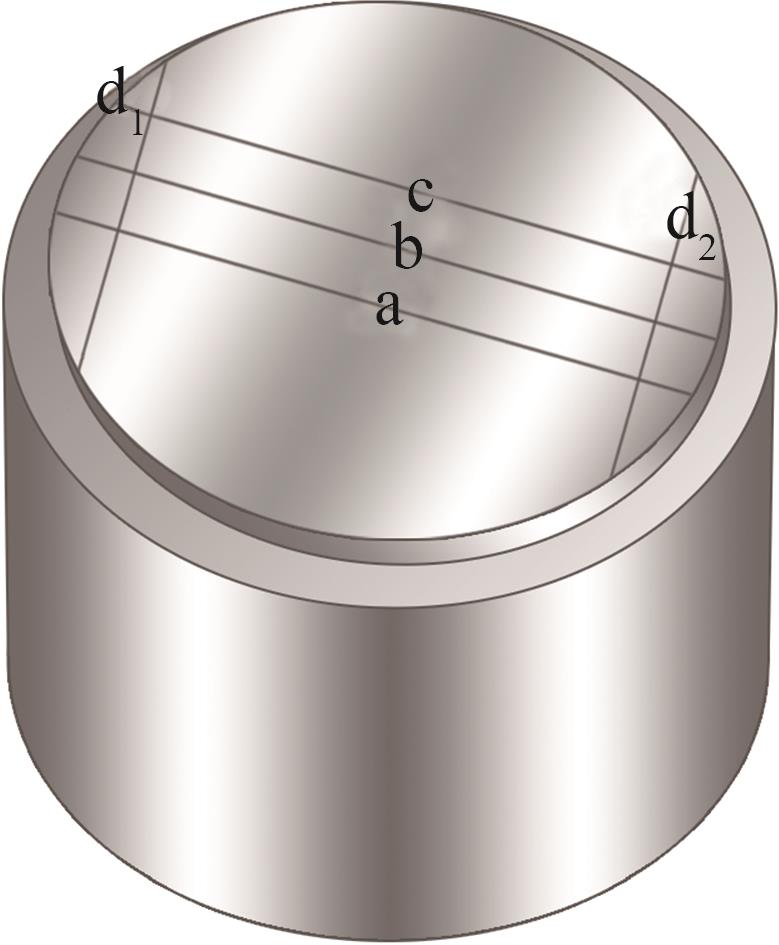

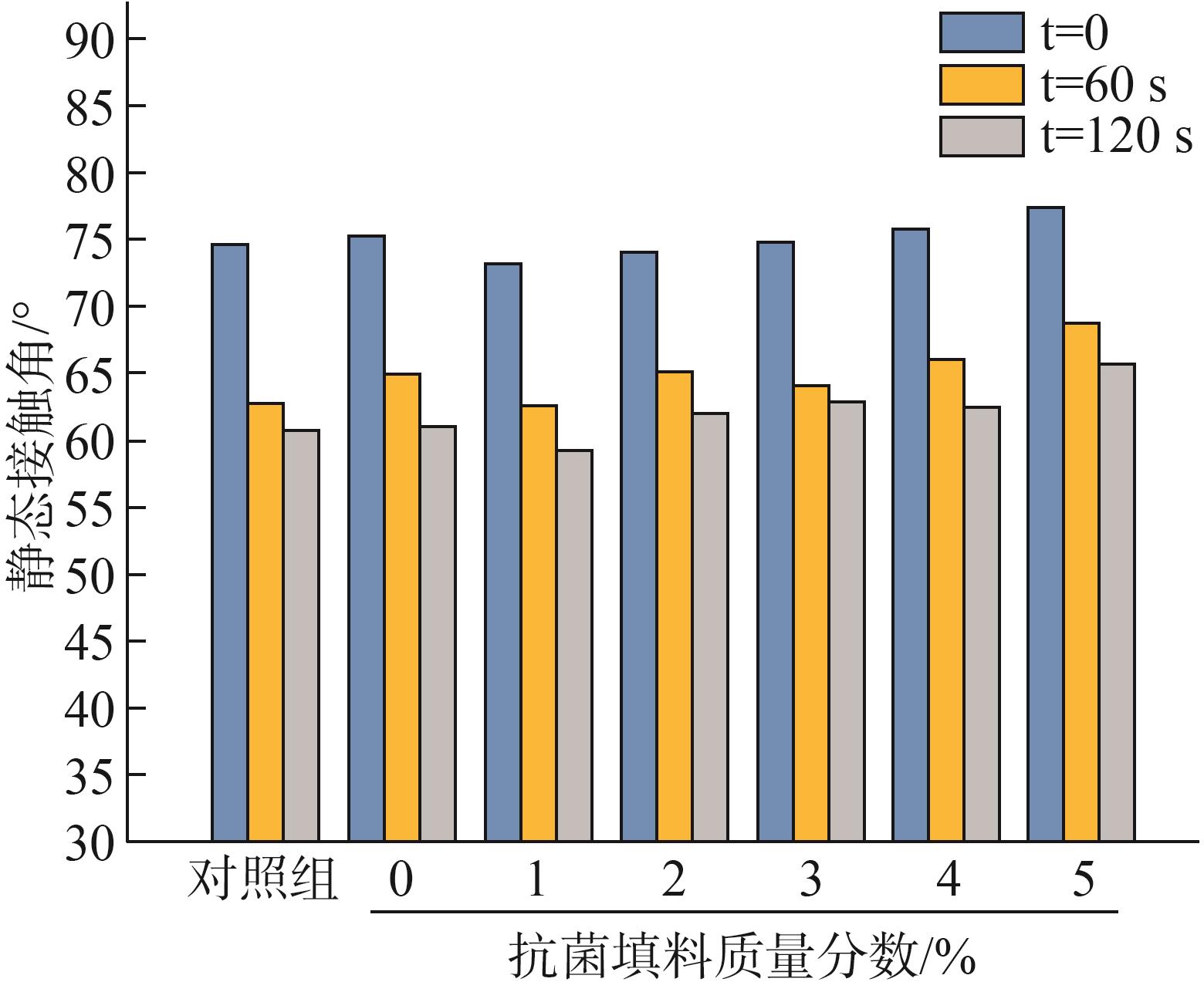

Objective This investigation aimed to develop a novel hydrophilic and antibacterial silicone rubber impression material for dental application. Methods The basic formula of the new silicone rubber was determined on a preliminary study, and 6% polyether modified silicone oil was added as wetting agent to provide the hydrophilicity. No-vel nano-antibacterial inorganic fillers containing quaternary ammonium salt with long chain alkyl were incorporated into the hydrophilic silicone rubber impression materials at a mass fraction of 0%, 1%, 2%, 3%, 4%, or 5%. A commercial silicone rubber impression material was used as control. The mechanical properties, wettability, detail reproducibility, dimensional stability, and mixing time of silicone rubber materials were measured. Thin-film adhesion method and cell counting kit-8 method were used to detect the antibacterial property and cytotoxicity. Scanning electron microscopy (SEM) was chosen to observe the micromorphology of the novel silicone rubber. Results When the content of antibacterial filler exceeded 4%, the mechanical properties of the new silicone rubber decreased significantly (P<0.05). Compared with those of the control group, the contact angle and linear size change rate of different groups had no significant change at different time nodes, and the detail reproducibility was intact (P>0.05). The addition of antibacterial fillers had no significant effect on the mixing time (P>0.05). Adding 4% antibacterial fillers could result in the antibacterial rate of 95.26%, showing good antibacterial properties. No significant difference was found in the cytotoxicity of all groups (P>0.05). The SEM pictures of the cross section of the silicone rubber sample showed that the fillers had good compatibility with the silicone rubber matrix and distributed in the matrix evenly. Conclusion A novel silicone rubber impression material containing 6% polyether modified silicone oil could obtain promising hydrophilic and antibacterial properties after being added with 4% antibacterial inorganic fillers.

Key words: silicone rubber, impression materials, hydrophilicity, antibacterial property, inorganic fillers

CLC Number:

R 783.1

Zhang Xuejiao, Li Jianxin, Jiang Feng, Zhou Chuanjian, Wu Junling. Development of novel hydrophilic and antibacterial silicone rubber impression material for dental application[J]. West China Journal of Stomatology, 2022, 40(5): 541-548.

Figures/Tables 8

Tab 1

Fig 1

Fig 2

Fig 3

Fig 4

Fig 5

Tab 2

Fig 6

References 16

1	Punj A, Bompolaki D, Garaicoa J. Dental impression materials and techniques[J]. Dent Clin North Am, 2017, 61(4): 779-796.
2	AlZain S. Effect of 0.5% glutaraldehyde disinfection on surface wettability of elastomeric impression materials[J]. Saudi Dent J, 2019, 31(1): 122-128.
3	Guiraldo RD, Berger SB, Punhagui MF, et al. Influence of chloramine-T disinfection on elastomeric impression stability[J]. Eur J Dent, 2018, 12(2): 232-236.
4	Ud Din S, Parker S, Braden M, et al. Experimental hydrophilic vinyl polysiloxane (VPS) impression materials incorporating a novel surfactant compared with commercial VPS[J]. Dent Mater, 2017, 33(8): e301-e309.
5	Lin C, Debeli DK, Gan L, et al. Polyether-modified siloxane stabilized dispersion system on the physical stability and control release of double (W/O/W) emulsions[J]. Food Chem, 2020, 332: 127381.
6	陈德英, 胡格, 周传健, 等. 含纳米抗菌无机填料树脂粘接剂的合成及相关性能研究[J]. 华西口腔医学杂志, 2018, 36(1): 46-51.
	Chen DY, Hu G, Zhou CJ, et al. Antibacterial dental adhesive containing nanoantibacterial inorganic fillers[J]. West China J Stomatol, 2018, 36(1): 46-51.
7	张雪娇. 新型亲水抗菌硅橡胶口腔印模材料的设计制备及性能研究[D]. 济南: 山东大学, 2021.
	Zhang XJ. Preparation and properties of novel hydrophilic and antibacterial silicone rubber impression material[D]. Jinan: Shandong University, 2021.
8	Schuster JM, Schvezov CE, Rosenberger MR. Influence of experimental variables on the measure of contact angle in metals using the sessile drop method[J]. Procedia Mater Sci, 2015, 8: 742-751.
9	Gu ZH, Pan Y, Wang JC. RTV mould rubber cured by plasma and surface coating technologies[J]. J Rubber Res, 2019, 22(3): 133-143.
10	Pukale DD, Bansode AS, Jadhav NL, et al. Review on silicone surfactants: silicone-based gemini surfactants, physicochemical properties and applications[J]. Tenside Surfact Det, 2019, 56(4): 268-278.
11	Mushtaq MA, Khan MWU. An overview of dental impression disinfection techniques—a literature review[J]. J Pak Dent Assoc, 2018, 27(4): 207-212.
12	Celebi H, Büyükerkmen EB, Torlak E. Disinfection of polyvinylsiloxane impression material by gaseous ozone[J]. J Prosthet Dent, 2018, 120(1): 138-143.
13	Jones IA, Joshi LT. Biocide use in the antimicrobial era: a review[J]. Molecules, 2021, 26(8): 2276.
14	Tian S, Gao W, Liu YJ, et al. Effects of surface modification Nano-SiO₂ and its combination with surfactant on interfacial tension and emulsion stability[J]. Colloids Surf A: Physicochem Eng Asp, 2020, 595: 124682.
15	Liu TA, Bai RX, Chen ZT, et al. Tailoring of polyethy-lene fiber surface by coating silane coupling agent for strain hardening cementitious composite[J]. Constr Build Mater, 2021, 278: 122263.
16	隋磊. 乙烯基聚硅氧烷口腔印模材料制备与性能研究[D]. 成都: 四川大学, 2007.
	Sui L. A research on preparation and properties of vinyl polysiloxane dental impression material[D]. Chengdu: Sichuan University, 2007.

成分	规格	份数（PHR）
乙烯基硅油	黏度5 000 mPa·s	100
含氢硅油	含氢量0.8%	6
气相白炭黑（H2000）	比表面积200 m²·g^-1，粒径12 nm	25
高岭土	1 250目	45
乙烯基MQ硅树脂	M∶Q=0.8∶1	10
铂催化剂	2.5×10^-4	4
1-乙炔基-1-环己醇	浓度2‰	0.5~1
颜料	食品级	0.3

组别	菌落数目/个	抗菌率/%
对照组	286.76±8.51^a	0
抗菌填料质量分数/% 0	274.50±9.22^a	0
1	173.17±7.49^b	36.92
2	116.17±4.26^c	57.68
3	48.83±1.77^d	82.21
4	13.00±0.82^e	95.26
5	4.67±0.47^e	98.30
H值	19.51	—
P值	<0.01	—
