Development of novel self-adhesive resin cement with antibacterial and self-healing properties

doi:10.7518/hxkq.2020.03.005

Abstract

Abstract:

Objective This study aimed to develop novel self-adhesive resin cement with antibacterial and self-healing properties. Furthermore, the dentin bonding strength, mechanical properties, self-healing efficiency, and antibacterial property of the developed cement were measured. Methods Novel nano-antibacterial inorganic fillers that contain quaternary ammonium salts with long-chain alkyls were synthesized. These fillers were added into self-adhesive resin cement containing self-healing microcapsules at mass fractions of 0, 2.5%, 5.0%, 7.5%, or 10.0%. The dentin shear bonding test was used to test the bonding strength, whereas the flexural test was used to measure the flexural strength and elastic modulus of the cement. The single-edge V-notched beam method was used to measure self-healing efficiency, and human dental plaque microcosm biofilms were chosen to calculate the antibacterial property. Results The dentin shear bond strength significantly decreased when the mass fraction of the nano-antibacterial inorganic fillers in the novel cement reached 7.5% (P<0.05). The incorporation of 0, 2.5%, 5.0%, 7.5%, or 10.0% mass fraction of nano-antibacterial inorganic fillers did not adversely affect the flexural strength, elastic modulus, fracture toughness, and self-healing efficiency of the cement (P>0.1). Resin cement containing 2.5% mass fraction or more nano-antibacterial inorganic fillers significantly inhibited the metabolic activity of dental plaque microcosm biofilms, indicating strong antibacterial potency (P<0.05). Conclusion The novel self-adhesive resin cement exhibited promising antibacterial and self-healing properties, which enable the cement to be used for dental applications.

Key words: antibacterial property, self-healing, microcapsule, self-adhesive, resin cements

CLC Number:

R783.1

Hu Ge, Zhang Xinyan, Zhao Jiaxin, Zhou Chuanjian, Wu Junling. Development of novel self-adhesive resin cement with antibacterial and self-healing properties[J]. West China Journal of Stomatology, 2020, 38(3): 256-262.

Figures/Tables 4

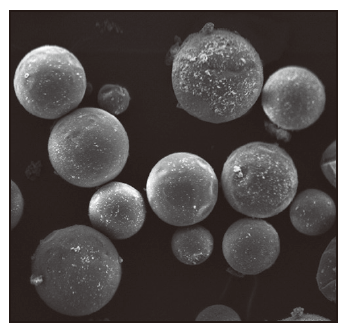

Fig 1

Tab 1

Tab 2

Tab 3

References 17

[1]	Ferracane JL, Stansbury JW, Burke FJ . Self-adhesive resin cements—chemistry, properties and clinical considerations[J]. J Oral Rehabil, 2011,38(4):295-314. doi: 10.1111/j.1365-2842.2010.02148.x URL
[2]	Spencer P, Ye Q, Park J , et al. Adhesive/dentin interface: the weak link in the composite restoration[J]. Ann Biomed Eng, 2010,38(6):1989-2003. doi: 10.1007/s10439-010-9969-6 URL
[3]	吴峻岭, 周凯运, 朱婷 , 等. 含长链烷基季铵盐的纳米抗菌无机填料的合成及其在牙科复合树脂中的应用研究[J]. 华西口腔医学杂志, 2014,32(5):513-518. doi: 10.7518/hxkq.2014.05.020 URL
	Wu JL, Zhou KY, Zhu T , et al. Synjournal of a nano-antibacterial inorganic filler containing a quaternary ammonium salt with long chain alkyl and its effect on dental resin composites[J]. West China J Stomatol, 2014,32(5):513-518.
[4]	陈德英, 胡格, 周传健 , 等. 含纳米抗菌无机填料树脂粘接剂的合成及相关性能研究[J]. 华西口腔医学杂志, 2018,36(1):46-51.
	Chen DY, Hu G, Zhou CJ , et al. Antibacterial dental adhesive containing nanoantibacterial inorganic fillers[J]. West China J Stomatol, 2018,36(1):46-51.
[5]	Wu J, Weir MD, Zhang Q , et al. Novel self-healing dental resin with microcapsules of polymerizable triethylene glycol dimethacrylate and N,N-dihydroxyethyl-p-toluidine[J]. Dent Mater, 2016,32(2):294-304.
[6]	Wu J, Zhang Q, Weir MD , et al. Novel self-healing dental luting cements with microcapsules for indirect restorations[J]. J Dent, 2017,66:76-82. doi: 10.1016/j.jdent.2017.08.006 URL
[7]	刘琨, 张惠民, 申丽丽 , 等. Nd: YAG激光对3种树脂水门汀与牙本质粘接强度的影响[J]. 华西口腔医学杂志, 2012,30(5):509-513. doi: 10.3969/j.issn.1000-1182.2012.05.014 URL
	Liu K, Zhang HM, Shen LL , et al. Effect of Nd: YAG laser on the bond strength of 3 resin cements to dentin[J]. West China J Stomatol, 2012,30(5):509-513.
[8]	Zhu DY, Rong MZ, Zhang MQ . Self-healing polymeric materials based on microencapsulated healing agents: from design to preparation[J]. Prog Polym Sci, 2015, 49- 50:175-220. doi: 10.1016/j.progpolymsci.2015.07.002 URL
[9]	White SR, Sottos NR, Geubelle PH , et al. Autonomic healing of polymer composites[J]. Nature, 2001,409(6822):794-797.
[10]	Wertzberger BE, Steere JT, Pfeifer RM , et al. Physical characterization of a self-healing dental restorative material[J]. J Appl Polym Sci, 2010,118(1):428-434.
[11]	Wu J, Weir MD, Melo MA , et al. Effects of water-aging on self-healing dental composite containing microcapsules[J]. J Dent, 2016,47:86-93.
[12]	Yue S, Wu J, Zhang Q , et al. Novel dental adhesive resin with crack self-healing, antimicrobial and remineralization properties[J]. J Dent, 2018,75:48-57. doi: 10.1016/j.jdent.2018.05.009 URL
[13]	Manso AP, Silva NR, Bonfante EA , et al. Cements and adhesives for all-ceramic restorations[J]. Dent Clin North Am, 2011, 55(2): 311-332, ix. doi: 10.1016/j.cden.2011.01.011 URL
[14]	Zhang Y, Chen Y, Hu Y , et al. Quaternary ammonium compounds in dental restorative materials[J]. Dent Mater J, 2018,37(2):183-191. doi: 10.4012/dmj.2017-096 URL
[15]	Imazato S, Torii M, Tsuchitani Y , et al. Incorporation of bacterial inhibitor into resin composite[J]. J Dent Res, 1994,73(8):1437-1443. doi: 10.1177/00220345940730080701 URL
[16]	Zhang N, Weir MD, Chen C , et al. Orthodontic cement with protein-repellent and antibacterial properties and the release of calcium and phosphate ions[J]. J Dent, 2016,50:51-59.
[17]	Murata H, Koepsel RR, Matyjaszewski K , et al. Permanent, non-leaching antibacterial surface—2: how high density cationic surfaces kill bacterial cells[J]. Biomaterials, 2007,28(32):4870-4879.

组别	粘接强度/MPa	弯曲强度/MPa	弹性模量/GPa
0	7.8±1.0^a	108.8±16.8^a	5.7±0.9^a
2.5%	7.4±1.3^a	102.6±17.1^a	5.2±1.0^a
5.0%	7.7±1.2^a	107.9±17.1^a	5.4±1.0^a
7.5%	5.7±1.1^b	100.8±16.8^a	5.5±1.1^a
10.0%	5.3±1.0^b	104.5±16.6^a	4.9±0.8^a
F值	5.5	0.4	0.8
P值	<0.05	>0.1	>0.1

组别	原始断裂韧度/	自修复后断裂韧度/	自修复效率/%
组别	（MPa·m^1/2）	（MPa·m^1/2）	自修复效率/%
0	1.1±0.2^a	0.8±0.2^a	69.9±11.2^a
2.5%	1.0±0.2^a	0.7±0.1^a	71.9±14.0^a
5.0%	1.1±0.2^a	0.7±0.1^a	68.2±11.4^a
7.5%	1.0±0.2^a	0.8±0.1^a	73.9±12.0^a
10.0%	1.1±0.2^a	0.7±0.1^a	68.4±11.7^a
F值	0.1	0.1	0.2
P值	>0.1	>0.1	>0.1

组别	CFU			乳酸量/（mmol·L^-1）
组别	全菌落	总链球菌	变异链球菌	乳酸量/（mmol·L^-1）
0	（5.5±1.1）×10⁹*	（5.3±0.8）×10⁸*	（5.3±1.0）×10⁷*	24.10±4.76*
2.5%	（5.1±0.9）×10^6#	（5.4±0.9）×10^5#	（5.4±1.0）×10^3#	0.24±0.04^#
5.0%	（5.5±1.0）×10^6#	（5.7±1.0）×10^5#	（5.7±0.9）×10^3#	0.22±0.03^#
7.5%	（5.7±1.1）×10^6#	（5.5±1.0）×10^5#	（5.9±1.1）×10^3#	0.22±0.04^#
10.0%	（5.9±1.0）×10^6#	（5.5±1.1）×10^5#	（5.8±1.0）×10^3#	0.27±0.05^#
F值	153.9	239.7	178.4	151.0
P值	<0.05	<0.05	<0.05	<0.05
