3D打印种植导板在前牙区不同术式的精度比较

doi:10.7518/hxkq.2019.04.012

华西口腔医学杂志 ›› 2019, Vol. 37 ›› Issue (4): 403-407.doi: 10.7518/hxkq.2019.04.012

3D打印种植导板在前牙区不同术式的精度比较

蒋晔,张志宏(),刘红红,周航天,芮茜,张莹莹

安徽医科大学附属省立医院口腔医学中心,合肥 230000

收稿日期:2019-01-05 修回日期:2019-04-02 出版日期:2019-08-01 发布日期:2019-08-23
通讯作者: 张志宏 E-mail:zzhzqr@126.com
作者简介:蒋晔,住院医师,硕士,E-mail：18656352310@163.com
基金资助:
2018年度安徽省中央引导地方科技发展专项项目(81571008)

Comparative study of 3D printing implant guide in different implant surgeries in anterior tooth defect area

Ye Jiang,Zhihong Zhang(),Honghong Liu,Hangtian Zhou,Xi Rui,Yingying Zhang

Stomatological Center of Anhui Provincial Hospital Affiliated to Anhui Medical University, Hefei 230000, China

Received:2019-01-05 Revised:2019-04-02 Online:2019-08-01 Published:2019-08-23
Contact: Zhihong Zhang E-mail:zzhzqr@126.com
Supported by:
Anhui Provincial 2018 Central Government Guided Local Science and Technology Development Special Pro?ject(81571008)

摘要/Abstract

摘要：

目的比较3D打印种植导板引导前牙牙种植在不同术式下的精度。方法选择21例（32个牙位）牙缺失患者,制作仿真翻瓣与不翻瓣颌骨模型,分为翻瓣组（FP组）与不翻瓣组（FPS组）,分别设计制作牙种植导板,比较两组牙种植体实际位置与术前规划在顶端、底端、垂直向距离的偏差值和角度偏差值。采用SPSS 19.0软件对数据进行统计学分析。结果 FPS组与FP组种植体顶端、底端、垂直向距离偏差值和角度偏差值的差异均有统计学意义（P<0.05）;与FPS组相比,FP组偏差值更小,精度更高。结论 3D打印种植导板可提高牙种植的精确性,翻瓣与不翻瓣的不同术式对牙种植精度有一定的影响,临床医生可根据实际情况合理选择术式。

关键词: 3D打印, 种植导板, 翻瓣, 偏差

Abstract:

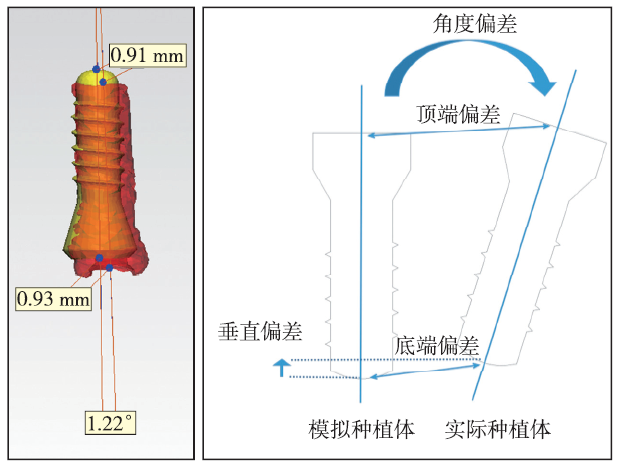

Objective To study the accuracy of 3D printing implant-guided anterior tooth implantation under flap or flapless surgery. Methods Twenty-one cases (32 teeth) with missing teeth were divided into two groups: tooth implantation on the maxillary models under flap surgery (FP group) and tooth implantation on the maxillary models under flapless surgery (FPS group). A dental implant guide was designed and used in the two groups. The actual position of the dental implants in the two groups was compared with the preplanned deviation values of implant top, bottom, vertical distance, and angle deviation. SPSS 19.0 software was used for statistical analysis. Results The deviation values of implant top, bottom, vertical distance, and angle were significantly lower in the FP group than in the FPS group (P<0.05). Conclusion High accuracy of tooth implantation can be realized by using the 3D printing implant guide. The different surgical methods influence the precision of tooth implantation. Clinicians can choose the surgery reasonably depending on the actual situation.

Key words: 3D printing, implant guide, flap surgery, deviation value

中图分类号:

R783.6

蒋晔,张志宏,刘红红,周航天,芮茜,张莹莹. 3D打印种植导板在前牙区不同术式的精度比较[J]. 华西口腔医学杂志, 2019, 37(4): 403-407.

Ye Jiang,Zhihong Zhang,Honghong Liu,Hangtian Zhou,Xi Rui,Yingying Zhang. Comparative study of 3D printing implant guide in different implant surgeries in anterior tooth defect area[J]. West China Journal of Stomatology, 2019, 37(4): 403-407.

图/表 5

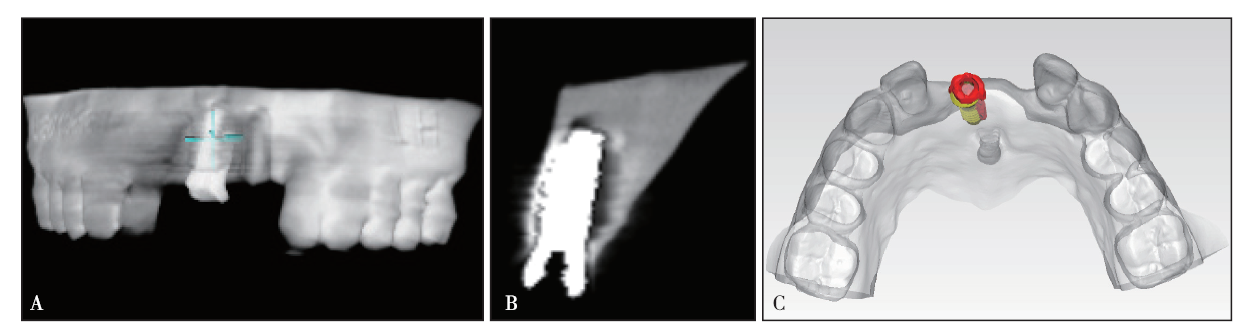

图 1

图 2

图 3

图 4

表 1

参考文献 17

[1]	岳嵌, 胡秀莲, 林野 , 等. 上颌前牙翻瓣与不翻瓣即刻种植修复临床效果比较研究[J]. 中国实用口腔科杂志, 2015,8(7):410-414.
	Yue Q, Hu XL, Lin Y , et al. Study on clinical effectiveness between flap and flapless immediate implant placement in maxillary esthetic zone[J]. Chin J Pract Stomatol, 2015,8(7):410-414.
[2]	Brodala N . Flapless surgery and its effect on dental implant outcomes[J]. Int J Oral Maxillofac Implants, 2009,24(Suppl):118-125.
[3]	D’haese J, Ackhurst J, Wismeijer D , et al. Current state of the art of computer-guided implant surgery[J]. Periodontology 2000, 2017,73(1):121-133.
[4]	张健豪, 王燮辞, 武文芳 . 3D打印技术在医学中的应用[J]. 医学教育管理, 2017,3(4):323-326.
	Zhang JH, Wang XC, Wu WF . Application of 3D printing technology in medical science[J]. Med Edu Manag, 2017,3(4):323-326.
[5]	Chen ST, Darby I . The relationship between facial bone wall defects and dimensional alterations of the ridge following flapless tooth extraction in the anterior maxilla[J]. Clin Oral Implants Res, 2017,28(8):931-937.
[6]	李佳珊, 陶玉飞, 萧文彦 , 等. 上下颌前牙区三维牙槽骨厚度的锥形束CT分析[J]. 口腔医学研究, 2018,34(4):397-400.
	Li JS, Tao YF, Xiao WY , et al. Three dimensional alveolar bone thicknesses in maxillary and mandibular anterior region via cone beam CT[J]. J Oral Sci Res, 2018,34(4):397-400.
[7]	林华荣, 钱三楼, 温兴涛 , 等. 上颌前牙翻瓣与不翻瓣即刻牙种植术对患者口腔内软硬组织的影响对比[J]. 中国口腔种植学杂志, 2015,20(1):1-3.
	Lin HR, Qian SL, Wen XT , et al. Maxillary anterior teeth turned contrast flap and the effect of flapless immediate implant on patients with oral soft tissue[J]. Chin J Oral Implantol, 2015,20(1):1-3.
[8]	刘金, 蒲必双, 夏玉兰 , 等. 上颌前牙倾斜角度对种植治疗设计的影响[J]. 华西口腔医学杂志, 2016,34(6):611-616. doi: 10.7518/hxkq.2016.06.012
	Liu J, Pu BS, Xia YL , et al. The influence of angulation of maxillary anterior teeth on treatment design of dental implants[J]. West China J Stomatol, 2016,34(6):611-616. doi: 10.7518/hxkq.2016.06.012
[9]	Tahmaseb A, Wismeijer D, Coucke W , et al. Computer technology applications in surgical implant dentistry: a systematic review[J]. Int J Oral Maxillofac Implants, 2014,29(Suppl):25-42.
[10]	张彩美, 徐世同 . 影响上颌前牙区即刻种植美学效果的相关因素[J]. 广东牙病防治, 2015,23(5):277-280.
	Zhang CM, Xu ST . Research progress of aesthetic effects of immediate implant on the maxillary anterior teeth[J]. J Dent Prevent Treat, 2015,23(5):277-280.
[11]	Choi W, Nguyen BC, Doan A , et al. Freehand versus guided surgery: factors influencing accuracy of dental implant placement[J]. Implant Dent, 2017,26(4):500-509.
[12]	Vermeulen J . The accuracy of implant placement by experienced surgeons: guided vs freehand approach in a simulated plastic model[J]. Int J Oral Maxillofac Implants, 2017,32(3):617-624.
[13]	Raico Gallardo YN, da Silva-Olivio IRT, Mukai E , et al. Accuracy comparison of guided surgery for dental implants according to the tissue of support: a systematic review and meta-analysis[J]. Clin Oral Implants Res, 2017,28(5):602-612.
[14]	胡洪成, 卢松鹤 . 3D打印技术在口腔医学应用的国内外现状和趋势[J]. 中国医疗器械信息, 2017,23(3):6-10, 21.
	Hu HC, Lu SH . The current situation and prospects of 3D printing technology in stomatology at home and abroad[J]. Chin Med Dev Inf, 2017,23(3):6-10, 21.
[15]	唐天弘, 宋萌, 钮晓勇 , 等. Simplant软件在下颌后牙种植术中的应用[J]. 上海口腔医学, 2016,25(4):484-486.
	Tang TH, Song M, Niu XY , et al. Preliminary study of Simplant software in mandibular molar implantation[J]. Shanghai J Stomatol, 2016,25(4):484-486.
[16]	Van Assche N, Vercruyssen M, Coucke W , et al. Accuracy of computer-aided implant placement[J]. Clin Oral Implants Res, 2012,23(Suppl 6):112-123.
[17]	Moon SY, Lee KR, Kim SG , et al. Clinical problems of computer-guided implant surgery[J]. Maxillofac Plast Reconstr Surg, 2016,38(1):15.

测量项目	FP组	FPS组	t值	P值
顶端偏差/mm	0.94±0.13	2.72±0.09	-21.32	<0.05
底端偏差/mm	1.45±0.16	3.04±0.12	-17.79	<0.05
垂直向偏差/mm	1.08±0.12	2.72±0.12	-21.87	<0.05
整体距离偏差/mm	1.16±0.14	2.83±0.14	-36.13	<0.05
角度偏差/°	3.33±0.50	4.88±0.24	-36.13	<0.05
