微波烧结与常规烧结对牙科用氧化锆摩擦磨损性能的影响

doi:10.7518/hxkq.2017.02.008

华西口腔医学杂志 ›› 2017, Vol. 35 ›› Issue (2): 150-154.doi: 10.7518/hxkq.2017.02.008

微波烧结与常规烧结对牙科用氧化锆摩擦磨损性能的影响

胡国新¹(), 杨瑛²(), 江月梅³, 夏文静²

1.南昌大学抚州医学院,抚州 344000
2.南昌大学附属口腔医院修复一科,南昌 330006
3.九江学院附属口腔医院修复科,九江 332000

收稿日期:2016-09-29 修回日期:2016-12-16 出版日期:2017-04-01 发布日期:2017-04-01
作者简介:
胡国新,硕士,E-mail：1131085280@qq.com

Study on friction and wear properties of dental zirconia ceramics processed by microwave and conventional sintering methods

Guoxin Hu¹(), Ying Yang²(), Yuemei Jiang³, Wenjing Xia²

1. Fuzhou Medical College, Nanchang University, Fuzhou 344000, China
2. Dept. of Prosthodontics, Affiliated Stomatological Hospital of Nanchang University, Nanchang 330006, China
3. Dept. of Prosthodontics, Affiliated Stomatological Hospital of Jiujiang University, Jiujiang 332000, China

Received:2016-09-29 Revised:2016-12-16 Online:2017-04-01 Published:2017-04-01

摘要/Abstract

摘要：

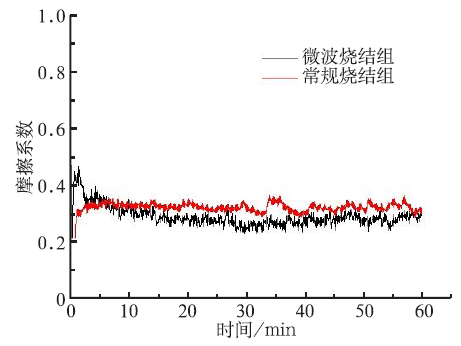

目的采用微波烧结与常规烧结牙科用氧化锆与滑石瓷进行摩擦磨损实验,探讨其摩擦磨损性能及对磨物的磨耗程度。方法选取Lava品牌氧化锆试件10个,随机分为微波烧结组和常规烧结组。使用粗糙度轮廓仪测量氧化锆表面粗糙度;以滑石瓷球为对磨物进行磨损实验,记录摩擦系数曲线,计算磨损体积;采用光学显微镜观察氧化锆和滑石瓷球的磨损形貌,场发射扫描电子显微镜（SEM）观察氧化锆显微结构。结果微波烧结和常规烧结氧化锆磨损量依次为（6.940±1.382）×10^-2、（7.952±1.815）×10^-2 mm³,对磨滑石瓷磨损体积依次为（14.189±4.745）×10^-2、（15.813±3.481）×10^﹣2 mm³,两种烧结方式氧化锆耐磨性及造成对磨物磨损量差异均无统计学意义。光学电镜显示氧化锆可见明显的犁沟;对磨滑石瓷可见裂纹,同时伴有犁沟。SEM显示两种烧结方式氧化锆均已致密烧结,微波烧结氧化锆晶粒更加细小均匀。结论两种烧结方式氧化锆摩擦磨损性能接近。

关键词: 氧化锆, 磨损, 微波烧结, 常规烧结

Abstract:

Objective This study evaluated the wear of an antagonist and friction and wear properties of dental zirconia ceramic that was subjected to microwave and conventional sintering methods. Methods Ten specimens were fabricated from Lava brand zirconia and randomly assigned to microwave and conventional sintering groups. A profile tester for surface rough-ness was used to measure roughness of the specimens. Wear test was performed, and steatite ceramic was used as antagonist. Friction coefficient curves were recorded, and wear volume were calculated. Finally, optical microscope was used to observe the surface morphology of zirconia and steatite ceramics. Field emission scanning electron microscopy was used to observe the microstructure of zirconia. Results Wear volumes of microwave and conventionally sintered zirconia were (6.940±1.382)×10^-2, (7.952±1.815) ×10^-2 mm³, respectively. Moreover, wear volumes of antagonist after sintering by the considered methods were (14.189±4.745)×10^-2, (15.813±3.481)×10^-2 mm³, correspondingly. Statistically significant difference was not observed in the wear resistance of zirconia and wear volume of steatite ceramic upon exposure to two kinds of sintering methods. Optical microscopy showed that ploughed surfaces were apparent in zirconia. The wear surface of steatite ceramic against had craze, accompanied by plough. Scanning electron microscopy showed that zirconia was sintered compactly when subjected to both conventional sintering and microwave methods, whereas grains of zirconia sintered by microwave alone were smaller and more uniform. Conclusion Two kinds of sintering methods are successfully used to produce dental zirconia ceramics with similar friction and wear properties.

Key words: zirconia, wear, microwave sintering, conventional sintering

中图分类号:

R783.2

胡国新, 杨瑛, 江月梅, 夏文静. 微波烧结与常规烧结对牙科用氧化锆摩擦磨损性能的影响[J]. 华西口腔医学杂志, 2017, 35(2): 150-154.

Guoxin Hu, Ying Yang, Yuemei Jiang, Wenjing Xia. Study on friction and wear properties of dental zirconia ceramics processed by microwave and conventional sintering methods[J]. West China Journal of Stomatology, 2017, 35(2): 150-154.

图/表 3

参考文献 16

[1]	Preis V, Behr M, Kolbeck C, et al.Wear performance of substructure ceramics and veneering porcelains[J]. Dent Mater, 2011, 27(8):796-804.
[2]	Stober T, Bermejo JL, Rammelsberg P, et al.Enamel wear caused by monolithic zirconia crowns after 6 months of cli-nical use[J]. J Oral Rehabil, 2014, 41(4):314-322.
[3]	Kim MJ, Ahn JS, Kim JH, et al.Effects of the sintering con-ditions of dental zirconia ceramics on the grain size and trans-lucency[J]. J Adv Prosthodont, 2013, 5(2):161-166.
[4]	江月梅, 杨瑛, 詹文辉, 等. 微波烧结和常规烧结对牙科用氧化锆半透性影响的对比研究[J]. 华西口腔医学杂志, 2015, 33(6):642-645.
	Jiang YM, Yang Y, Zhan WH, et al.Translucency of dental zirconia ceramics sintered in conventional and microwave ovens[J]. West Chin J Stomatol, 2015, 33(6):642-645.
[5]	Almazdi AA, Khajah HM, Monaco EA Jr, et al.Applying microwave technology to sintering dental zirconia[J]. J Pros-thet Dent, 2012, 108(5):304-309.
[6]	Marinis A, Aquilino SA, Lund PS, et al.Fracture toughness of yttria-stabilized zirconia sintered in conventional and microwave ovens[J]. J Prosthet Dent, 2013, 109(3):165-171.
[7]	ASTM E-112. Standard test methods for determining ave-rage grain size[S]. 2004.
[8]	Wassell RW, McCabe JF, Walls AW. Wear characteristics in a two-body wear test[J]. Dent Mater, 1994, 10(4):269-274.
[9]	马军萍, 姚月玲, 宋应亮, 等. 牙釉质与5种牙用烤瓷材料间磨耗性能测试研究[J]. 实用口腔医学杂志, 2001, 17(3):206-208.
	Ma JP, Yao YL, Song YL, et al.Weariness of enamel op-posing to dental porcelains[J]. J Pract Stomatol, 2001, 17(3):206-208.
[10]	Hahnel S, Behr M, Handel G, et al.Two-body wear of arti-ficial acrylic and composite resin teeth in relation to anta-gonist material[J]. J Prosthet Dent, 2009, 101(4):269-278.
[11]	张茜, 张佩, 郭天文. 六种常用冠修复材料的摩擦磨耗性能比较[J]. 中华口腔医学杂志, 2012, 47(1):204-209.
	Zhang Q, Zhang P, Guo TW.Friction and wear properties of enamel opposing to dental materials used in dentistry[J]. Chin J Stomatol, 2012, 47(1):204-209.
[12]	Ghazal M, Kern M.The influence of antagonistic surface roughness on the wear of human enamel and nanofilled com-posite resin artificial teeth[J]. J Prosthet Dent, 2009, 101(5):342-349.
[13]	Yang CCT, Wei WCJ.Effects of material properties and testing parameters on wear properties of fine-grain zirconia (TZP)[J]. Wear, 2000, 242(1/2):97-104.
[14]	He Y, Winnubst L, Burggraaf AJ, et al.Grain-size dependence of sliding wear in tetragonal zirconia polycrystals[J]. J Am Ceram Soc, 1996, 79(12):3090-3096.
[15]	周振君, 郭艳杰, 杨正方. 四方氧化锆多晶/氧化铝(板晶)复相陶瓷的摩擦磨损性能研究[J]. 摩擦学学报, 2007, 27(2):166-171.
	Zhou ZJ, Guo YJ, Yang ZF.The research of friction and wear behaviour of Y-ZTP platelet alumina composite[J]. Tribology, 2007, 27(2):166-171.
[16]	宋海燕, 卢燃, 司文捷, 等. 两种不同氧化钇含量的牙科氧化锆瓷与牙釉质的摩擦磨损性能[J]. 口腔颌面修复学杂志, 2014, 15(3):155-159.
	Song HY, Lu R, Si WJ, et al.Friction and wear behaviours of two kind of dental zirconia ceramics with different level of Y2O3 against enamel[J]. Chin J Prosthodont, 2014, 15(3):155-159.
